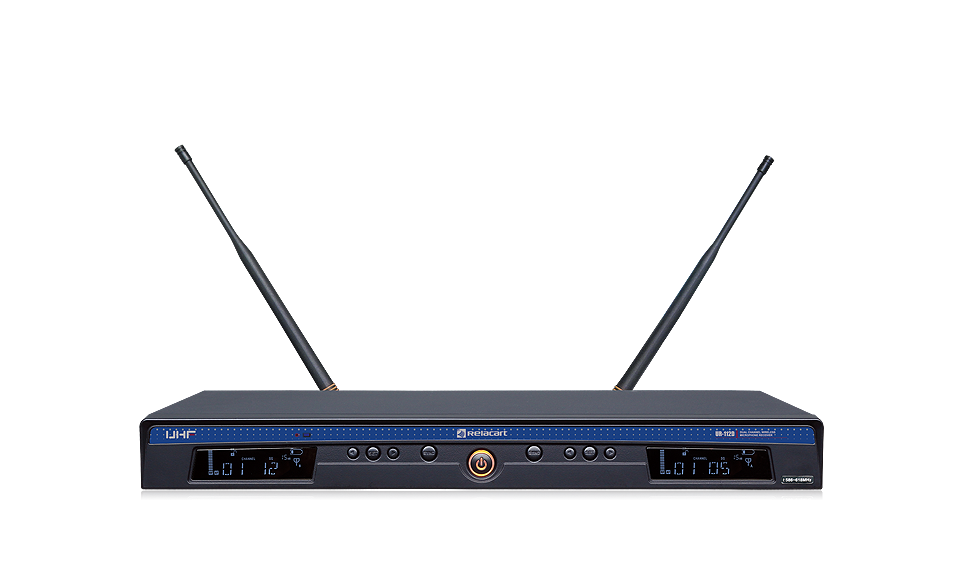

UR-112D

Dual-Channel True Diversity Wireless Microphone System

Product Description

UR-112D series is a dual-channel true diversity wireless microphone, true diversity receiving mode is more stable, automatic signal selection, eliminating receiving dead angle, to avoid the phenomenon of frequency drop. This series is specially designed for singing, with wide frequency response, rich sound quality, roundness and fullness, and powerful vocal expression. Cordioid directional sound pick-up, high sensitivity, while reducing environmental noise pick-up, high fidelity timbre, suitable for karaoke, bars, nightclubs, clubs, and small to medium size performance.

Performance Introduction

Generality

134MHz broadband transmitter, the machines of four different frequency bands can be used interchangeably at will, which is convenient for debugging and management.


IR Infrared Pairing

With [IR] infrared automatic frequency matching function, as long as the [SYNC] button is pressed, the transmitter can automatically and accurately lock the working frequency of the receiver.


Ultra Wide Bandwidth

Ultra-wide frequency band UHF 522MHz~936 MHz, automatic frequency selection, CPU smart antenna diversity reception: 32 adjustable frequency points per channel, 64 adjustable frequency points in total for two channels, a total of 24 frequency bands can provide 768 adjustable frequency points for users to choose.


Anti-Interference

The stable PLL phase-locked oscillation circuit, combined with the "noise detection" mute control function, can effectively block the noise and radio frequency interference in the working environment.


Environmental Protection and Energy Conservation

Precise low-power circuit design makes the battery life twice as long as that of ordinary microphones.


[AFS] Automatic Frequency Search

With [AFS] automatic search channel function, after pressing the [AFS] key for seconds, it will automatically search and lock on an undisturbed working channel.

Technical Specifications

Main Frame Size:EIA standard 1U


Channels:Dual Chnnel


Frequency Stability:±0.005%(-10℃~50℃)


Carrier Frequency Range:UHF 521.25MHz-936.85MHz


Modulation Mode:FM


Oscillation:PLL synthesized


Sensitivity:6dBμV, S/N>60dB at 25 deviation


Band Width:32MHz


Max Deviation Range:±45KHz


S/N:>100dB


T.H.D:<0.5%@1KHz


Frequency Response:63Hz-18KHz  ±3dB


Operating Range:80M typical(in open space)


Power Supply:DC 12V/7W


Weight:Approximately 1.8kg


Dimension(mm):410(W)x43(H)x206(D)

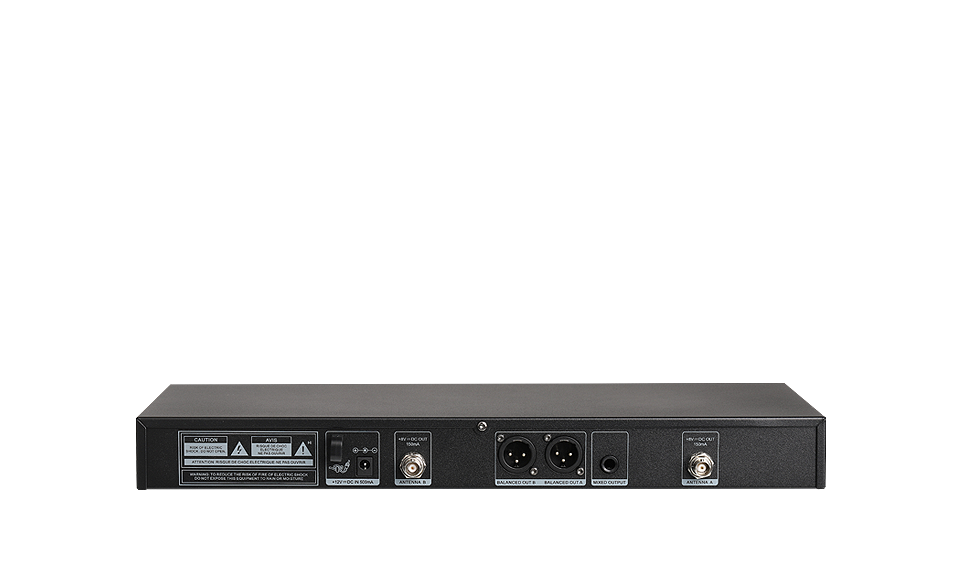

Output socket:XLR balanced & 6.3 unbalanced
