SM2

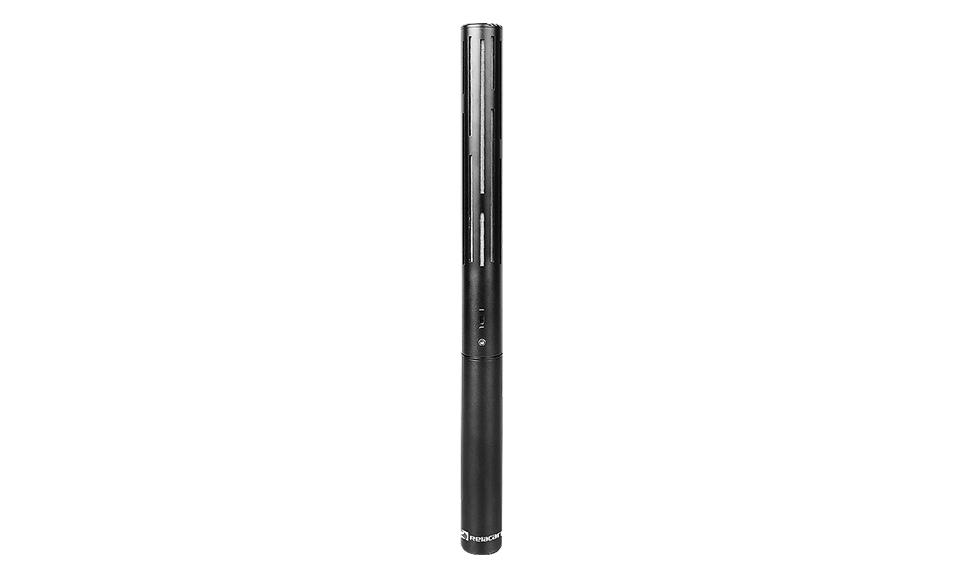

Shotgun Condenser Microphone SM2

Product Description

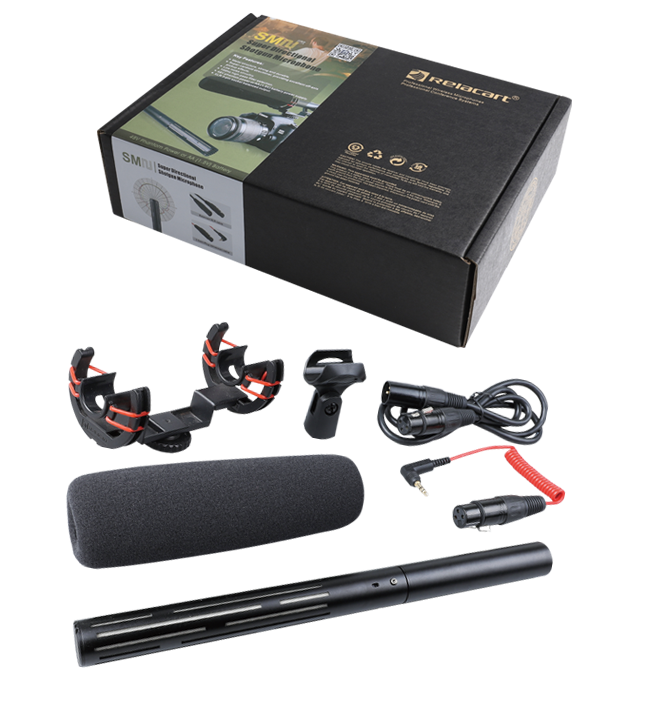

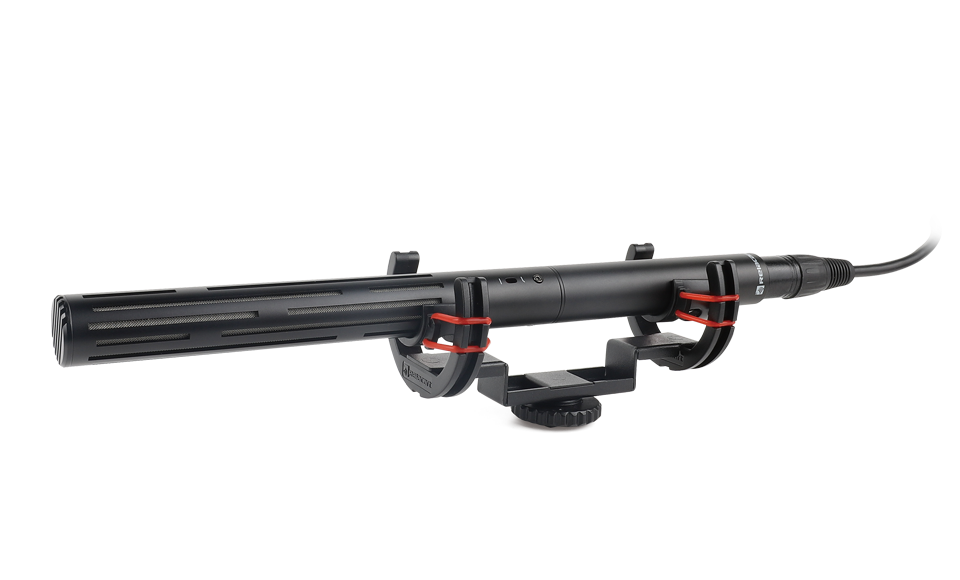

SM-2 is a shotgun condenser microphone specially designed for photography, interviews and recording. Adopts sound pickup interference principle and long sound collecting pipe design, It can provide high sensitivity and super-cardioid directional characteristics, resist radio frequency interference effectively and pickup more clear vocal sound. SM-2 built-in a 100Hz high-pass filter, which can prevent low-frequency noise effectively such as air conditioning and other environmental noises from being recorded. It can be powered by AA (1.5V) batteries or 48V phantom power for professional audio recorders, cameras and power supplies. Equipped with an anti-vibration frame, which can reduce the hard noise caused by the vibration of the equipment during photography and interview recording, and the attached windshield can minimize the slight wind and popping noise during the recording process.

Performance Introduction

Lightweight All-metal

Metal structure, strong and durable.

Multiple power options

48V phantom power or AA (1.5V) battery power.

High-pass Filter

100Hz high pass filter selection.

Ultra-low noise circuit

The circuit has low noise and clean recording.

Super-Cardioid

Super-cardioid directional, providing high-quality recording effects.

XLR Output

XLR 3-pin socket input and output.

Technical Specifications

Microphone type:  condenser microphone

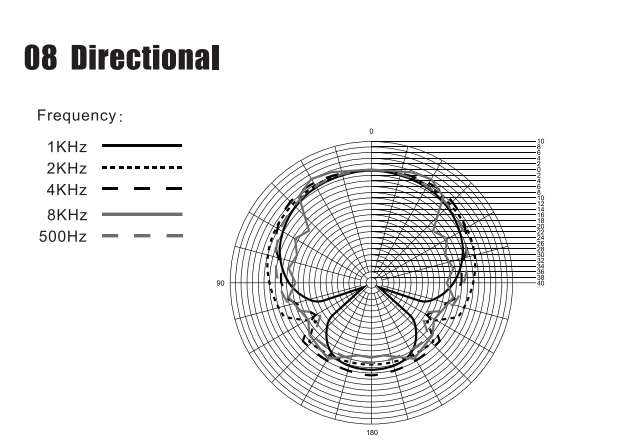

Directivity: super cardioid

Frequency response: 50Hz-20KHz

Output impedance: 350Ω

Maximum input sound pressure level: 130 dB SPL, 1KHz@1%THD

Signal to noise ratio: 105dB (A weighted), 1KHz@1%THD

Dynamic range: >110dB

Sensitivity: -51 dB@1V at 1Pa

Switch: Through/High Pass Filter

Length: 280mm

Weight: 110g
