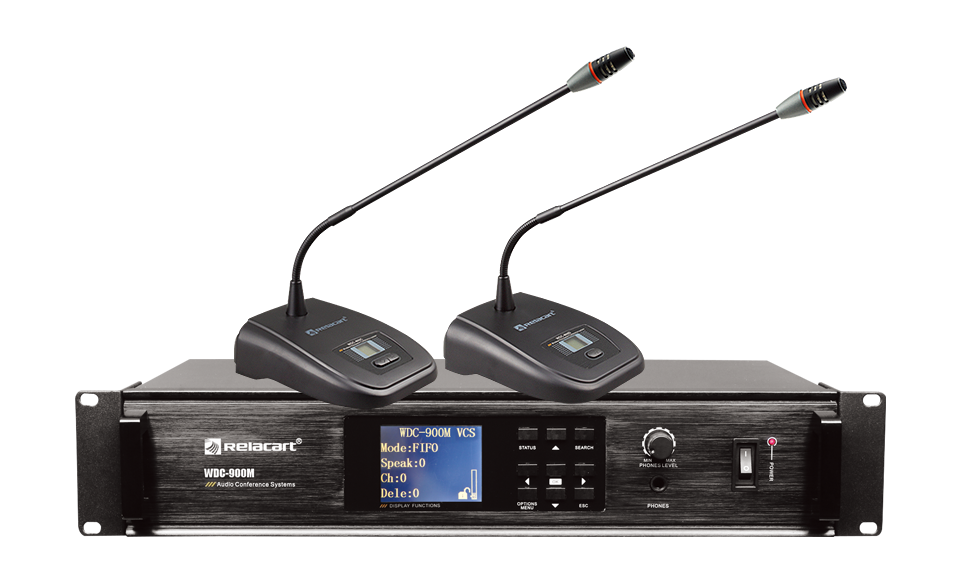

WDC-900

Digital and Wireless Conference Discussion Systems

Relacart launched the wireless conference discussion system WDC-900, which has professional appearance design, circuit structure and stable functional characteristics. Modern high tech conference. This wireless conference discussion system is fully applicable to local government departments, corporate conference rooms, business venues and international conference centers.

Inquire Now

WDC-900

Product Description Performance Introduction Technical Specifications

Product Description

Performance Introduction

Chassis size: EIA standard 2U
Power supply: 110-220V AC 50/60Hz
Audio carrier frequency range: UHF521.25MHz-936.85MHz
Maximum power consumption: 60W
Data wave frequency range: 2400 MHz-2500 MHz
Bandwidth:

Band: HF 139MHz (797MHz~936MHz)

Band: AD 134MHz (662MHz~796MHz)

Band: EJ 97MHz (554MHz~651MHz)

Modulation method: FM
Frequency Response: 65Hz-18KHz ±3dB
Signal-to-noise ratio: >100dB
Distortion: <0.9%
Maximum frequency deviation: ±45KHz
Audio output:
XLR balanced output 4dBV
6.3mm unbalanced output: -1.8dBV
RCA maximum output: -1.2dBV
Chairman/Delegate Unit Interface: Anti-dropping 9-pin aviation plug
RS-232 control interface: can be connected to intelligent central control and camera tracking system
Dimensions(mm): 426(W)×88(H)×263(D)
Weight (kg): about 4.5
Color: Nickel Black

Technical Specifications

Supply voltage：110V- 220V AC50/60 Hz

THD at nominal level：＜0.9%

Dynamic range：＞93dB
