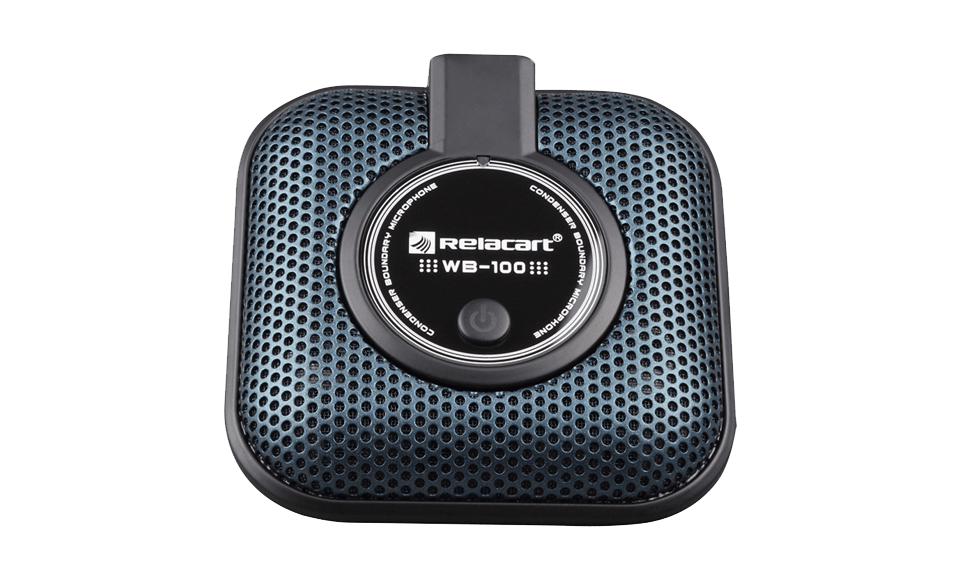

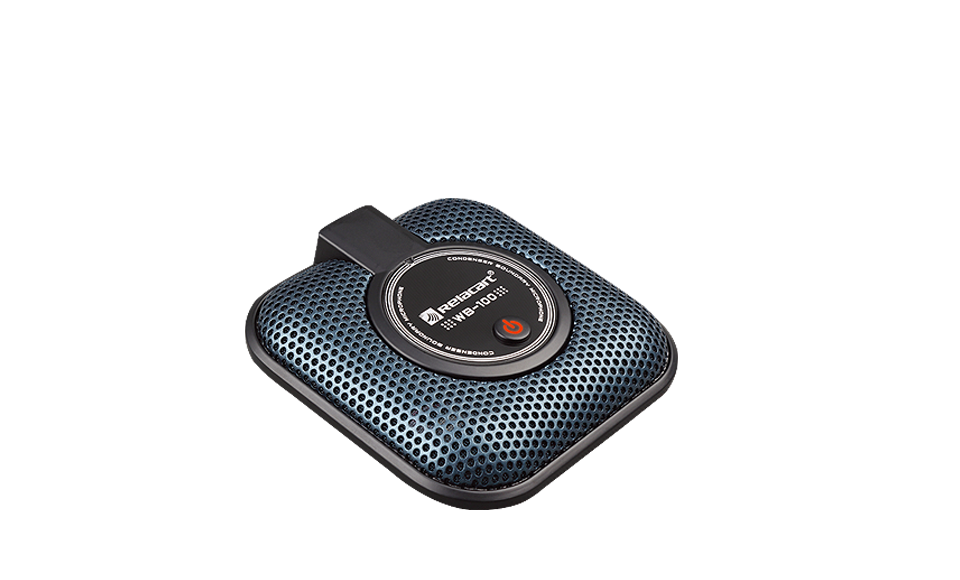

WB-100

Boundary Microphone

Inquire Now

WB-100

Product Description Technical Specifications

Product Description

WB-100 is a wide frequency response condenser cardioid boundary microphone, designed for flat placement applications, providing high-quality sound pickup, conference, professional recording, TV broadcasting and other high-demand pickup applications.

Technical Specifications

Components: Fixed charging backplane, permanent polar condenser microphone head Directivity: Semi-cardioid unidirectional (120° pickup angle)

Frequency Response: 50-17,000 Hz

High Pass Filter: 80 Hz, 18 dB/octave

Sensitivity: -36 dB (15 mV) at 1V at 1 Pa

Output Impedance: 200 ohms

Fantasy power supply: DC24-52V, power consumption 5mA typical
