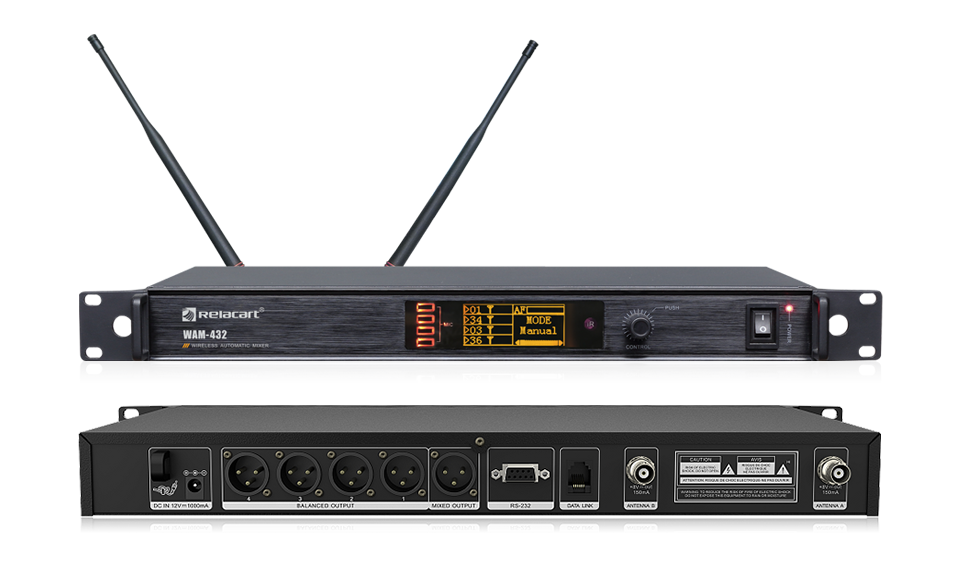

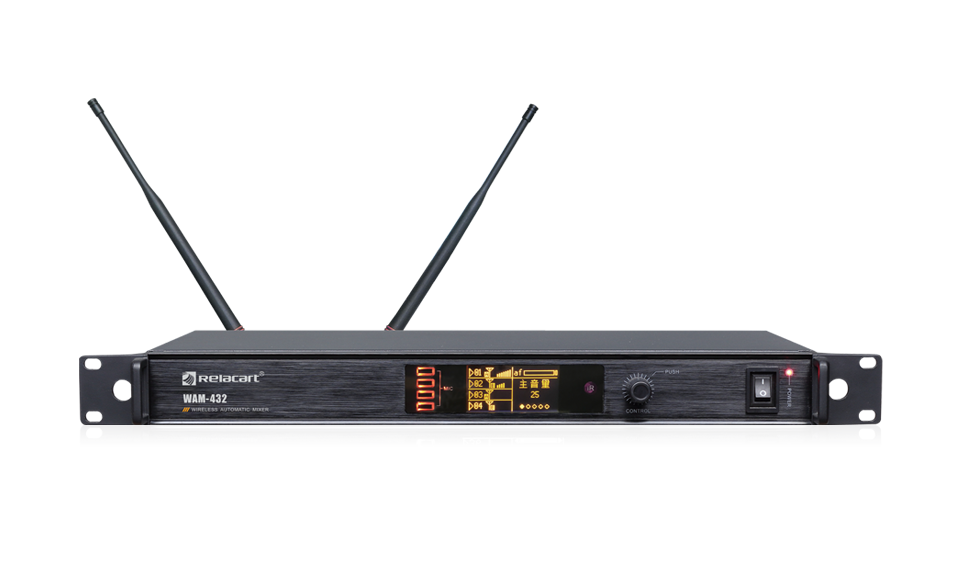

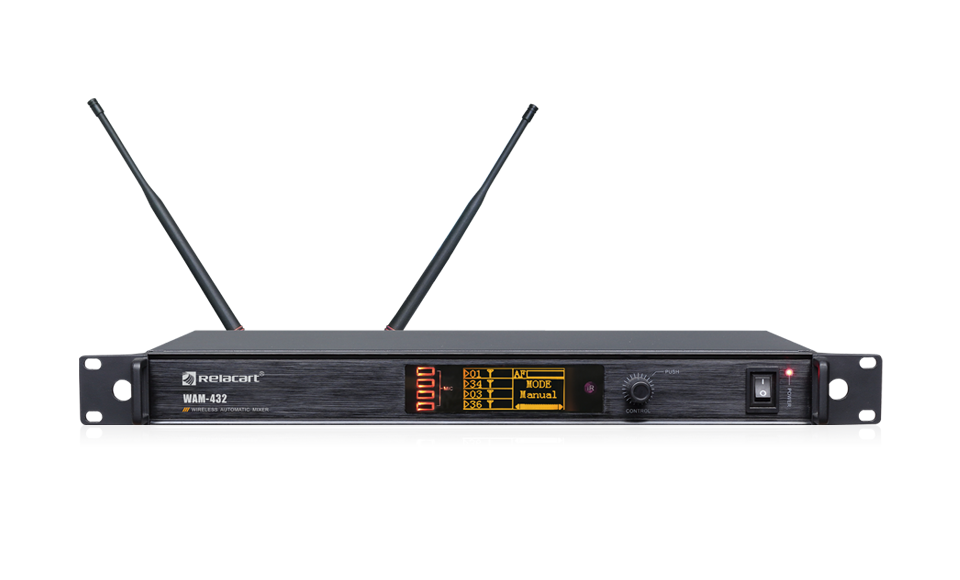

WAM-432

Wireless Automatic Mixer

Product Description Details Performance Introduction Components FAQ

Product Description

WAM-432 automatic intelligent wireless mixer is a new generation of products designed with high-performance microcomputer processor as the core of Relacart’s strong research and development strength. The design is professional and novel, and the digital control technology and advanced audio processing technology. The perfect combination of processing technology and network technology, intelligent control, fully automatic work; connecting AMC-20 audio and video control system can realize audio and video management functions. Apply to high-demand multi-purpose demonstration halls, small and medium-sized performances, hotels, boardroom, government departments, courts, etc.

Details

Specifications

Receiving Channel：4 Channel

Receiving Mode：True Diversity

Carrier Frequency Range：522MHz-936 MHZ

Frequency Reliability：0.005％

Modulation mode: FM

Distortion：±45KHzBandwidth：32MHz

Receiving Sensitivity：5dBμV, S/N>60dB

Frequency response: 65Hz-16KHz, 150Hz-16KHz (low cut)

Harmonic distortion: ≤ 0.7%@1KHzDynamic range:＞95dB

S/N：>92dB

Audio output: XLR socket

Data connection: RJ11

Communication port: RS-232

Power supply: DC 12V/1A

Operating current: 700mA

Main frame size:EIA 1U

Size (mm) : 410 (w) ×43 (H) ×206 (D)

Weight: about 2.5kg

Performance Introduction

Flexible configuration

The encoder is configured and flexibly combined with the four touch switch to operate various functions and parameter settings. 128×64 OLED display can display various information of receiver and transmitter at the same time.

IR frequency comparison

With [IR] infrared automatic frequency matching function, press the [SYNC] button, the transmitter can automatically and accurately lock the working frequency of the receiver.

Broad expansion

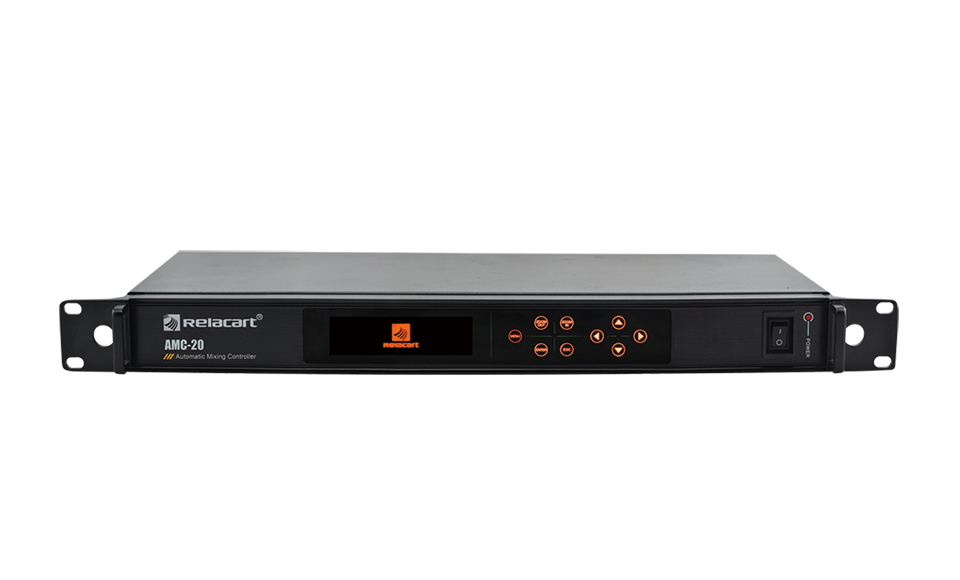

One AMC-20 can be connected to five WAM-432 wireless audio mixers at the same time to form a video conference for up to 20 people

[AFS] Automatic search frequency

With [AFS]（Auto Frequency Selection）function, enter the setup menu and select AFS function，the receiver will auto-scan and lock the working interference-free frequency.
