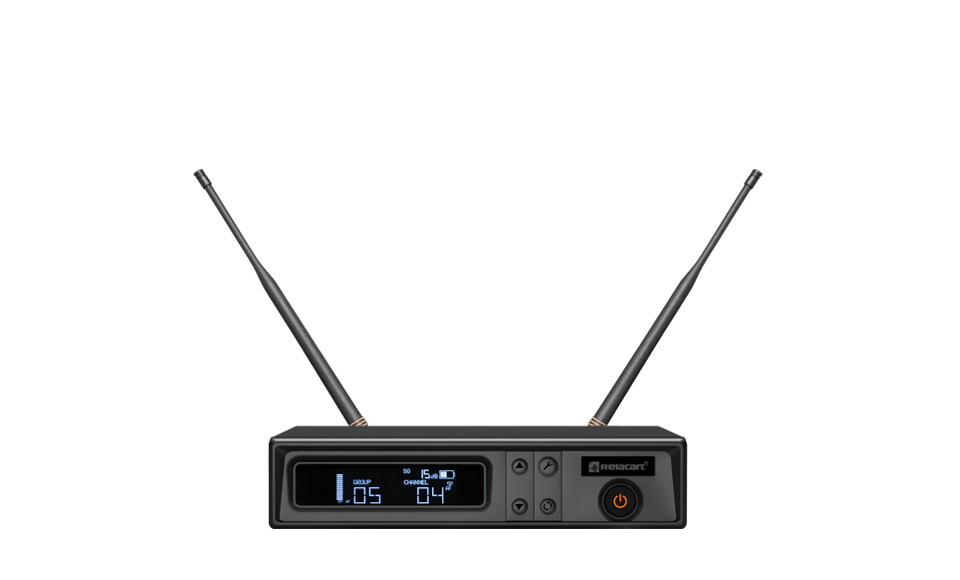

UR-223S

Single Channel Wireless Receiver

Product Description Technical Specifications Components

Product Description

UR-223S series of condensed the technology essence that Relacart accumulated over a long period. With advanced technology, stable performance, elaborate appearance, convenient operation and superior professional quality to win the market. This series is suitable for high requirement night club, multi-function room, hotels, conference room and small to medium performance.

Technical Specifications

Main Frame Size: 1/2 EIA standard 1U

Receiving Channel: Single Channel

Frequency Reliability: ±0.005％

Carrier Frequency Range: 521.25MHz-936.85MHz

Modulation: FM

Working Distance: 60M(in open space)

Oscillation: PLL Synthesized

Sensitivity: 5dBμV, S/N>60dB at 25 KHz deviation

Bandwidth: 32MHz

Max. Deviation Range: ±45KHz

S/N: >105dB
