UR-2Q

Quad-Channel 130MHz Wideband True Diversity Wireless Microphone System

Product Description

UR-2Q series wireless microphone cohesive Relacart long-term accumulation of technical essence, with advanced quad-channel electrical tuning technology, 130MHz switching bandwidth (depending on the region); has a beautiful industrial design appearance; with independent research and development of DSP audio expansion algorithm Support Dante protocol output, Magic EQ function can be adjusted freely; this series is suitable for high-demand nightclubs, multi-purpose demonstration halls, hotels, conferences and small and medium-sized performances.

Performance Introduction

【Magic EQ】 Function

It built-in 9 kinds of digital audio equalizers (Magic EQ), which can directly change the audio quality curve through parameters .


IR Infrared Counter-Frequency

With [IR] infrared automatic frequency matching function, press the [SYNC] button, the transmitter can automatically and lock on to an open accurately.


Ultra Wide Bandwidth

Ultra-wideband UHF 470MHz ~ 960MHz, pure diversity reception; each channel division and frequency design, to ensure the most wireless microphones can be used simultaneously in the narrowest frequency range.


Dante Network Audio Protocol

With Dante network audio output, Dante audio device can automatically identify the Dante channel of the product; audio signal can be output to any Dante audio device.


DSP Audio Digital Extension

High-speed DSP chip, 24-bit high-performance ADC, DAC plus self-developed digital audio expansion algorithm to minimize the noise caused by wireless transmission.


Automatic Frequency Selection (AFS)

With [AFS] (Auto Frequency Selection) function, enter the setup menu and select AFS function, the receiver will auto-scan and lock on to an open interference-free frequency.

Technical Specifications

Main Frame Size:EIA standard 1U


Receiving Channel: Four channels


Frequency Stability:±0.005%


Carrier Frequency Range:521.25MHz-936.85MHz


Oscillation : PLL synthesis


Sensitivity:5dBu , S/N>60dB at 25KHz deviation


Bandwidth:130MHz


Max. Deviation Range:±50KHz


Audio Sampling Rate:96KHz 24-bit


Audio Expansion:Relacart DSP Digital Audio Extension Algorithm


S/N:>105dB


T.H.D:<0.7%@1KHz


Frequency Response:80Hz~18KHz ±3dB


External Antenna Interface:Dual BNC support +12V/150mA output


External Audio Interface:Mixed balanced audio output, BALANCED single channel balanced audio output


Ethernet Port:Support Dante communication protocol


Power Supply:AC input, ICE connector, 100-240 VAC


Dimensions (mm):480(W)x350(D)x43(H)



Accessories

Lavalier Microphone

LM-C460

Lavalier Microphone

Lavalier Microphone LM-C480

LM-C480

Lavalier Microphone LM-C480

Lavalier Microphone LM-C550

LM-C550

Lavalier Microphone LM-C550

Lavalier Microphone LM-C620

LM-C620

Lavalier Microphone LM-C620

Dynamic Microphone Module M-D26

M-D26

Dynamic Microphone Module M-D26

Dynamic Microphone Module M-D27

M-D27

Dynamic Microphone Module M-D27

Dynamic Microphone Module M-D22

M-D22

Dynamic Microphone Module M-D22

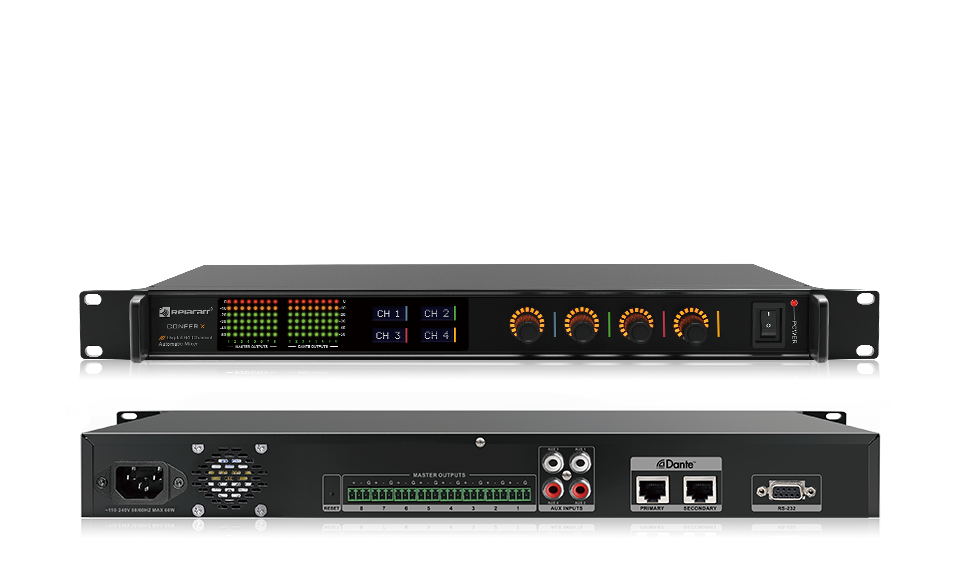

64-channel digital automatic mixer

CONFER X

64-channel digital automatic mixer

Wireless Management System

WMS-1

Wireless Management System

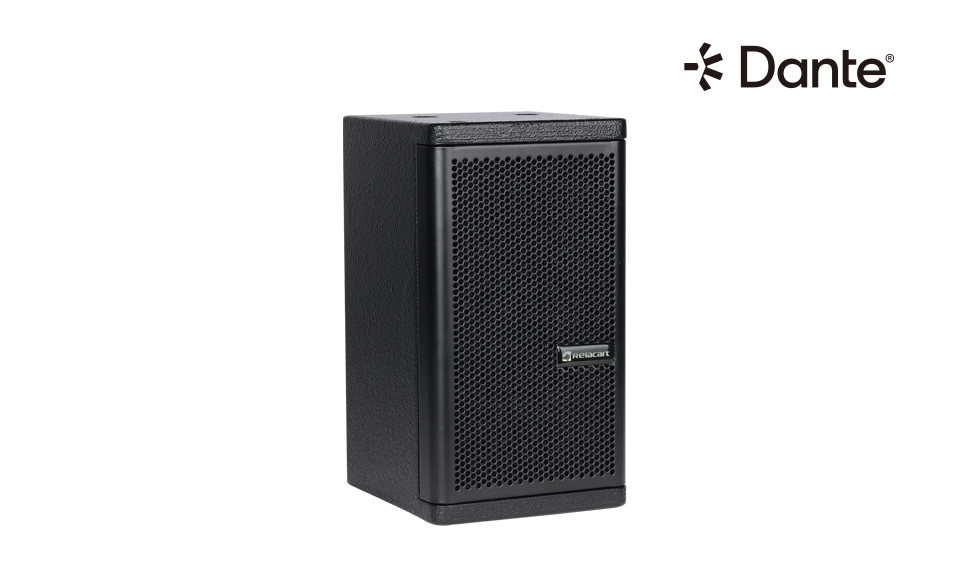

Dante Audio Networked Enabled Speaker System
