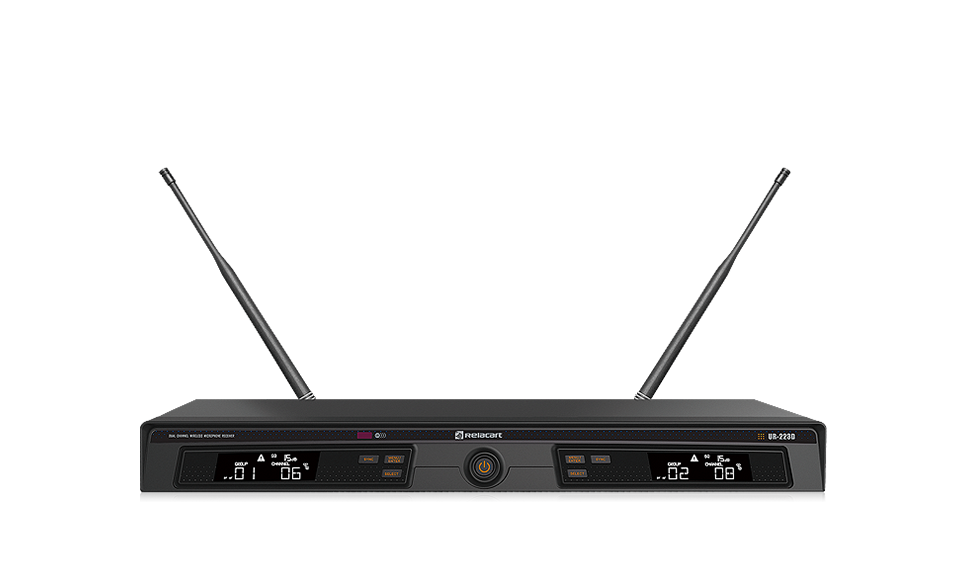

UR-223D

Dual Channel Wireless Receiver

Product Description Technical Specifications Components

Product Description

UR-223D is a dual channel true diversity wireless microphone system. The true diversity reception is more stable, with automatic dispatch, eliminate receive dead Angle, avoid fault frequency phenomenon. UR-223D with advanced technology, stable performance, exquisite appearance, convenient operation and superior professional quality to win the market. This series is suitable for high requirement night club, multi-function room, hotels, and conference room and medium to large performance.

Technical Specifications

Main Frame Size: EIA standard 1U

Channels: Dual Channel

Frequency Stability: ±0.005％(-10℃~50℃)

Carrier Frequency Range: 521.25MHz-936.85MHz

Modulation Mode: FM

Oscillation: PLL synthesized

Sensitivity: S/N>60dB at 25 deviation

Output Connector: XLR balanced & 6.3φ phone unbalanced plug

Antenna connector: TNC

Bandwidth: 64MHz

Max Deviation Range: ±45KHz
