UR-290

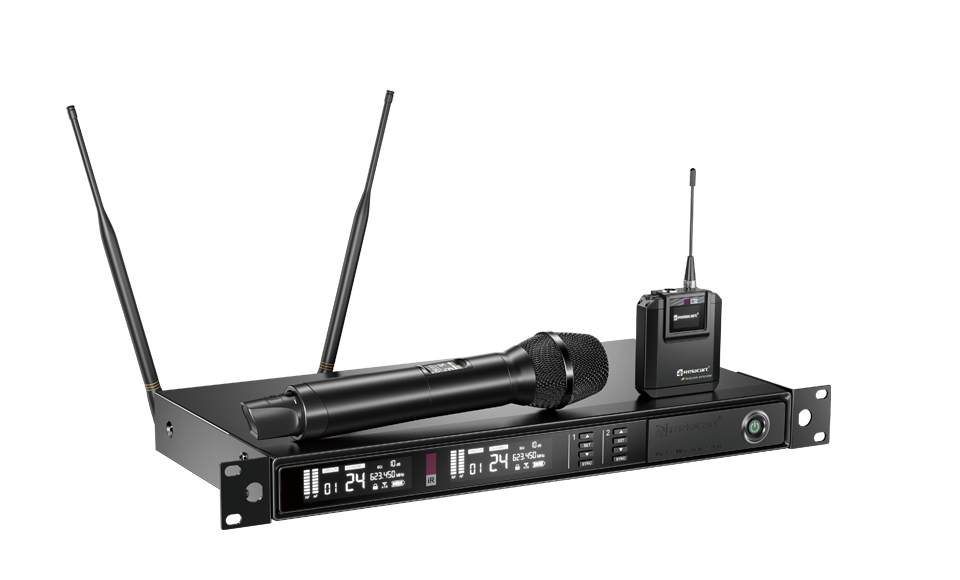

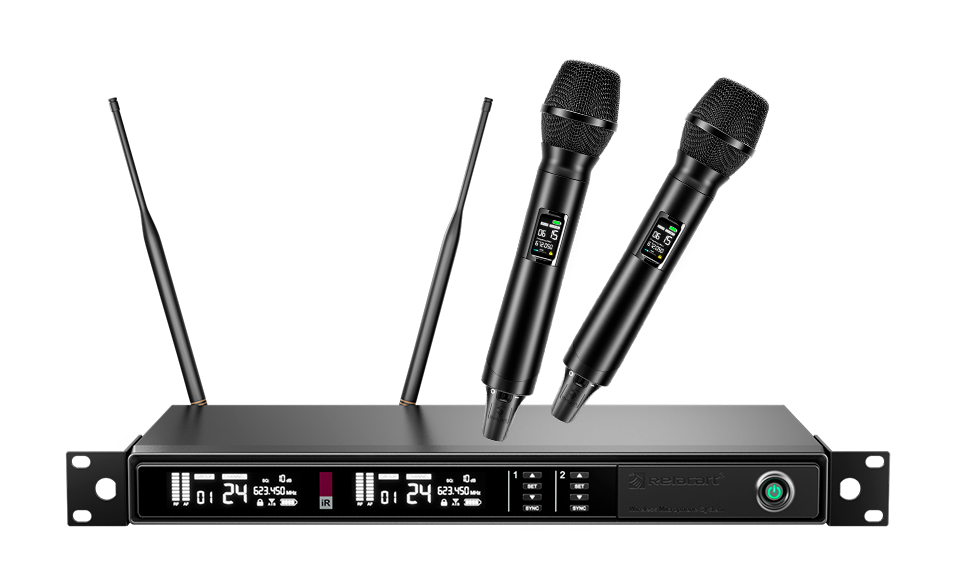

Dual-Channel True Diversity Wireless Microphone System

Product Description

UR-290 is a dual-channel true diversity wireless microphone system condensed from the essence of Relacart's many years of technology. It has advanced technology, stable performance and exquisite design. It can be connected to MagicEQ professional audio software for adjustment. The bandwidth is up to 64MHZ, wider than similar products on the market, with more frequency to choose from; the volume is adjustable in 1dB step, three levels of RF power are optional, multi-level SQ is optional, and a handheld microphone charging base is optional, It is more convenient; the 1.14-inch TFT color display has higher display quality. It is fully suitable for high-demand business negotiation venues, multi-functional halls, hotels, conference rooms and small to medium-sized performance venues.

Functional Features

TFT display screen

It adopts a 1.14-inch TFT high-brightness display with rich colors and high visibility. It is easy to grasp the working status of the device and clearly displays the frequency, power, dB value, lock/unlock and other status.

Performance Introduction

MagicEQ audio software

The connection software has a built-in digital equalization processor, with 9 tone modes to choose from, 7 of which are fixed modes, covering various international brand tone effects, and 2 custom modes. The tone can be adjusted freely through dedicated operating software to achieve individual needs. desired effect.


TFT display screen

It adopts a 1.14-inch TFT high-brightness display with rich colors and high visibility. It is easy to grasp the working status of the device and clearly displays the frequency, power, dB value, lock/unlock and other status.


Anti-accidental touch switch

The handheld microphone uses a toggle switch and is located at the tail to prevent accidentally touching the switch during use, which may cause interruptions in performances, meetings, etc.


Optional dual-bay chargers

Optional contact-type dual bay changer, simply place the microphone into it for charging. Utilizing rechargeable NiMH batteries, it offers a longer lifespan compared to alkaline batteries, ensuring enhanced safety, durability, and environmental friendliness. This convenient charging method is suitable for various scenarios requiring frequent charging.


64MHz ultra-wide bandwidth

The system has an ultra-wide bandwidth of 64MHz, which is wider than similar products on the market. Even when multiple sets of equipment are needed for large-scale performances, there are still enough frequencies to choose from, making it easier to avoid interference during use.


SQ multi-level adjustable

The multi-level SQ value can be adjusted freely, and the mute threshold can be adjusted according to the actual use situation on site. It can ensure high-quality sound pickup regardless of short distance or long distance, and can be used in various occasions.


RF power multi-level adjustable

The RF power is available in three levels: 100MW, 30MW, and 10MW. Compared with other products on the market, there are more choices. Short-distance transmission can reduce power consumption, and it can also easily handle situations where long-distance transmission is required.

Technical Specifications

Receiver technical specifications:


Receiving Sensitivity: 5dBv, S/N ≥ 60dB at 25KHz deviation


Channel Bandwidth: 64MHz (depending on region)


Max.Deviation: ±45KHz


Comprehensive S/N: >105dB


Comprehensive T.H.D:<0.7%@1KHz


Frequency Response: 60Hz~18KHz ±3dB

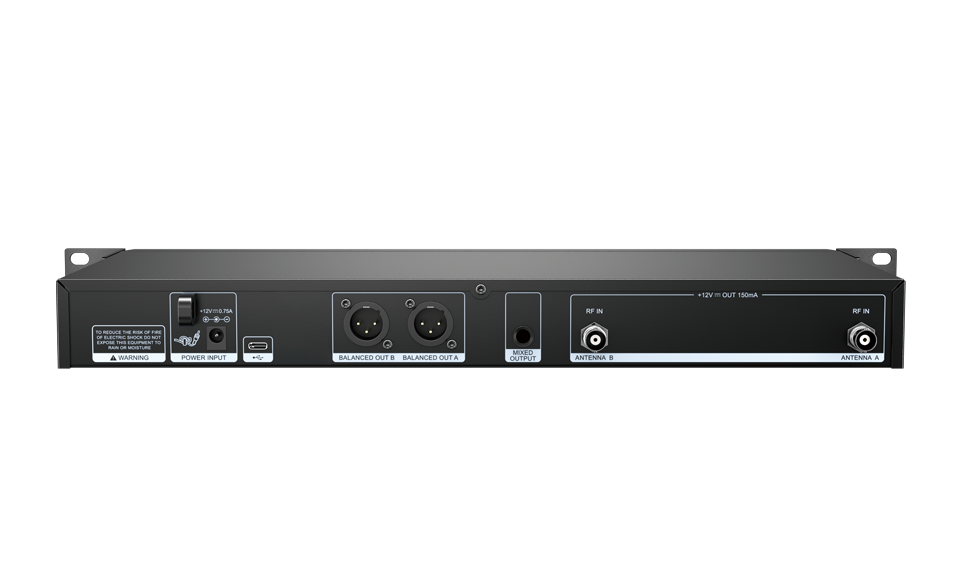

Antenna Interface: Dual BNC supports +12V/150mA output


Audio Interface: 6.3mm unbalanced audio output, XLR balanced audio output



Support

Operation manual

UR-290datasheet
