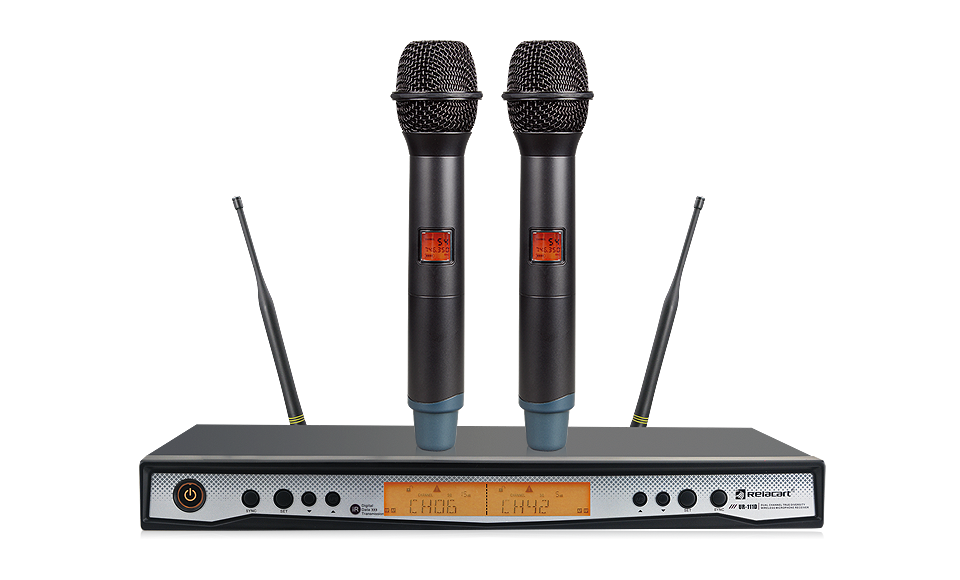

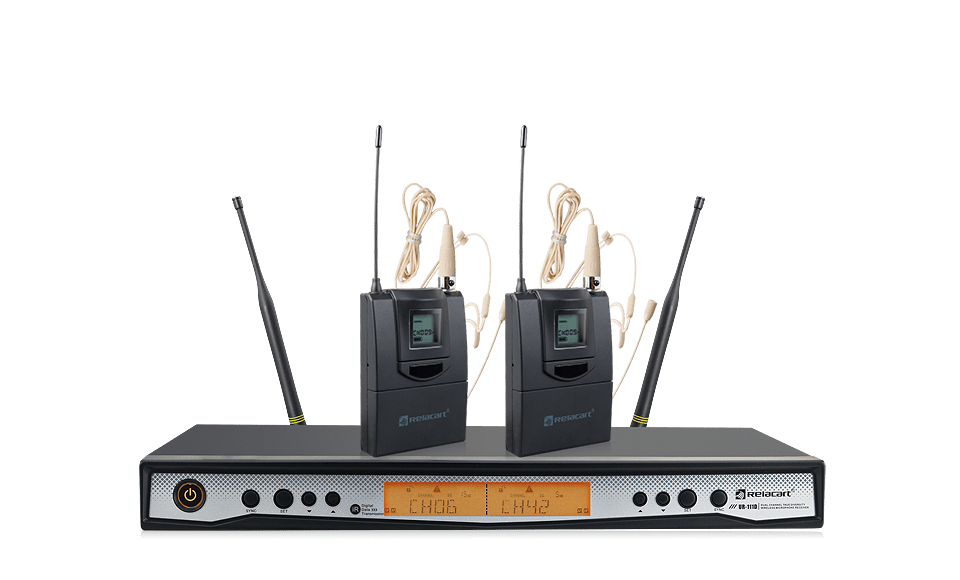

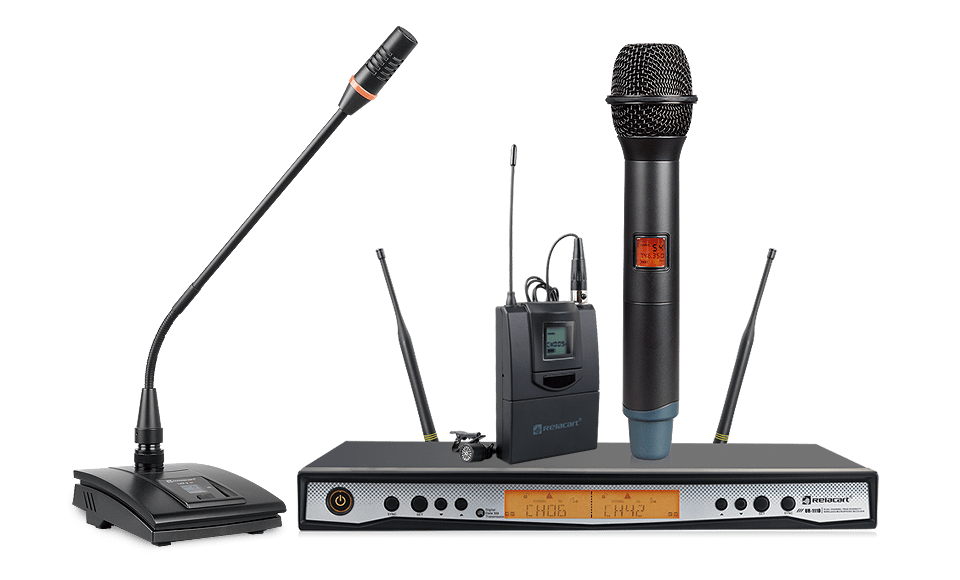

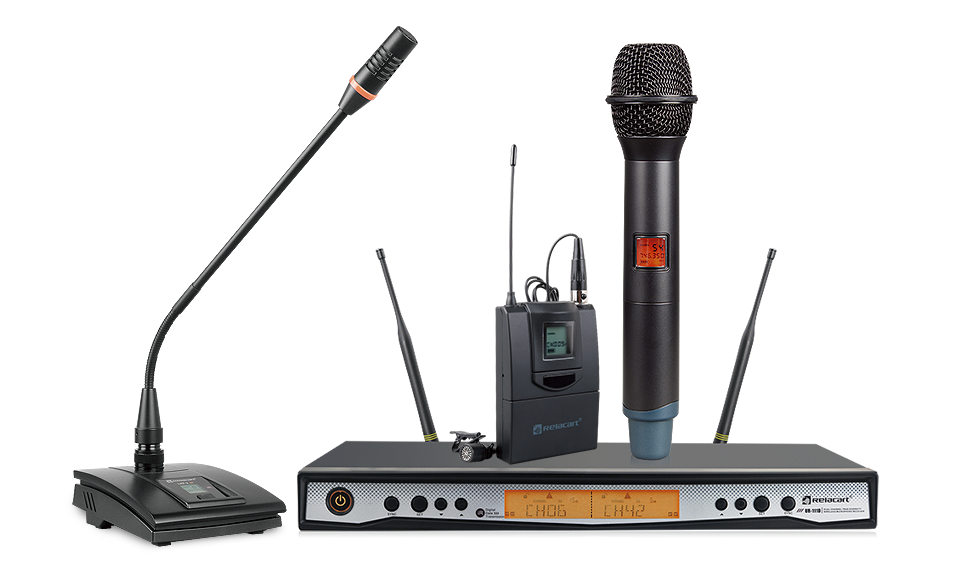

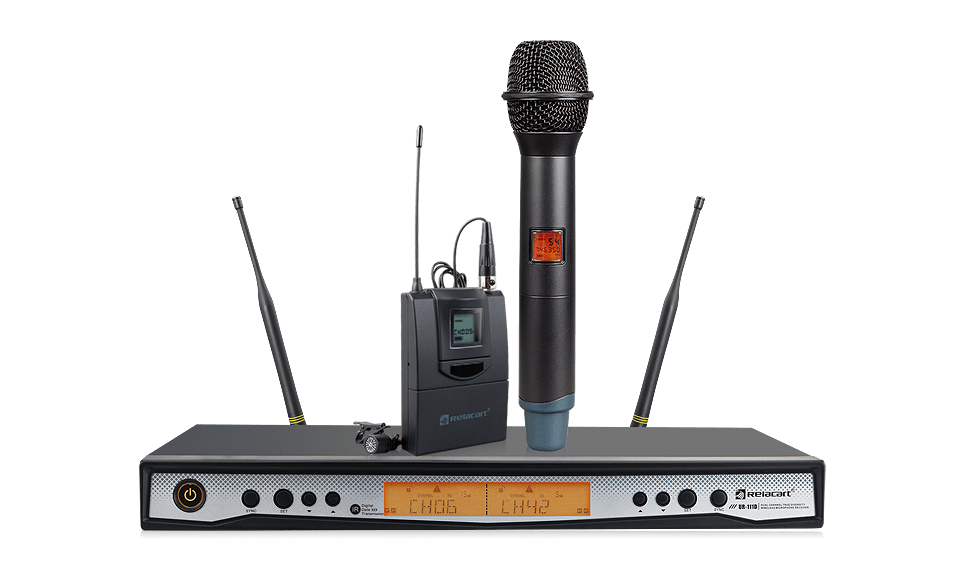

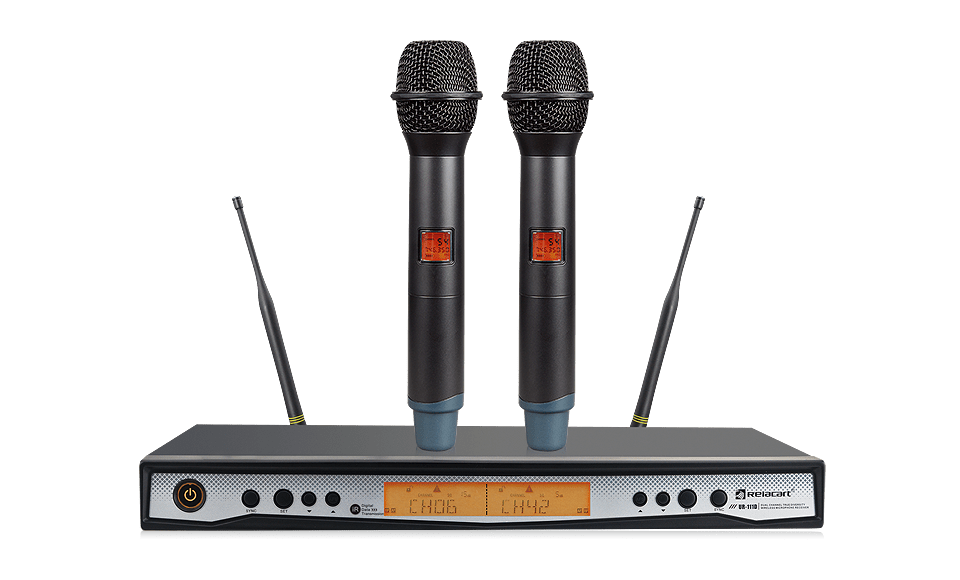

UR-111D

Dual-channel diversity wireless central controller

The UR-111D series embodies the technical essence accumulated by Relacart for a long time. With advanced technology, sophisticated design, stable performance, beautiful appearance, convenient operation, favorable price, and excellent professional quality to win the market competition. This series is suitable for high-demand night clubs, multi-purpose halls, hotels, conference rooms and small and medium-sized performance venues.

Product Description

Technical Specifications

Main Frame Size: EIA STANDARD 1U

Channels: Dual Channel

Frequency Stability: ±0.005%  (0~50°C)

Carrier Frequency Range: 521.25MHz-936.85MHz

Modulation Mode: FM stereo modulation

Oscillation: PLL synthesized

Receiving Sensitivity: 5dBμV, S/N>60dB at 25 deviation

Band Width: 32MHz

Max. Deviation Range: ±45KHz

S/N: >105dB

T.H.D.: <0.7% @ 1KHz

Frequency response: 80Hz-18KHz  ±3dB

Operating Range: 80~100M typical ( in open space)

Power Supply: DC 12V / 12W

Weight: 1.9kg

Dimension (mm): 410(W)x43(H)x206(D)

Output Connector: XLR balanced & 6.3φ phone jack unbalanced
