UD-223

Wireless Gooseneck Microphone Desk Stand

UD-223 is a desktop gooseneck wireless conference microphone base with simple design style, solid and durable metal material, and silent touch switch.

Inquire Now

Details Accessories

Optional

Wireless Gooseneck Microphone Desk Stand

UD-223

UD-223

More

Gooseneck microphone

CF-100

CF-100

GF-101

GF-101

GF-301

GF-301

GF-501

GF-501

GF-901

GF-901

GF-902

GF-902

GF-923

GF-923

GF-933

GF-933

More

Details

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Carrier frequency band: 521.25MHz-936.85MHz

Oscillation mode: PLL frequency synthesis technology

Harmonic radiation: 50dBm lower than the main wave

Bandwidth: 134MHz (depending on the region)

Maximum offset: ±45KHz

RF power output: 10mW

Low cut switch: below 200Hz

Battery: AAx4

Current consumption: 180mA (typ.)

Dimensions (mm): 170(L)x129(W)x49(H)

Weight (without battery): about 580g

Accessories

Detachable Square Microphone

Detachable Square Microphone

Detachable Square Microphone

Detachable Square Microphone

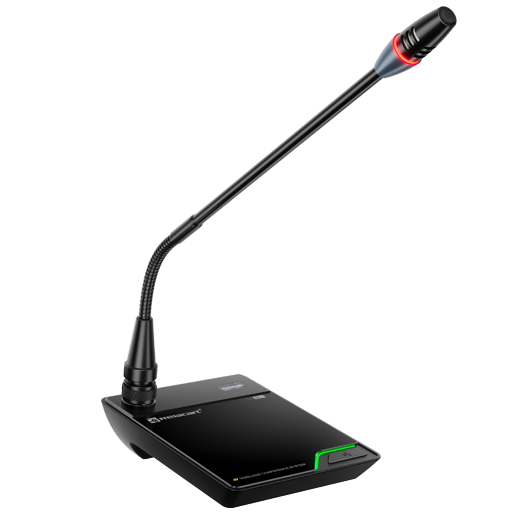

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone CF-100

Gooseneck Microphone CF-100
