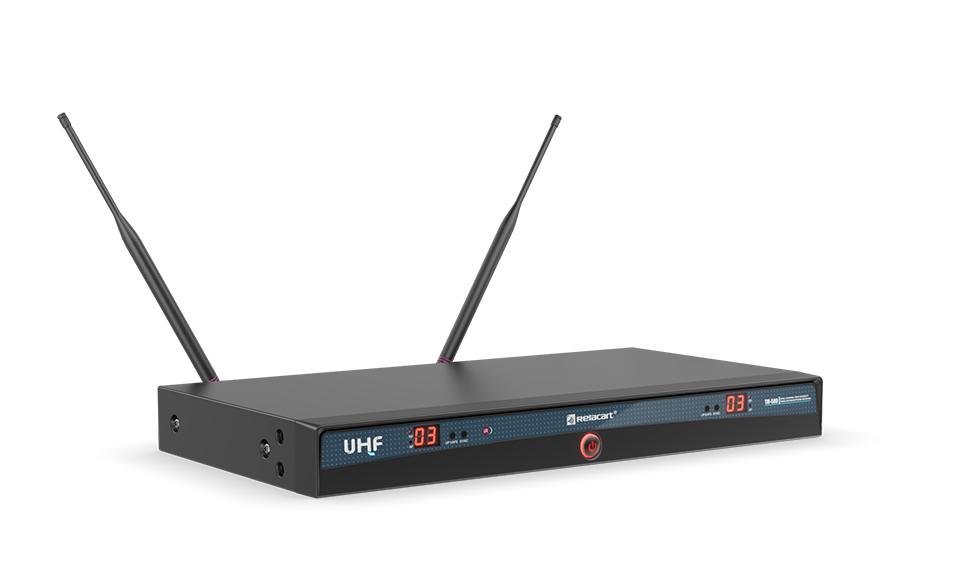

TM-500

Dual channel wireless central controller

Product Description

TM-500 is a true diversity wireless receiver independently developed by Relacart. It can expand the functions of automatic synchronization microphone, external central control, page turning, and connection. TM-5H handheld microphone has a novel appearance and small size. The circuit adopts advanced phase-locking technology, built-in detachable lithium battery, USB-TYPE-C charging interface, and laser pointer. Low power consumption, one charge can work continuously for ≥8 hours. The true diversity FM superheterodyne reception is adopted to ensure the stability of the received RF signal and the anti-interference of the receiver itself; the operating frequency range is 521.25MHz-936.85MHz according to the radio wave control laws and regulations of various countries.

Technical Specifications

Receive bandwidth: 521.25MHz-936.85MHz

Receiving method: FM super heterodyne true diversity reception

RF sensitivity: 5dBv, S/N≥60 dB at 25KHz deviation

Squelch adjustment: set

Frequency synchronization method: IR Sync

Maximum output level: maximum output + 11dBV

Output level adjustment range: set

Power supply: DC12V / 1A

Normal working current: DV12V, 330mA

Dimensions: 410mm (width) x43mm (height) x206mm (deep)

Net weight: 1.8Kg

Components

Accessories

Infrared Extension Synchronizer

EC-50

Infrared Extension Synchronizer
