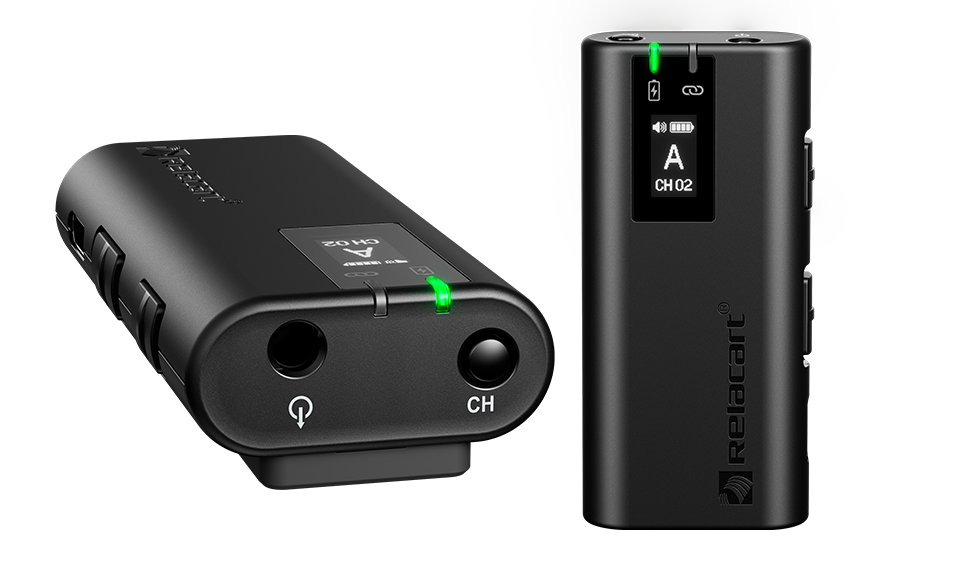

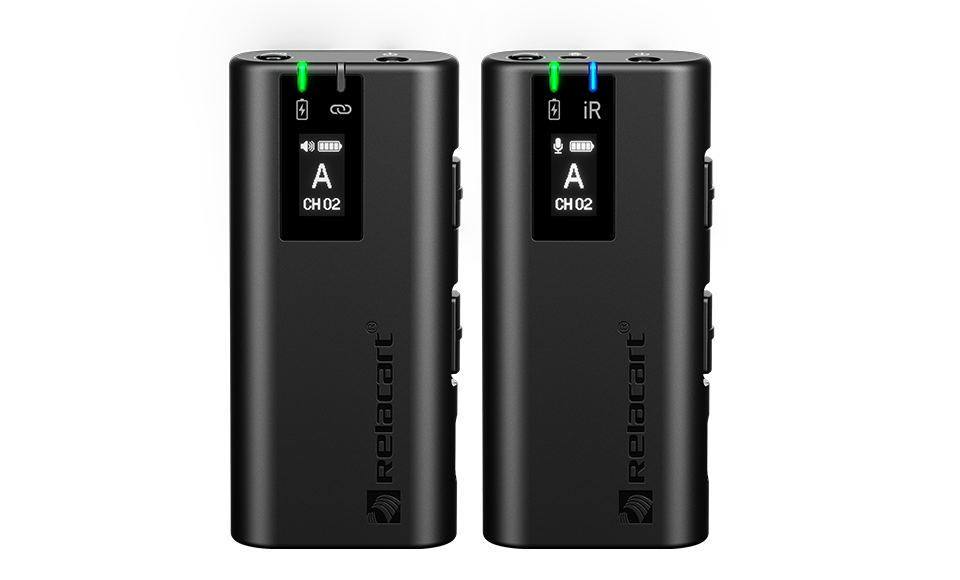

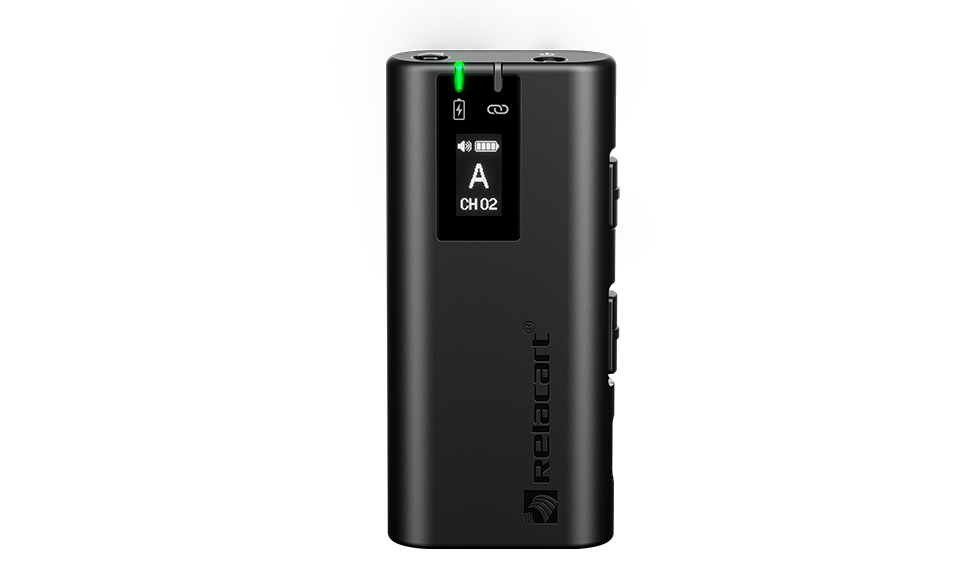

Receiver Specification
Receiving bandwidth：521.25MHz-936.85MHz
Receiving method：superheterodyne
Image rejection：45dBm
RF sensitivity：when inputting 10dBu, S/N ≥ 45dB
SQ adjustment：built-in setting parameters
Frequency synchronization method：manual key setting
Maximum output level (analog)：0.7Vpp
Output level adjustment range：3-level adjustable, attenuated adjustment, every 3dB step
Digital audio output：TYPE-C audio, computer USB audio
Power supply mode：built-in 3.7V 450mA lithium battery power supply
Normal working current：100mA
Battery life：≥ 4 hours when the battery is fully charged
Dimensions：67 * 32 * 13.5(mm);
Net weight：31.5g

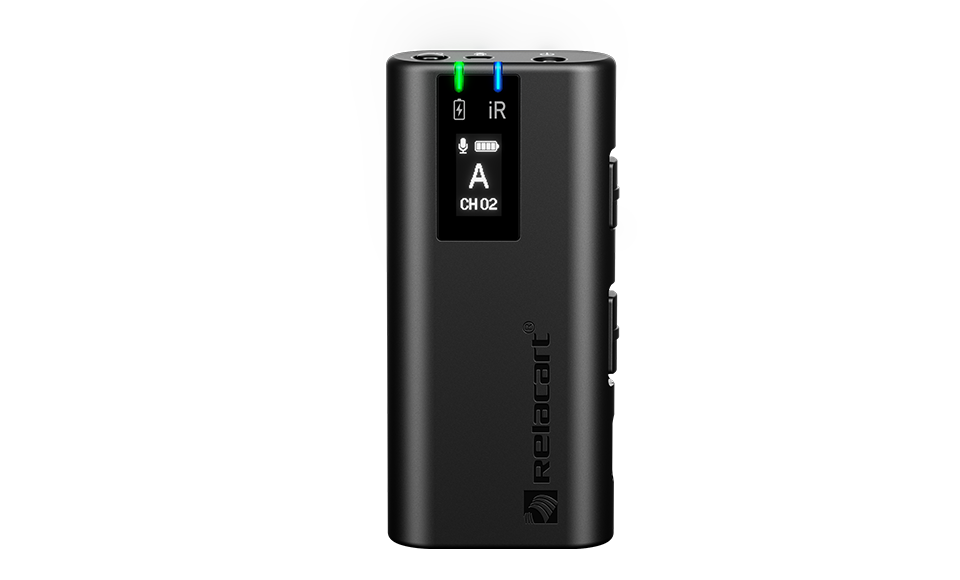

Transmitter specifcation
Carrier bandwidth：521.25MHz-936.85MHz
Oscillation mode：PLL frequency synthesis
Transmit power：13.5dBm
Carrier deviation：0.005%
Harmonic radiation：-32dBm
Modulation method：FM
Nominal/Max. Deviation Range：± 65KHz
Maximum input level：250mV
Input gain adjustment：3 levels adjustable
Input impedance：2.2KΩ
Frequency setting：manual button to set frequency
Power supply mode：built-in lithium battery or TYPE-C 5V power supply
Normal working current：100mA
Battery life：≥ 4 hours when the battery is fully charged
Dimensions：67 * 32 * 13.5(mm)
Net weight：31.5g
