TDN1

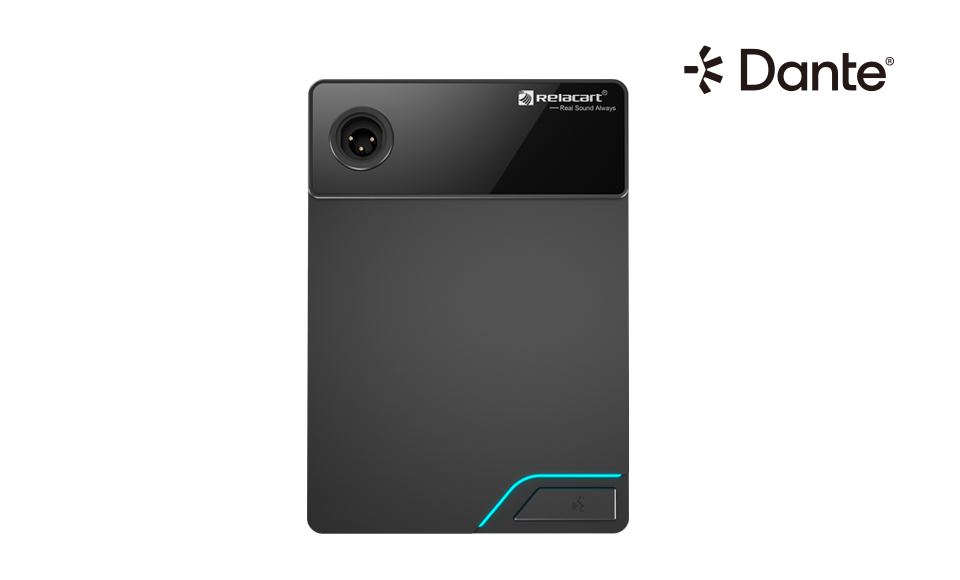

Microphone Desk Stand with Dante Network Output

Inquire Now Next Product

Product Description Details Support

Product Description

TDN1 desk stand allows Dante technology to be used with any phantom-powered condenser gooseneck microphone with a 3-pin XLRM-type output. The desk stand is designed for surface-mount applications such as high-quality sound reinforcement, conferencing, distance learning and other demanding sound pickup applications.

Optional

Wireless Gooseneck Microphone Desk Stand

More

Gooseneck microphone

MS-933

MS-933

MS-923

MS-923

ES-910

ES-910

More

Details

Connection diagram

Frequency Response

Polar Pattern

Specifications

Package Contents

Frequency Response：20-20,000 Hz

Low Frequency Rolloff：150Hz, 18 dB/octave

Gain Adjustment：six level of adjustable gain

Input Impedence：2.2 kΩ

Maximum Sound Input Level：0dBu @ +20 dB gain

Signal-to-Noise Ratio：65dB，1KHz at 1 Pa

Power Requirements：PoE IEEE802.3af standard (Power consumption 1.5W)

Power Consumption：2.3W

Phantom Power：48V DC

Weight：720 g

Dimensions(mm)：170(L)x120.3(W)x48.5(H)

Output interface: standard Ethernet interface

Input Connector：3-pin XLRM-type

Output Connector：RJ45

Cable quality：Shielded CAT5 or CAT6 recommended

Transmission speed：100 Mbps

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

TDN1-Operation-manual

Product Brochure

TDNTDN1-F-brochure
