ER-6200

Dual-channel True Diversity Wireless Microphone System

Product Description Functional Features Details Performance Introduction Components Accessories

Product Description

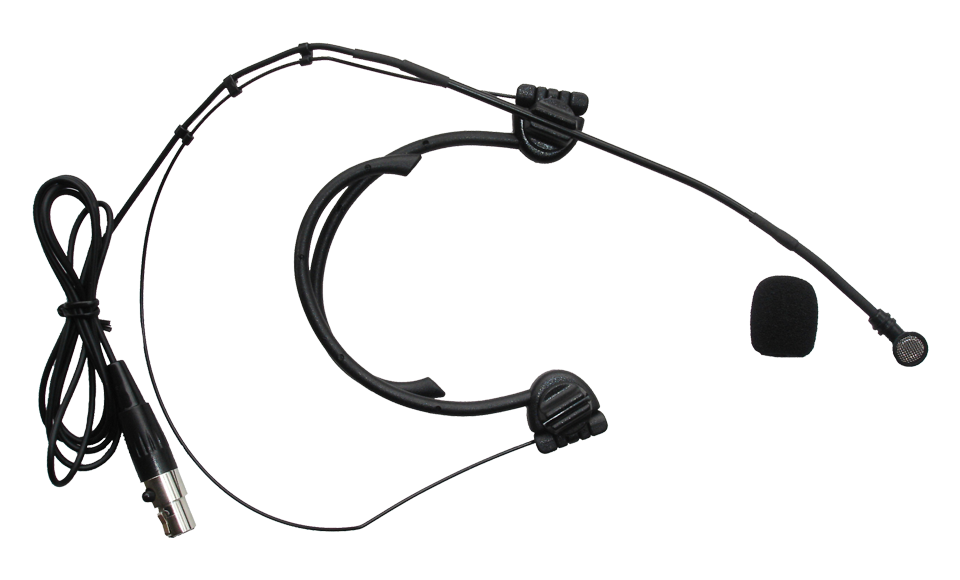

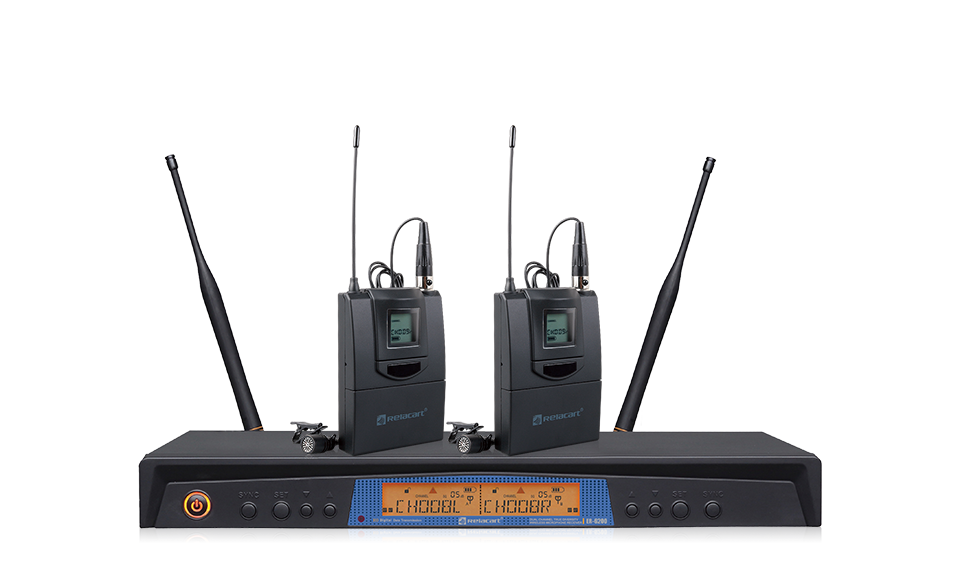

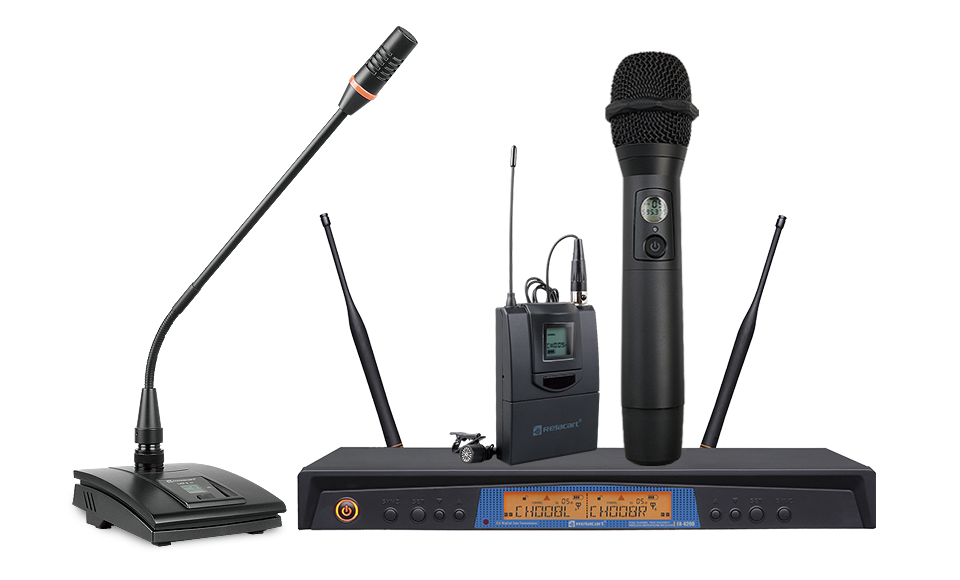

The ER-6200 is a true diversity wireless receiver independently developed by Relacart. It can be optionally equipped with handheld microphones, bodypack lavalier microphones, head-mounted microphones, or desktop gooseneck conference microphones. It adopts true diversity FM superheterodyne reception to ensure the stability of the received RF signal and the anti-interference ability of the receiver itself. The operating frequency range of 521.25MHz - 936.85MHz is subject to the radio wave control laws and regulations of different countries.

Functional Features

Audio Companding Circuit

It is equipped with Relacart's classic audio companding circuit, which can reduce the noise during the transmission of sound through radio waves and maximize the sound - pickup effect of the product during use.

Four - Band Selection

The 128MHz wide - band transmitter allows the four receivers of different frequency bands to be used interchangeably at will, which greatly facilitates the debugging and management of KTVs.

Multiple Channel Group Modes

The channel group mode is adopted, and each frequency band provides 50 channel groups for users to choose from.

[IR] Infrared Automatic Frequency Synchronization

It has the [IR] infrared automatic frequency synchronization function. Just press the [SYNC] button, and the transmitter can automatically and accurately lock the operating frequency point of the receiver immediately.

Expandable Antenna

The BNC antenna socket can be connected to coaxial antennas and extension antennas, and it provides the power supply voltage for the antenna. It supports connection to Relacart's classic antenna amplifier system, enabling multiple devices to share the antenna, extending the receiving distance and improving the signal stability.

[AFS] Automatic Frequency Search

It still supports Relacart's "AFS" automatic frequency search function, which can quickly and accurately scan and calculate interference - free operating channels according to the preset frequencies.

Details

Packaging Contents

ER-6200 Dual-channel True Diversity Wireless Receiver Optional: EH-6200 Handheld Wireless Transmitter or ET-50 Bodypack Transmitter Power Adapter Signal Enhancement Antenna User Manual Warranty Card

Performance Introduction

Receiving Bandwidth: 521.25MHz - 936.85MHz Receiving Method: FM Superheterodyne True Diversity Reception RF Sensitivity: When the deviation is 25KHz and the input is 5dBv, S/N≥60dB Squelch Adjustment: 10dB to 40dB, adjustable in 5dB steps Frequency Synchronization Method: IR Sync Maximum Output Level: Maximum Output +11dBV Output Level Adjustment Range: -6dB to +18dB, adjustable in 3dB steps Power Supply Method: DC12V/1A Normal Operating Current: DV12V, 330mA Dimensions (mm): 410 (Width) x 43 (Height) x 206 (Depth) Net Weight: 1.8Kg

Components
