UH-1

Wireless handheld microphone UH-1

Product Description Technical Specifications

Product Description

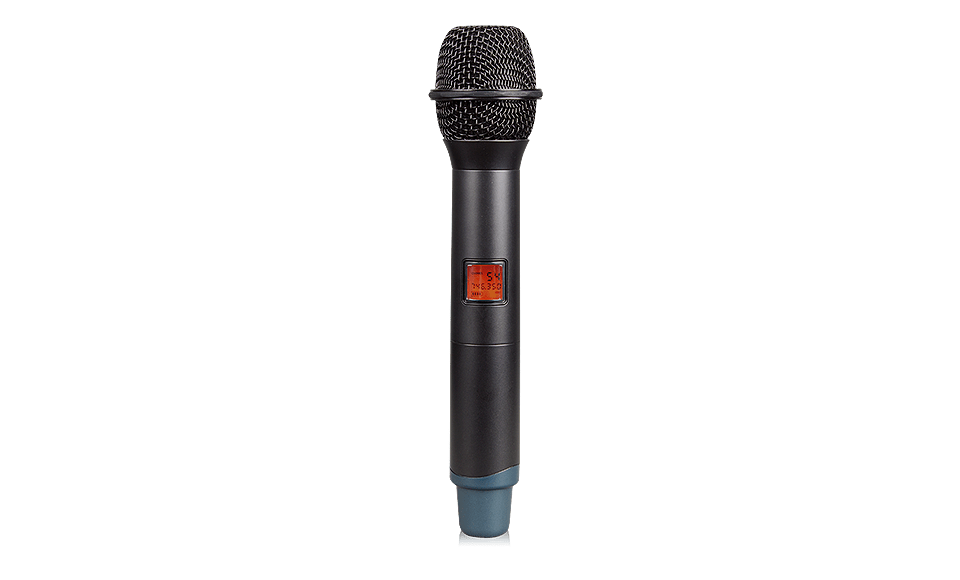

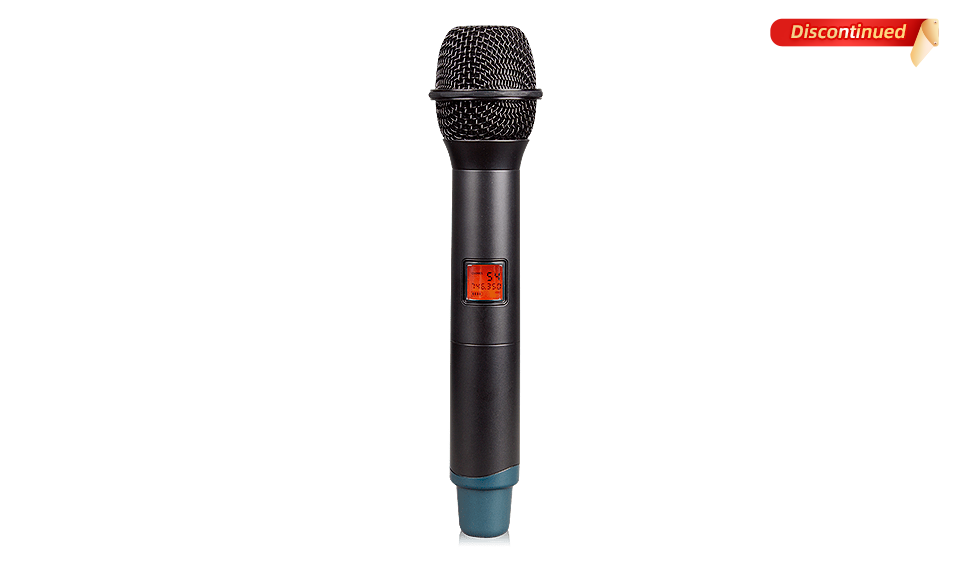

UH-1 is a handheld microphone with ergonomic design, interchangeable microphone heads and long battery life.

Technical Specifications

Carrier Frequency Range: 521.25MHz-936.85MHz

Oscillation: PLL synthesized

Harmonic radiation: ≤45 dBm

Bandwidth:

Band HF: 139MHz（797 MHz~936 MHz)

Band AD: 134MHz（662 MHz~796 MHz）

Band EJ: 97MHz（554MHz~651 MHz）

Max.DeviationRange: ±45KHz

Microphone Element: Cardioid Dynamic / Cardioid Condenser

RF Power Output: 10MW/40MW

Battery: AA X 2

Current Consumption: 110mA typical

Battery Current / Life: Approximately 10hours

Dimension: 52(Φ) X 255L)

Weight: 208g (w/o battery)
