H-32

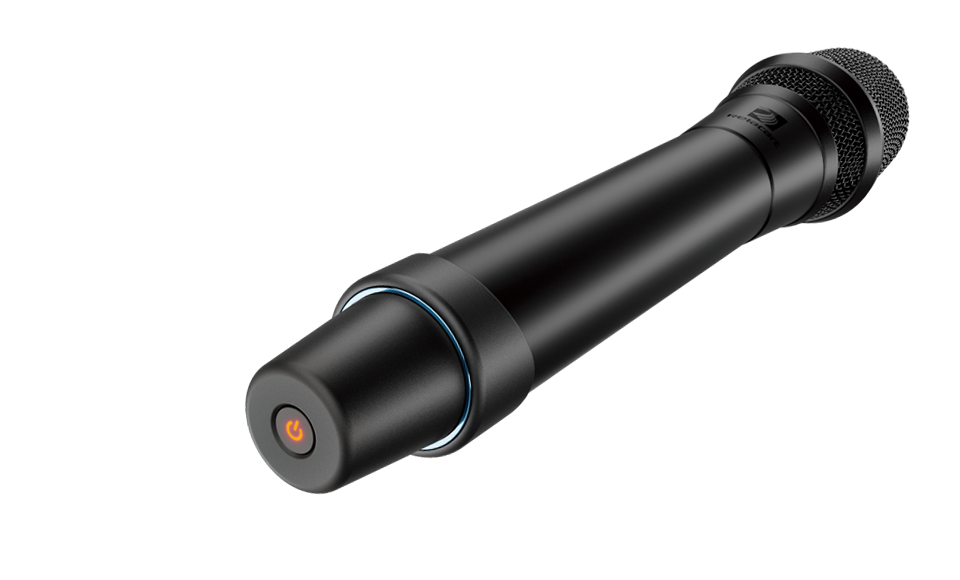

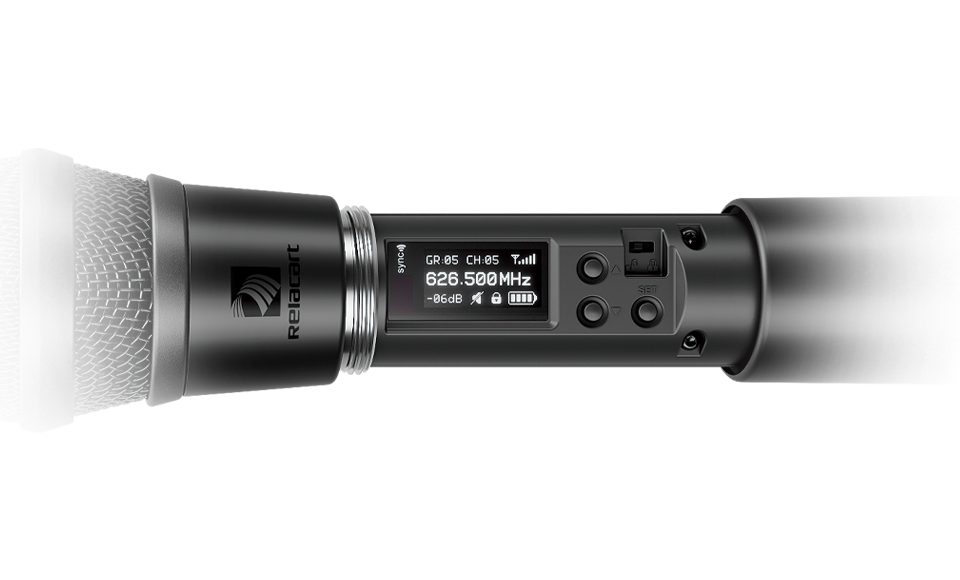

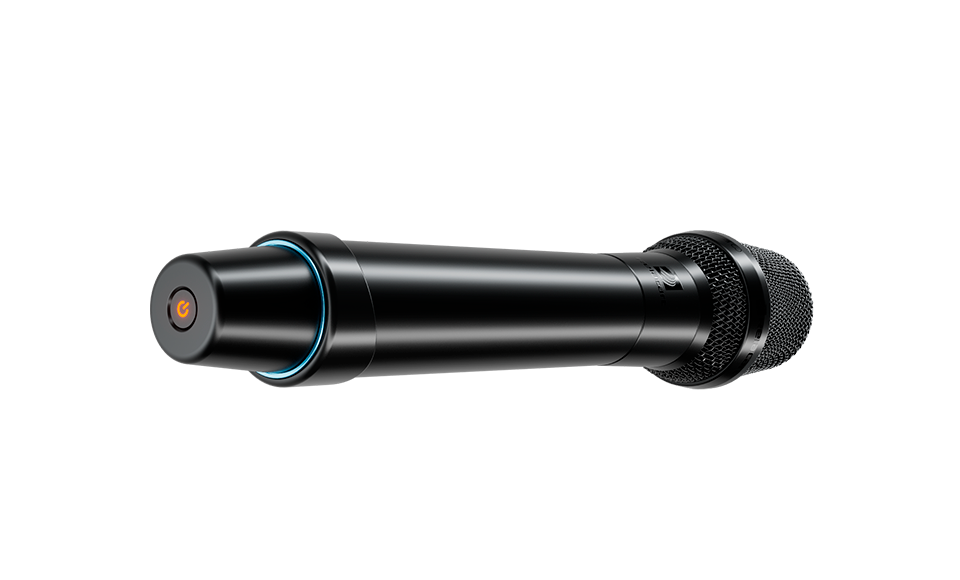

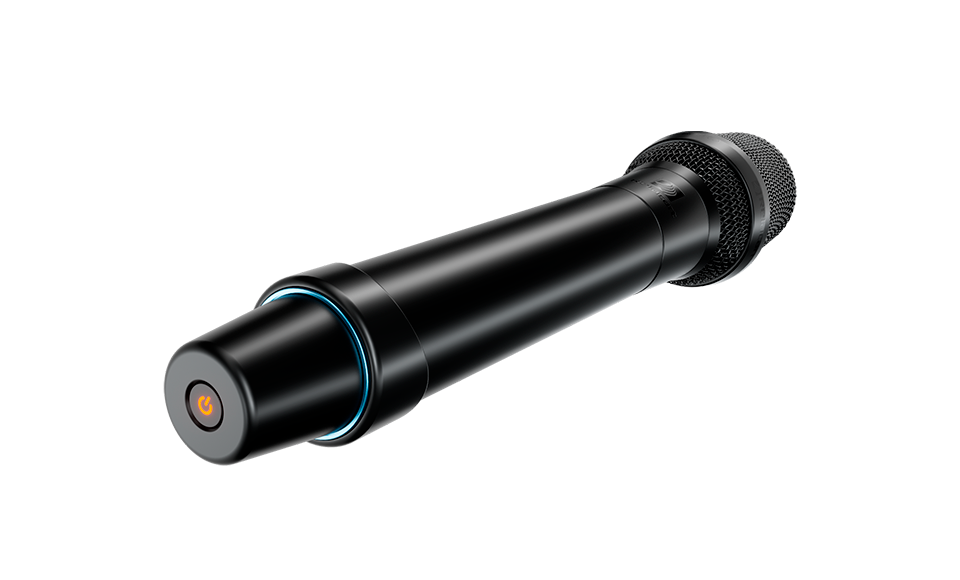

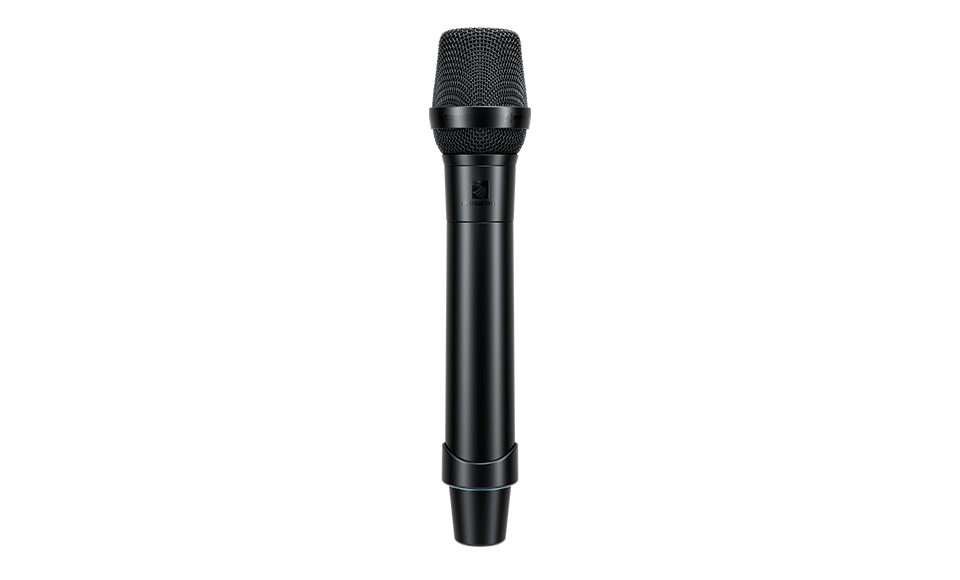

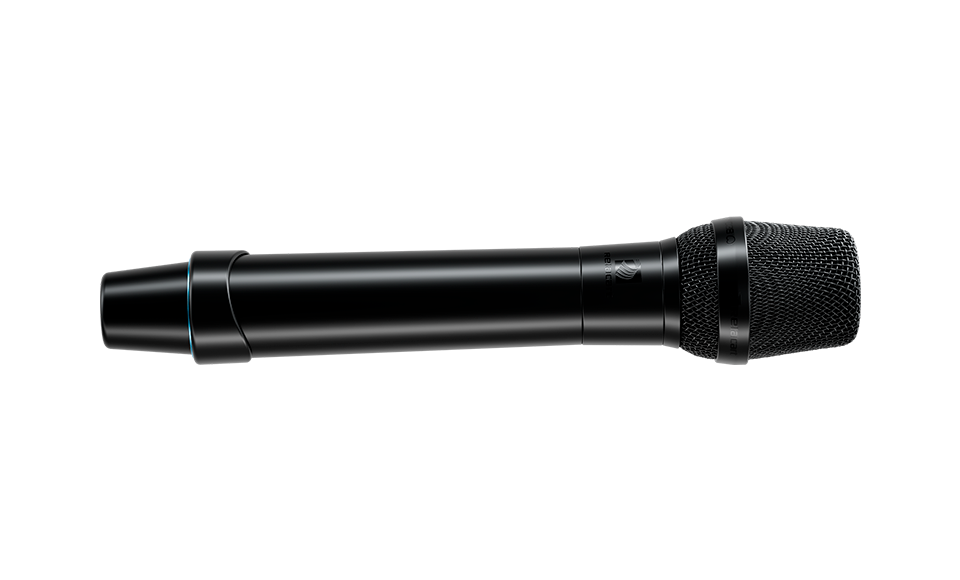

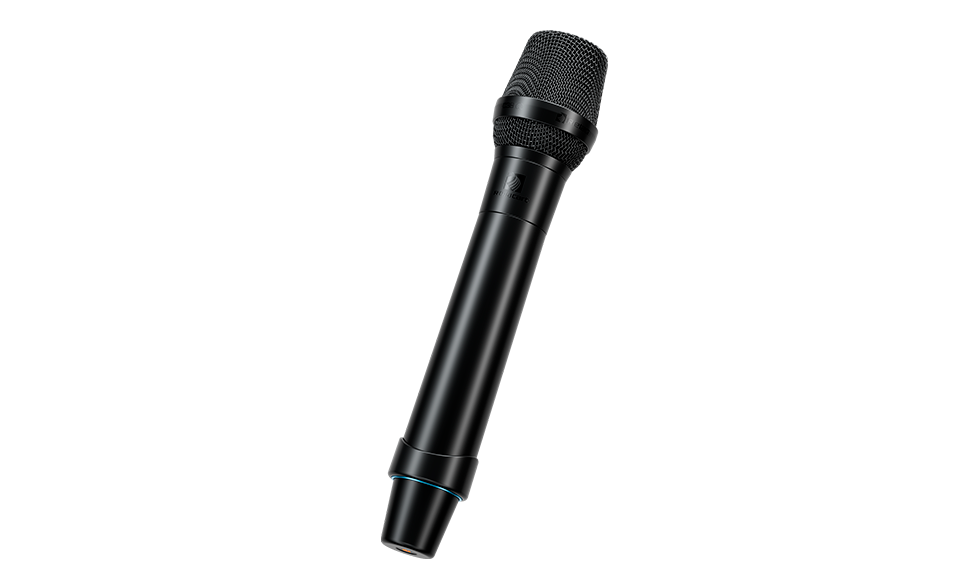

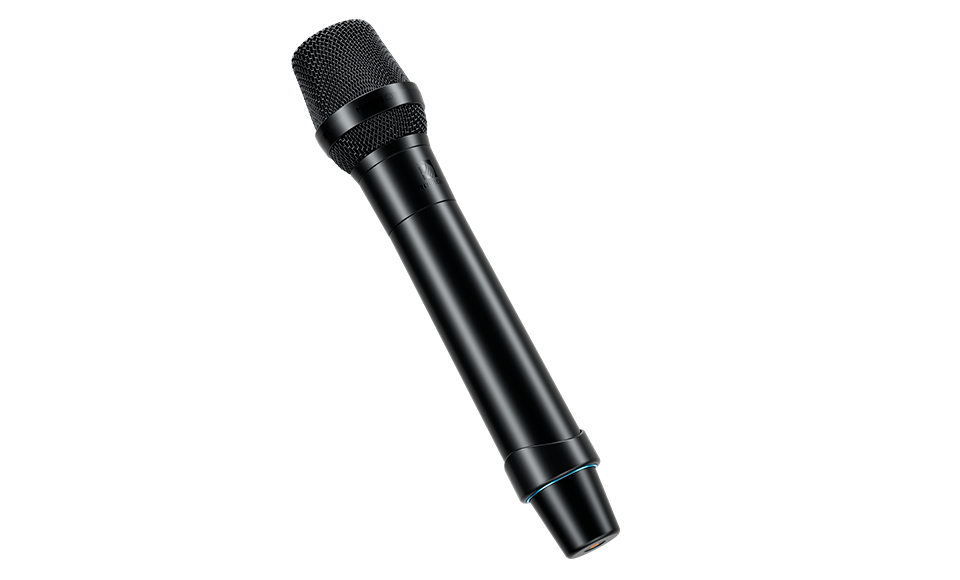

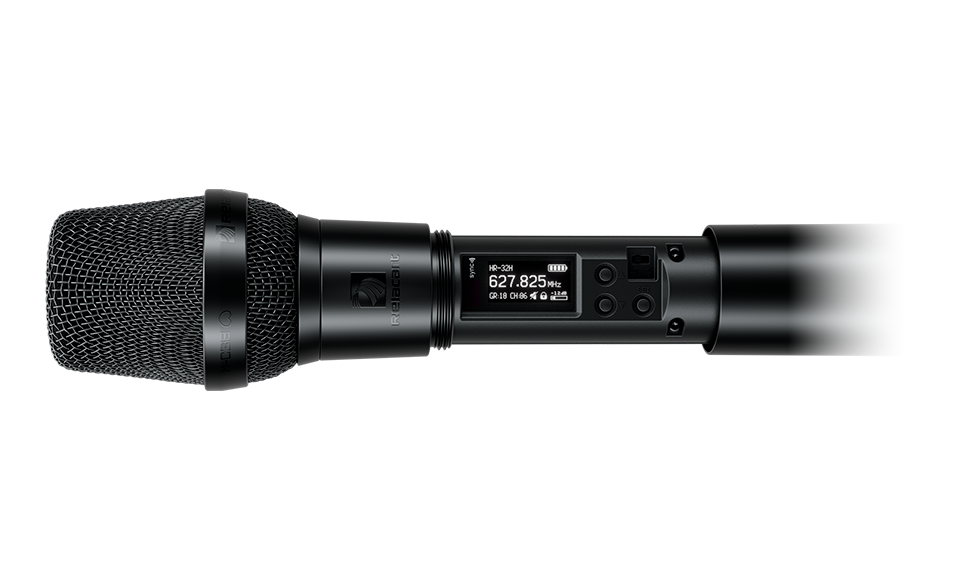

Wireless Handheld Microphone H-32

Inquire Now Next Product

Product Description Details

Product Description

If you want to present a full and clear sound in the performance, you need to equip your HR-32 series wireless microphone system with a matching handheld microphone, and the H-32 wireless microphone is definitely the best choice. The microphone works freely with the latest version of the Relacart HR Series dynamic and condenser microphone capsule modules, is also compatible with many mic capsule module with standard interface of Shure, and its hidden button design effectively prevents accidental touches caused by improper operation during use.

Details

Connection diagram

Polar Pattern

Package Contents

Specifications

Frequency Response

Carrier Frequency Range: 521.25MHz-936.85MHz

Harmonic Radiation:<45dBm

Frequency Bandwidth: Single-band 134MHz

Modulation Mode: FM

Audio Compression: Relacart classic audio compression circuit

Capsule: Dynamic or Condenser, Cardioid

RF Output Power: 10mW/50mW

Battery: AA x2

Current Consumption: 130mA (typical)

Battery Life: Approximately 10 hours

Dimension (mm): 53（Φ）X275 (L)

Weight(without battery): Approximately 322g
