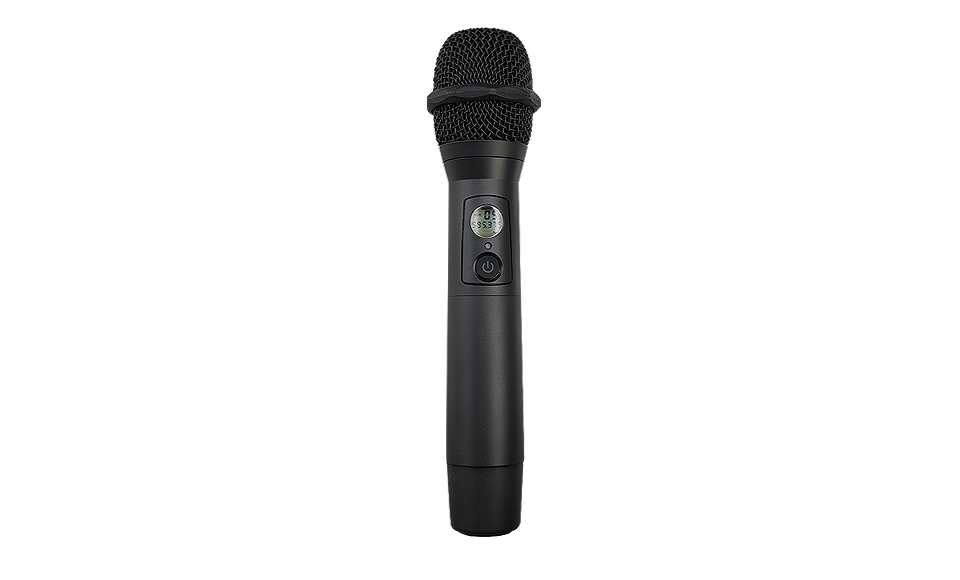

EH-6100

Wireless Handheld Microphone

Product Description Technical Specifications

Product Description

EH-6100 is a handheld microphone that conforms to ergonomic design, has a metal body that is durable and has a long life

Technical Specifications

Carrier bandwidth: 521.25MHz-936.85MHz

Oscillation mode: PLL phase locking frequency synthesis

Transmission power: 5mW/30mW

Carrier error: 0.5KHz

Harmonic radiation: more than 45dB below the main wave

Modulation mode: FM modulation

Nominal/maximum frequency offset: ±45KHz

Maximum input sound pressure: Maximum input -11DBV

Frequency setting: IR Sync

Power supply mode: 2 AA 1.5V batteries

Battery life: >8 hours

Dimensions: 50mm(φ)x260mm(length)

Net weight (excluding battery): about 330g (excluding battery)
