EH-56

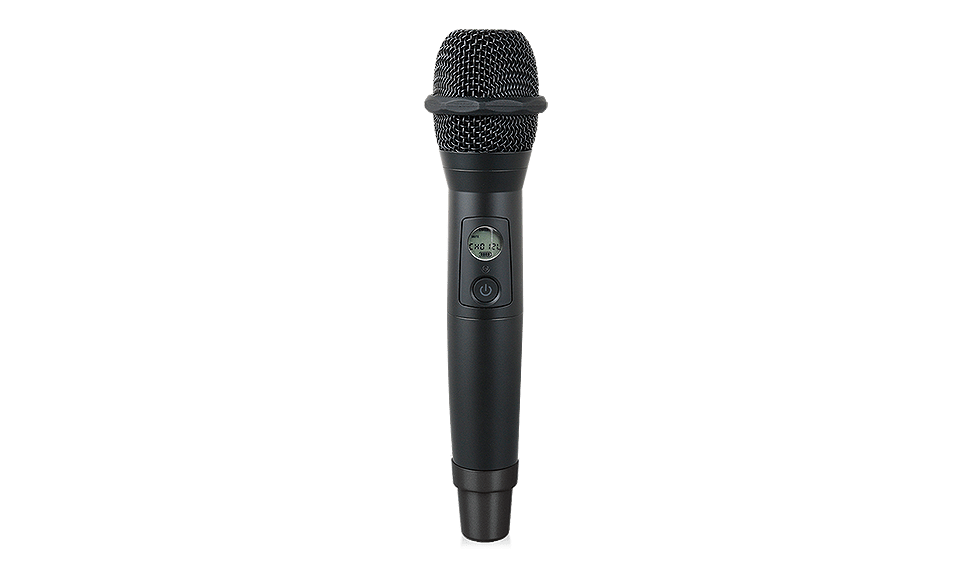

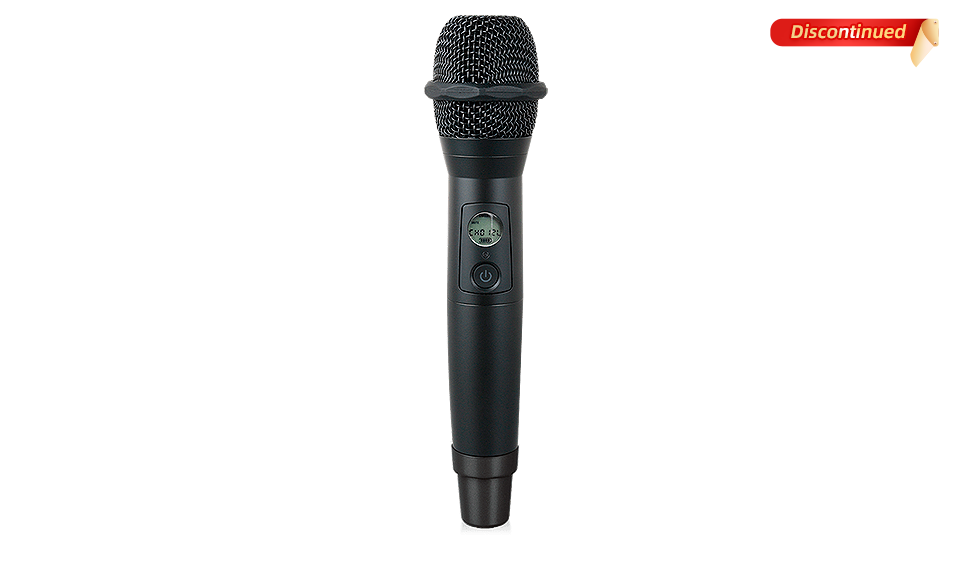

Wireless handheld microphone EH-56

Product Description Technical Specifications

Product Description

EH-56 is a handheld microphone that conforms to ergonomic design, has a metal body that is durable and has a long life.

Technical Specifications

Carrier bandwidth: 521.25MHz-936.85MHz

Oscillation mode: PLL phase locked frequency synthesis

Transmission power: 5mW/30mW

Carrier error: 0.5KHz

Harmonic radiation: more than 45dB lower than the main wave

Handset microphone adopts automatic mute, free fall mute and automatic shutdown function.

Modulation mode: FM modulation

Nominal/maximum frequency deviation: ± 45KHz

Maximum input sound pressure: maximum input - 11dBv

Frequency setting: IR Sync

Power supply mode: 2 AA 1.5V batteries

Battery life: >8 hours

Overall dimension: 50mm（ φ) X260mm long

Net weight (excluding battery): about 330g
