X-10

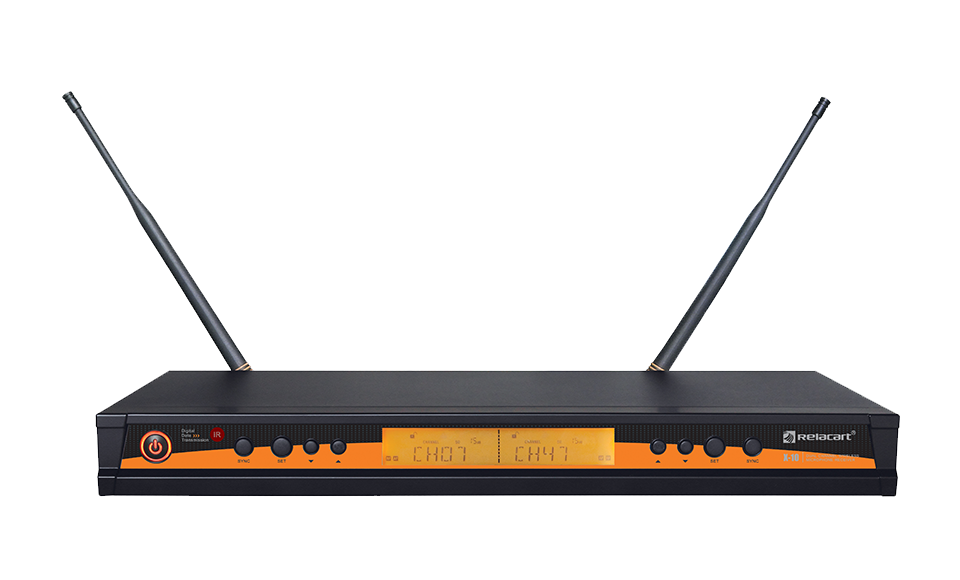

UHF DUAL CHANNEL WIRELESS MICROPHONE SYSTEM X-10

Product Description

X-10 adopt AFS Auto Frequency Selection technology, the receiver according to the actual environment to search out a free frequency, via FM to avoid a numerous sources of interference. achieve transmission and reception signal steadily. Wider Audio Bandwidth, easy to sing without whistle, deduce the song more easily and perfect.

Performance Introduction

Universal Property

ᄋ134 MHz transmitter, the four transmitters with different frequencies band, convenient for adjustment and management in KTV.

Anti-Interference

ᄋPLL(Phase Lock Loop frequency control) design ensures transmission reliability, "NoiseLock" squelch effectively blocks stray RF.

Super Wide Frequency Range

·UHF554-963MHz operating frequency range, with AFS ”Auto Frequency selection” function, dual-channel receiving, frequency -selective greater.

AFS(Automatic Frequency Selection)

ᄋPress the "AFS"(Auto Frequency Selection) button 3 sec and the receiver will auto-scan and lock on to an open, interference-free frequency.

IR Infrared

ᄋPress [lR] button to upload automatically the receiver frequency to the transmitter.

Stable Signal

·The system is controlled by microcomputer to find noninterference frequency , making the whole system more stable

Energy Conservation

·Accurate low consumption current design, battery life is twice as common one.

Technical Specifications

Main Frame Size: EIA STANDARD 1U

Channels: Dual Channel

Frequency Stability: +0.005%, Phase LockLoop frequency control

Carrier Frequency Range: UHF 554-936 MHz

Modulation Mode: FM

Operating Range: 60M typical ( in open space)

Oscillation: PLL synthesized

Sensitivity: 6dBpV, S/N>60dB at 25 deviation

Band Width: 32MHz

Max.Deviation Range: +45KHz

S/N: >105dB

T.H.D: <0.9% @1KHz

Frequency Response: 63Hz~18KHz+3dB

Power Supply: DC 12V/7W

Weight: 1.8KG

Dimension(mm):: 410(W)X 43(H)X 206(D)

Output Connector: Balanced XLR outputs &Unbalancedline output(6.3mmjack)
