Main Frame Size: EIA standard 1U
Frequency Stability: ±0.005%

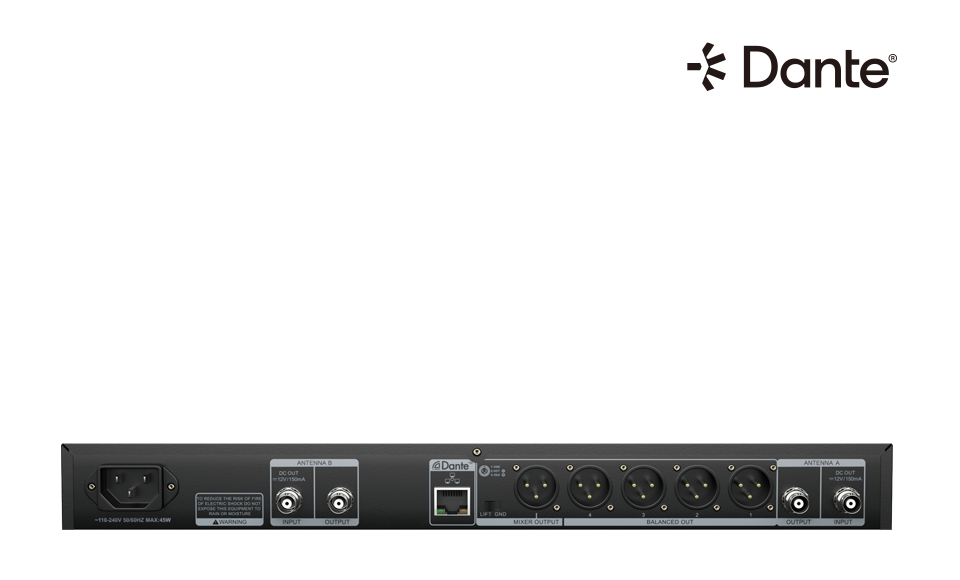

External Antenna Interface: Dual BNC support +12V/150mA output
External Audio Interface: Mixed balanced audio output, BALANCED single channel balanced audio output
Ethernet Port: Support Dante communication protocol
Carrier Frequency Range: 521.25MHz-936.85MHz
Oscillation: PLL synthesized
Sensitivity: 5dBu , S/N>60dB at 25KHz deviation
Bandwidth: 130MHz
Max. Deviation Range: ±45KHz
Audio Sampling Rate: 96KHz 24-bit
Audio Expansion: Relacart DSP Digital Audio Extension Algorithm
S/N: >105dB
T.H.D:<0.7%@1KHz
Frequency response: 80Hz～18KHz ±3dB
Operation Range with line of sight approx: 80 meters
Power Supply: AC input, ICE connector, 100-240 VAC
Dimensions (mm): 480（W）x350（D）x43（H）
