EH-38

Handheld Ttransmitter

Product Description Technical Specifications

Product Description

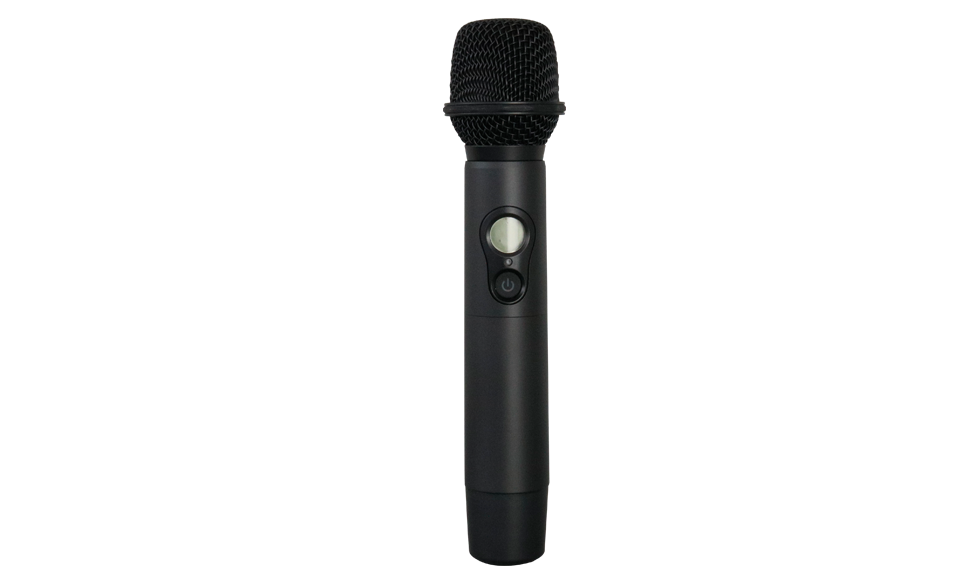

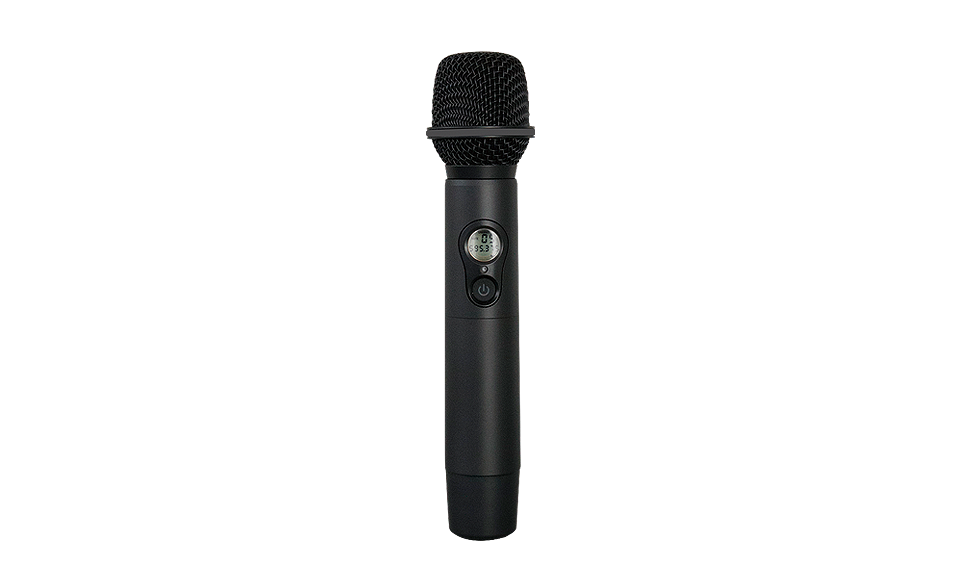

EH-38 is a handheld microphone that conforms to ergonomic design, has a metal body that is durable and has a long life

Technical Specifications

Switching bandwidth: 521.25MHz-936.85MHz

Oscillation: PLL synthesized

RF Output Power: 5mW/30mW

Carrier deviation: 0.5KHz

Harmonic radiation: ≤45dB

Modulation: FM

Nominal/ Peak deviation: ±45KHz

Max. Input Level: Maximum input - 11dBv

Frequency Set-Up: IR Sync

Power Requirements: 2X AA 1.5V batteries

Battery Life: >8 hours

Dimensions(mm): 50(Φ) X 260(L)

Net Weight (without battery): About 330g
