Main Frame Size: EIA Standard Rack 1U
Receiving Channel: Dual Channel
Receiving Mode: True Diversity
Frequency Reliability: ±0.005%(-10-50°C)

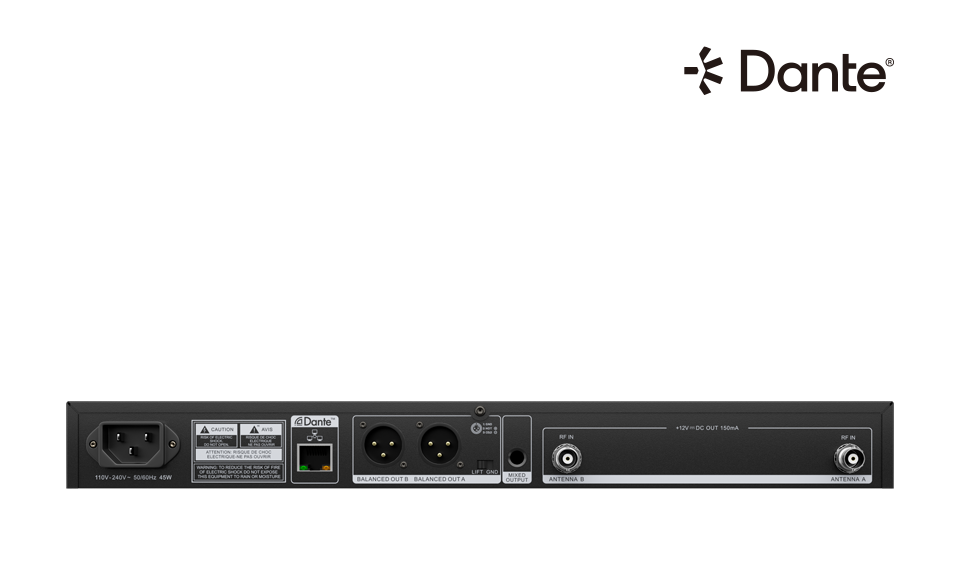

External Antenna Interface: BNC, DC 12-18V/150mA output
External Audio Interface: Mixed 6.35mm unbalanced , independent channel XLR output
Ethernet Port: Support Dante communication protocol
Receiving Frequency Band: 521.25MHz-936.85MHz
Working Mode: PLL frequency synthesis oscillation and secondary mixing reception technology
Receiving Sensitivity: When the offset is equal to 25KHz and 5dBu is input, S/N>60dB
Bandwidth: Single channel 130MHz（depending on the region）
Max. Deviation: ±50KHz
Audio Sampling Rate: 96KHz 24-bit
Audio Extension: Relacart DSP digital audio extension algorithm
Comprehensive S/N: >105dB
Comprehensive T.H.D:<0.7%@1KHz
Frequency Response: 65Hz-18KHz±3dB
Working Range: 100M Typical(in open space
Power Mode: DC 12-18V
Dimension(mm): 480(W)x43(H)x350(D)
