UR-112D

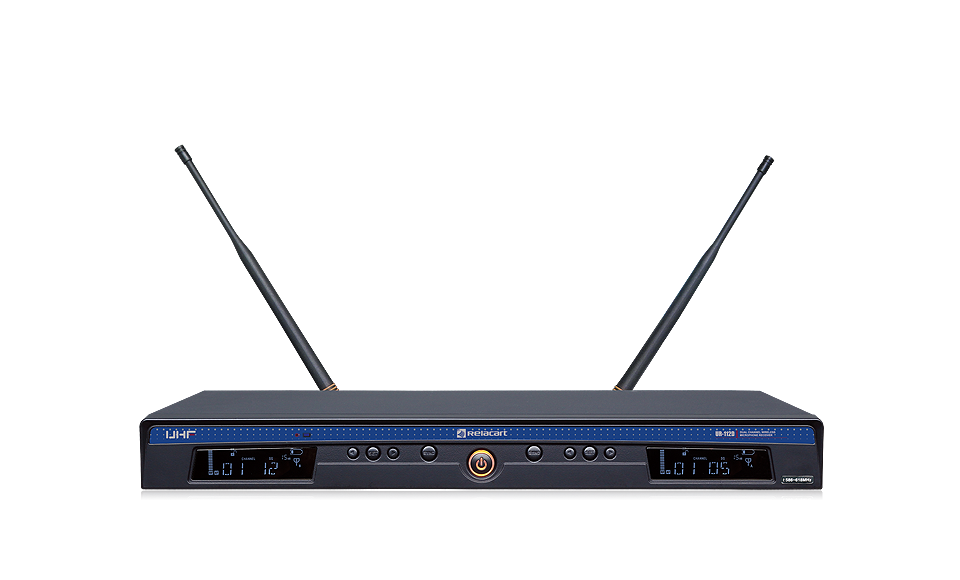

Dual Channel Wireless Receiver

Product Description Technical Specifications Components

Product Description

UR-112D series is a dual-channel true diversity wireless microphone, true diversity receiving mode is more stable, automatic signal selection, eliminating receiving dead angle, to avoid the phenomenon of frequency drop. This series is specially designed for singing, with wide frequency response, rich sound quality, roundness and fullness, and powerful vocal expression. Cordioid directional sound pick-up, high sensitivity, while reducing environmental noise pick-up, high fidelity timbre, suitable for karaoke, bars, nightclubs, clubs, and small to medium size performance.

Technical Specifications

Main Frame Size: EIA standard 1U

Channels: Dual Chnnel

Frequency Stability: ±0.005％(-10℃~50℃)

Carrier Frequency Range: UHF 521.25MHz-936.85MHz

Modulation Mode: FM

Oscillation: PLL synthesized

Sensitivity: 6dBμV, S/N>60dB at 25 deviation

Band Width: 32MHz

Max Deviation Range: ±45KHz

S/N: >100dB

T.H.D:<0.5％@1KHz
