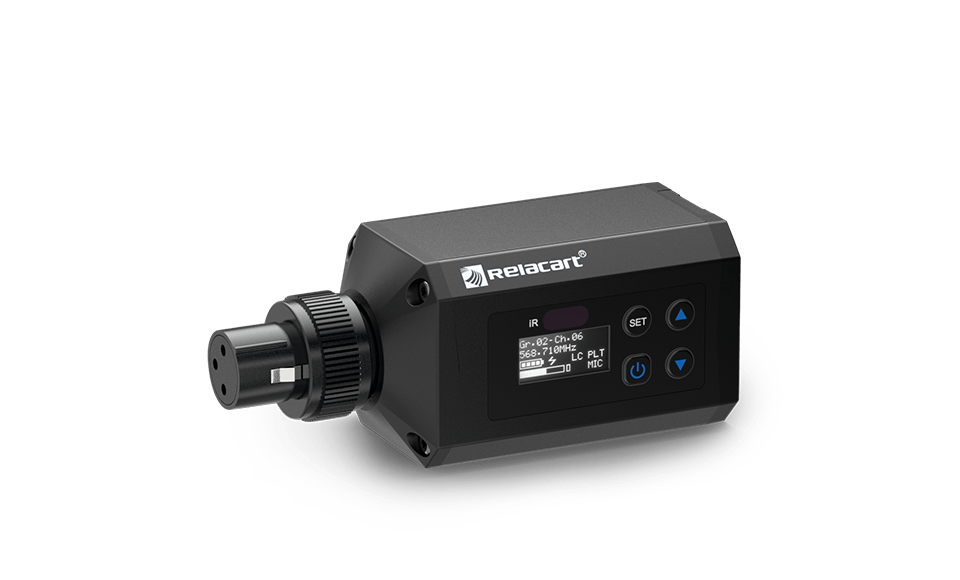

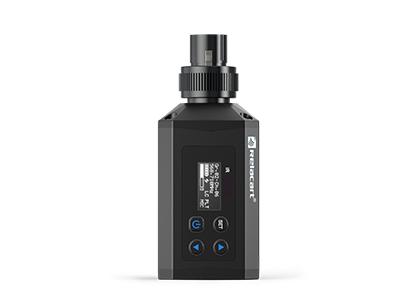

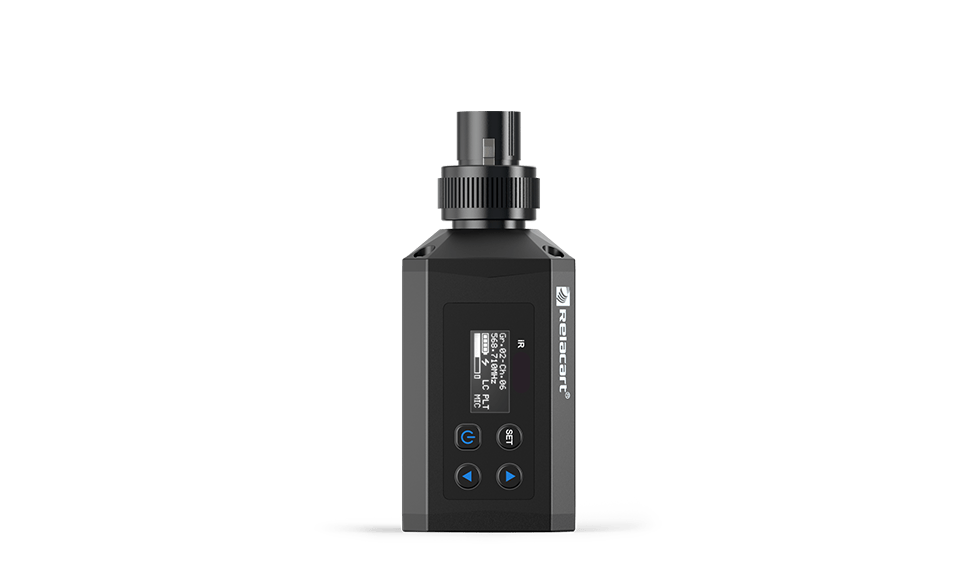

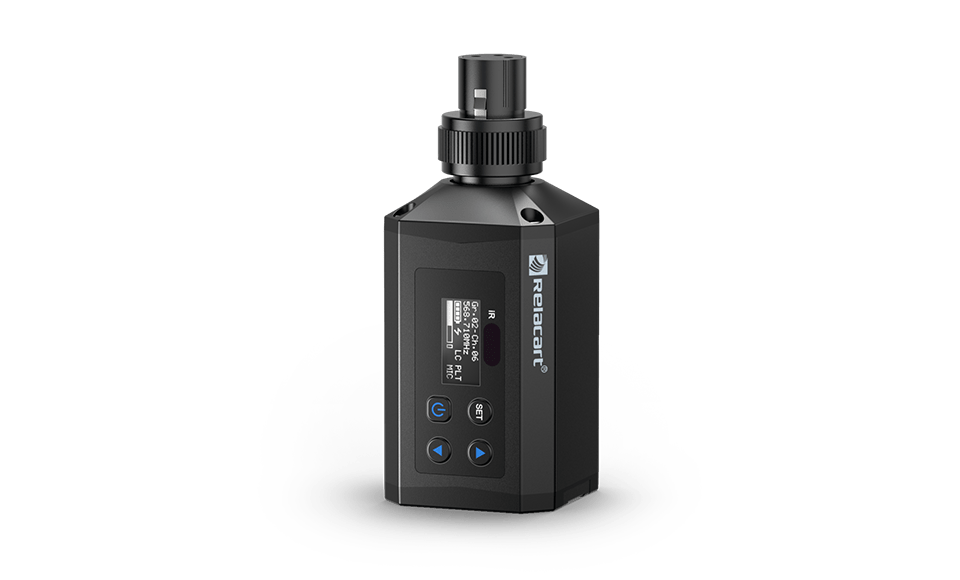

MS1-P

Wireless Plug-on Transmitter

Carrier Bandwidth: 470MHz-960MHz

Carrier Error: 0.005%

Nominal/Maximum Frequency Deviation: ±65KHz

Inquire Now

Product Description Performance Introduction Technical Specifications

Product Description

Performance Introduction

Carrier Bandwidth: 470MHz-960MHz

Oscillation Mode: PLL frequency synthesis

Transmission Power: 13.5 dBm

Carrier Error: 0.005%

Power Supply:AA 1.5V x2

Nominal/Maximum Frequency Deviation: ±65KHz

Frequency setting: Manual button setting or infrared transmission

Input Gain Adjustment Range: 4 adjustable settings, every 3dB step

Harmonic Radiation: -32dBm

Modulation:FSK

Max. Input Level: 250mV

Input Impedance: 2.2KΩ

Battery Life: ≥11hours

Normal Working Current: 130mA

Dimensions: 110 x 42 x42(mm)

N.W.(without battery): 125g

Technical Specifications

Carrier Bandwidth: 470MHz-960MHz

Carrier Error: 0.005%

Nominal/Maximum Frequency Deviation: ±65KHz
