MS1

UHF Single Channel Wireless Microphone System

Inquire Now Next Product

MS1

Product Description Details Performance Introduction Accessories Support

Product Description

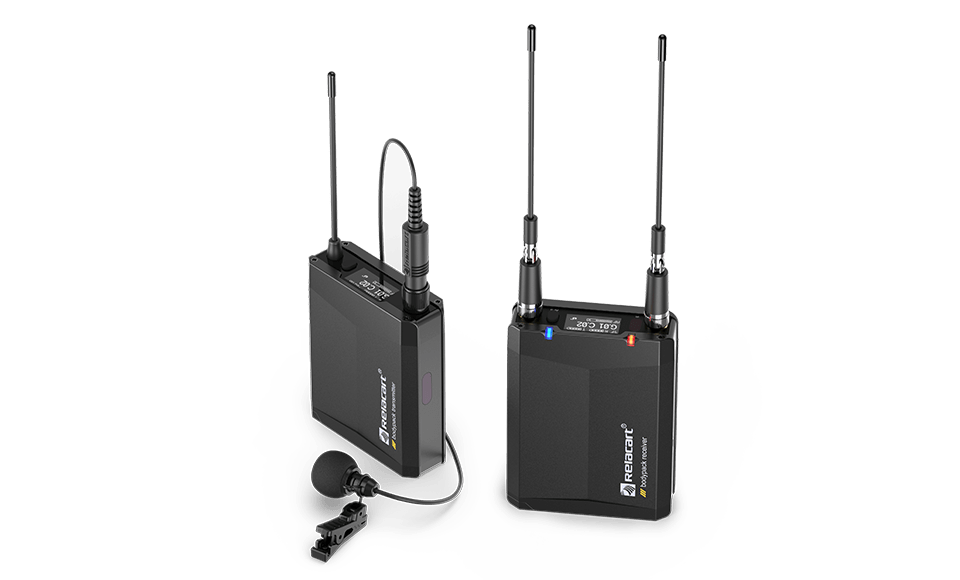

Relacart MS1 is a multifunctional, portable, rugged and durable UHF wireless microphone system, compatible with smartphones (3.5mm interface), Digital/SLR cameras, camcorders, tape recorders, tablet computers and other equipment to assist in picking up high-fidelity audio. It is suitable for various professional applications such as interviews, micro video recording or commercial performances.

Details

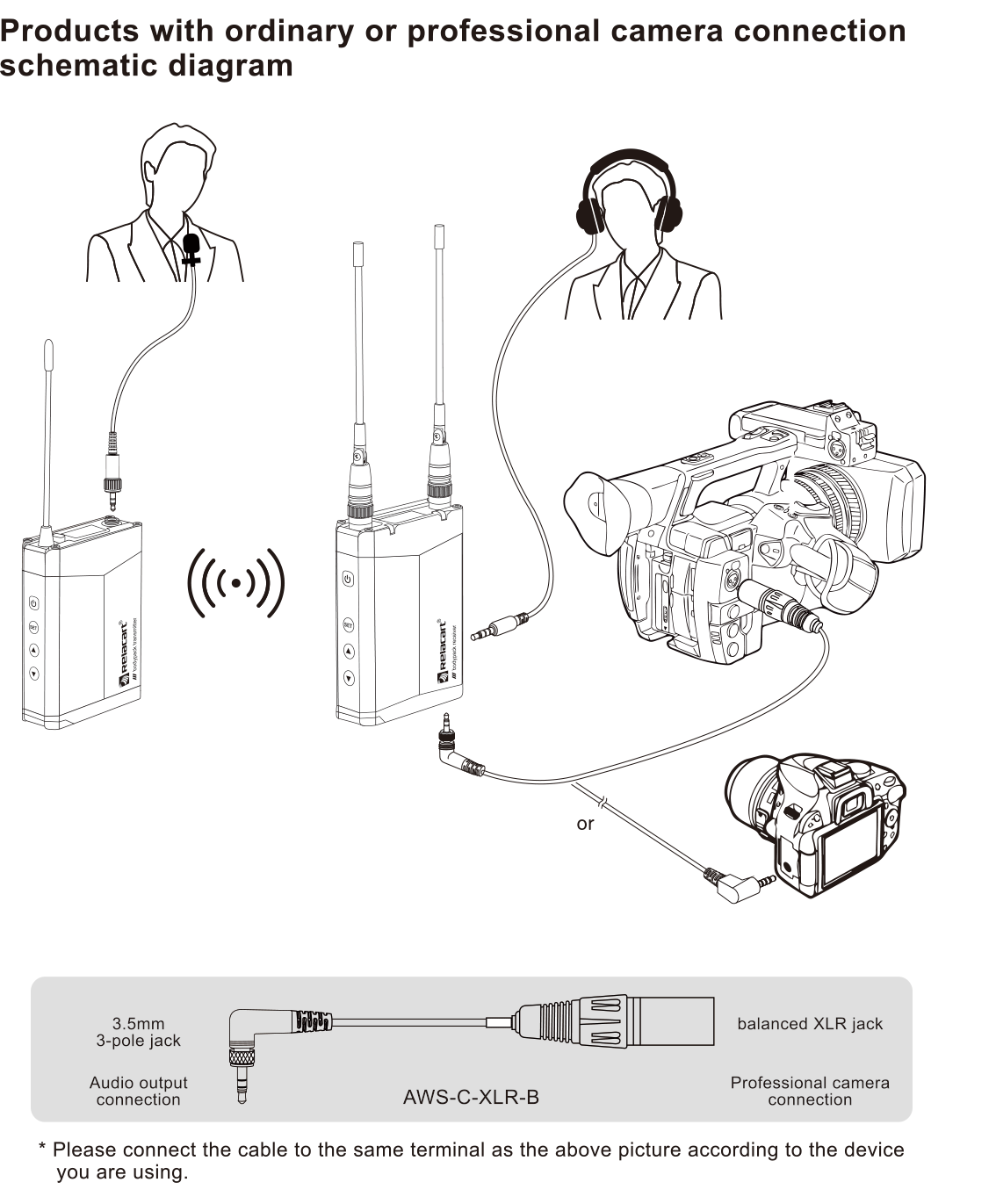

Connection diagram

Polar Pattern

Frequency Response

Specifications

Package Contents

Launcher

Wireless frequency range: 521.25MHz-936.85MHz

Working range: about 50mConnector: 3.5mm

RF power output: 30mW

Reference input level: - 26 dBV

Frequency response: 80Hz-15kHzSignal to noise ratio:<100dB

Pilot frequency: 32.768kHz

Power requirement: 2-3.6V

Operating temperature: 0 - 55 ° C

Dimensions (H x W x D): 71.1 x 61.0 x 20.3mm (without antenna)

Weight: 84g

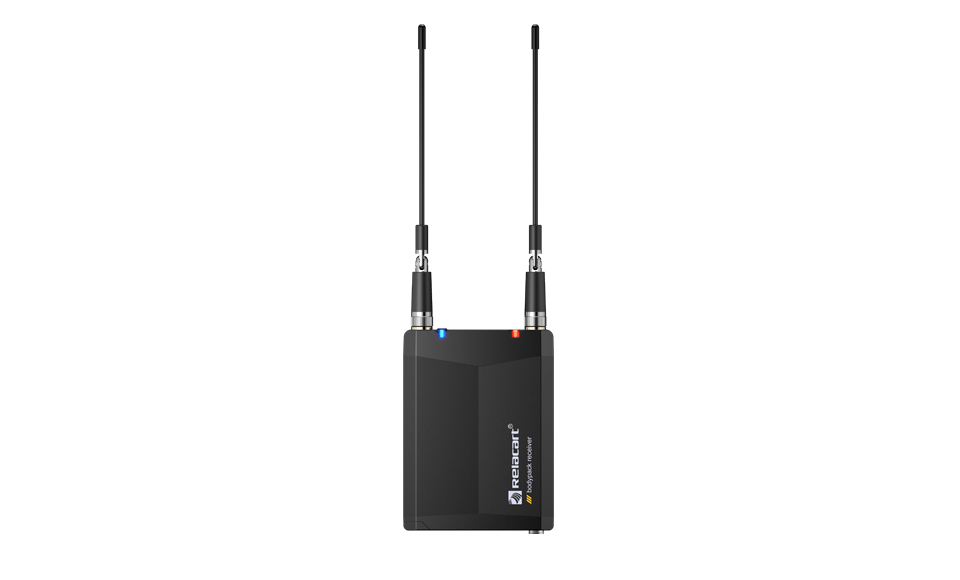

Receiver

Wireless frequency range: 521.25MHz-936.85MHz

Working range: about 50m

Connector: 3.5mm

Frequency response: 80Hz-15kHz

Total harmonic distortion:<0.9%

Pilot frequency: 32.768KHz

Power requirement: 2 - 3.6V

Operating temperature: 0 - 55 °

Dimensions (H x W x D): 78.7 x 58.4 x 20.3mm (without antenna)

Weight: 116g

Performance Introduction

Long Distance Pickup

The pickup distance can be up to 50m (50m in an open and undisturbed environment and 30m in an obstacle environment).

Adjustable Level

The volume of receiver and transmitter can be adjusted at will to adapt to the volume level of different equipment.

Wide Compatibility

Widely compatible with smart phones, digital/SLR cameras, camcorders, recorders, tablets 10 switchable frequency points for operation without environmental interference.

UHF Wireless Transmission Band

UHF wireless transmission provides high fidelity audio source.

Real-time Monitoring

Real time monitoring with headphones.

Low Power Precision Circuit

The built-in high-precision circuit can effectively prolong the battery life.

Accessories

MS1-P

Wireless Plug-on Transmitter

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

2801-300 MS1 V1.0(210911)
