MS-923

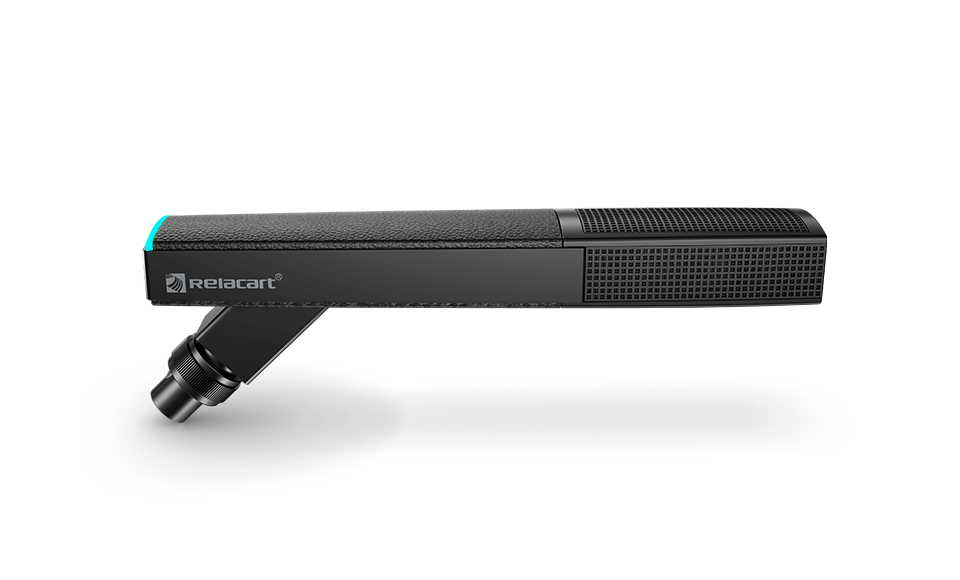

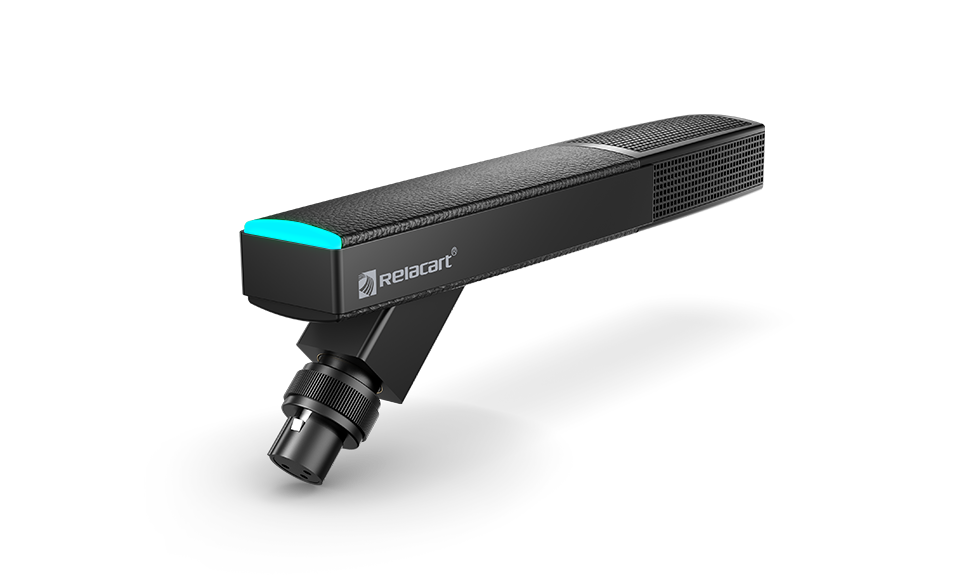

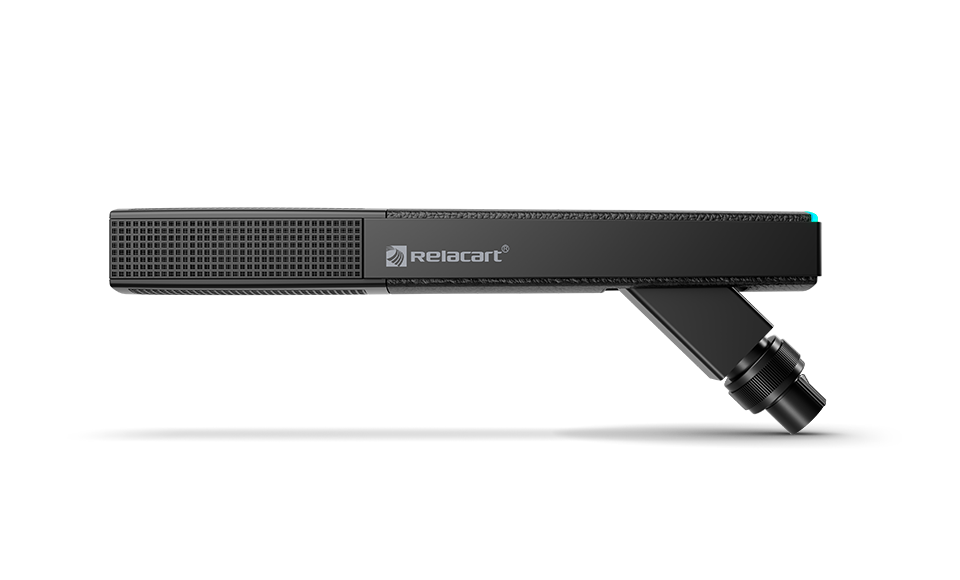

Detachable Square Microphone MS-923

Inquire Now

MS-923

Product Description Technical Specifications

Product Description

The MS-923 is a microphone with a three pin XLR female. The new square microphone tube and condenser cardioid microphone capsule can accurately pick up the sound and reduce the interference of environmental noise by using the principle of low terminal sensitivity. With 48V phantom power supply, it can support multiple bases within the rated voltage, and provide stable power supply for the microphone to reduce the occurrence of faults.

Technical Specifications

Microphone type: capacitive cardioid pointing Frequency response: 100Hz-15kHz

Signal to noise ratio:>65dB/1kHz at 1Pa

Sensitivity: - 38 dB/1kHz at 1Pa

Maximum input sound pressure: 125dB SPL/1kHz at 1% THD

Dynamic range (typical): 100dB, 1KHz at the highest sound pressure

Output impedance: 420 Ω

Power supply: DC24-52V phantom power supply, power consumption 5mA (typical)

Interface: three pin balanced XLR female with lock
