Mi1

Single Channel Wireless Microphone System

Inquire Now

Mi1

Product Description Performance Introduction Technical Specifications FAQ

Product Description

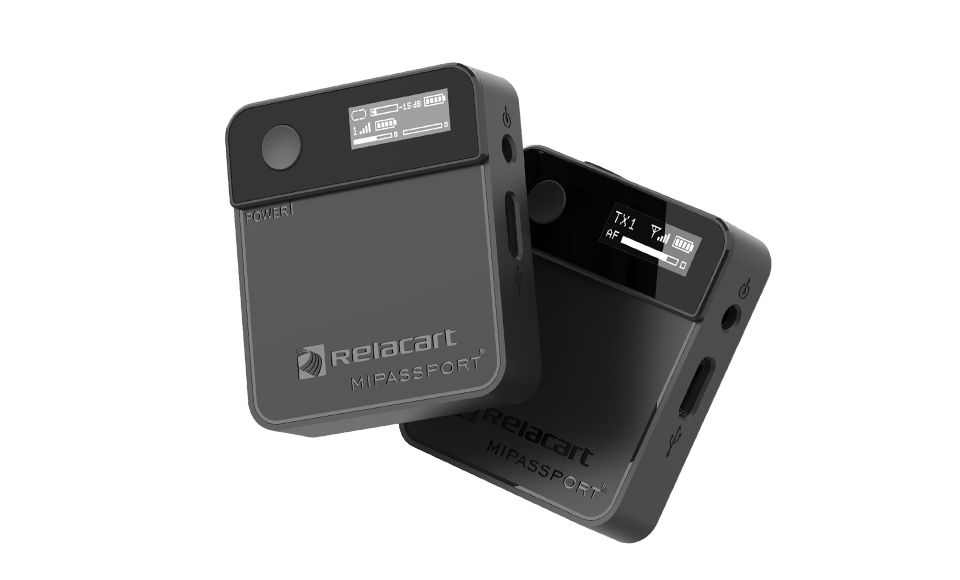

The Mi1 wireless microphone system uses ISM's global unlimited 2.4G frequency band for transmission. The receiver and transmitter are automatically paired successfully within 2 seconds after power-on, and the effective use distance can reach 50 meters (open and open places). Both receiver and transmitter use OLED displays to display current product information. The output volume is adjustable. The 3.5mm TRS output is used to connect digital/SLR cameras, video cameras, video recorders, tablet computers, mobile phones and other devices to assist in picking up high-fidelity audio.

Performance Introduction

Super Wide Frequency Range

Adopt 2.4G Global Unlimited Frequency Band Transmission.

HD OLED Display

Both receiver and transmitter use high brightness OLED display.

Easy to carry

Small size, easy to carry.

Support 5V Fast Charging

Built in lithium battery, charging with USB 5V.

Flexible Expansion

The built-in electret microphone also supports an external lavalier microphone with adjustable output volume.

Widely Compatible

It is widely compatible with computers, digital/SLR cameras, camcorders, recorders, tablets and mobile phones.

Technical Specifications

Transmission frequency band: 2400MHz ~ 2483.5MHz

Modulation method: frequency hopping / digital FSK (GFSK)

Transmit power: 10dBm

Receiving sensitivity: -86dBm

Antenna method: Built-in F type antenna

Microphone pickup method: omnidirectional (built-in microphone and external lavalier)

Audio frequency response: 100Hz ~ 20KHz ± 3dB

Dynamic range: 93dB (electrical performance)

Signal to noise ratio: 93dB (A weighted)

Maximum input voltage: 97dB SPL

Display mode: OLED display, showing battery power, current RF, AF status

Power requirements: built-in lithium battery, standard USB 5V charging via TYPE-C interface

Battery life:> 7 hours

Input and output interface: 3.5mm TRS

Working temperature: -5 ° C to + 50 ° C

Dimensions: 50 mm * 44.5mm * 15mm
