HR-30S

Single-Channel True Diversity Wireless System
Inquire Now Next Product

HR-30S

Product Description Performance Introduction Technical Specifications Components Accessories FAQ

Product Description

HR-30S true diversity wireless microphone system is a wide bandwidth true diversity wireless audio system that designed for the large-scale live show.Powerful function,reliable performance,can get the best effect in different kinds of complicated professional performance.

Performance Introduction

Intelligent Management

On-board Ethernet interface for monitoring and controlling system parameters with *“RWW” WIRELESS MANAGEMENT SYSTEM.


Energy Conservation

Precision low-power circuit design, battery life is twice as common.


Super Wide Frequency Range

32MHz bandwidth. 1280 selectable UHF frequencies and True Diversity reception for interference-resistant operation.


IR Infrared

Press [IR] button to upload automatically the receiver frequency to the transmitter.


Anti-Interference

PLL (Phase Lock Loop frequency control) design ensures transmission reliability, "Noise Lock" squelch effectively blocks stray RF.


AFS Infrared Frequency Comparison

Press the "AFS"(Auto Frequency Selection) button 3S and the receiver will auto-scan and lock on to an open, interference-free frequency.

Technical Specifications

Main Frame Size：½ EIA standard 1U


Carrier Frequency Range：521.25MHz-936.85MHz


Receiving Channel：Single Channel


Receiving Mode：True Diversity


Frequency Reliability：±0.005%(-10~50℃)


Bandwidth ：32MHz


Audio Output Jack：XLR balanced socket and Φ6.3mm unbalanced socket


Antenna Socket Type：BNC


Control Cable：4P telephone line connect to the U485, U485 USB connect to computer.


Operationg Distance：80M typical(in open space)


Oscillation：PLL synthesized


Sensitivity：5dBμV,S/N>60dB at 25KHz deviation


Max. Deviation：±45KHz


Power Supply：DC-12V / 1A


Dimension(mm)：206(w)×206(D)×43(H)


Weight Approximately：1.0kg



Accessories

Wideband 4-Channel Antenna Distribution System

R-14D

Wideband 4-Channel Antenna Distribution System

Wide-band Directional Antenna

R-32AU

Wide-band Directional Antenna

Wide-band Directional Antenna R-22AU

R-22AU

Wide-band Directional Antenna R-22AU

Wide-band Directional Antenna R-20U

R-20U

Wide-band Directional Antenna R-20U

Power Supplier for Antenna

R-20P

Power Supplier for Antenna

Antenna Booster

R-20A

Antenna Booster

Bar Antenna

R-43W

Bar Antenna

Antenna Divider

R-12S

Antenna Divider

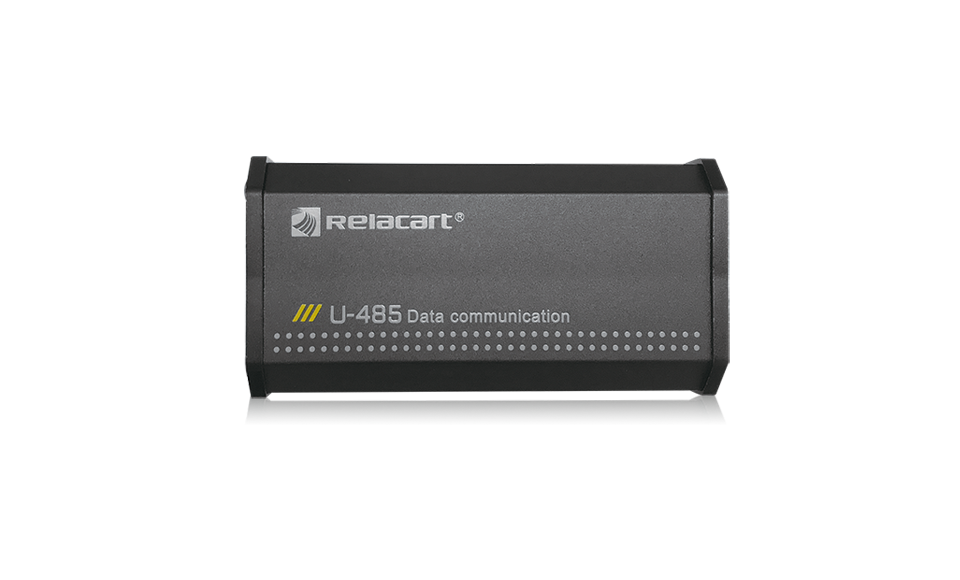

Data Exchange Equipment

U-485

Data Exchange Equipment

After-sales & maintenance Contact
Submit directly here or contact customer service by phone/mail

Support

Operation manual

HR-30S 31S Operation manual V2.0（221112）

Product Brochure

HR-30S-Brochure
