FM-200

Flush-mount Microphone Socket

Inquire Now

FM-200

Product Description Technical Specifications

Product Description

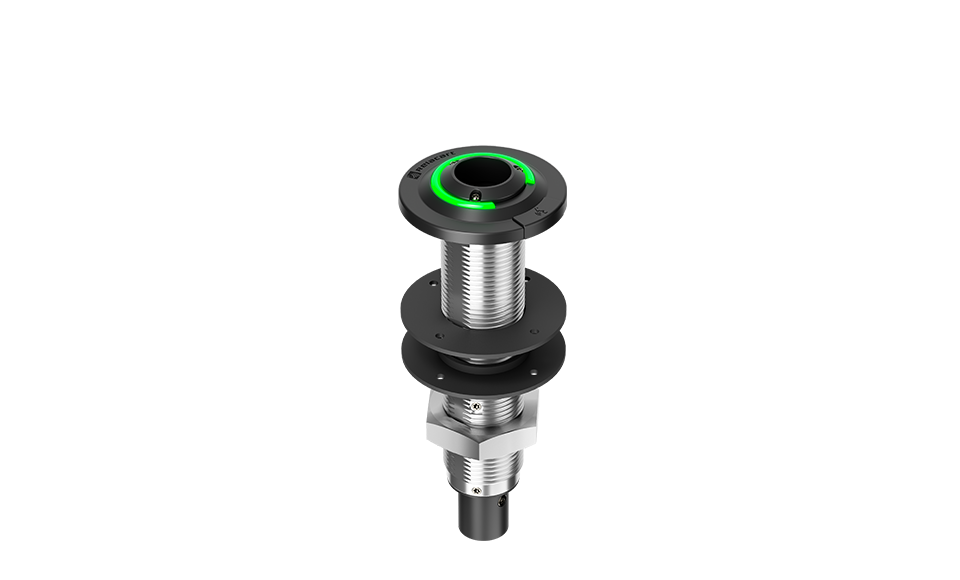

FM-200 is a recessed, conference microphone socket designed for desktop installation. It has a touch switch control and is also equipped with a ring-shaped LED status indicator, which displays green when the microphone is in the radio state and red when it is muted. The input end is a 3-pin XLR female socket, and the output end is a 3-pin XLR male header.

Technical Specifications

Frequency response: 50-20,000HZ Mute attenuation:<50dB at 1kHz/Pa

LED indicator: radio status is green / mute status is red

Phantom power supply: DC 20-52V, power consumption 4.5mA typical

Switch: touch mode, mute state by default when power on

Weight: 310g

Dimensions: 59.2x59x156.5mm

Input interface: 3-pin XLR female

Output interface: 3-pin XLR male

Random accessories: anti-vibration rubber*1, metal fixing ring*1
