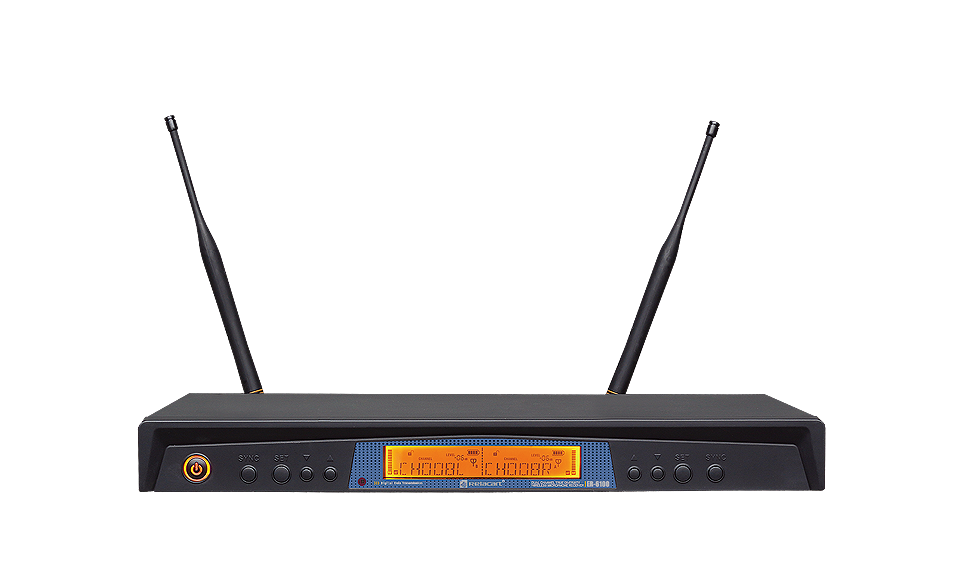

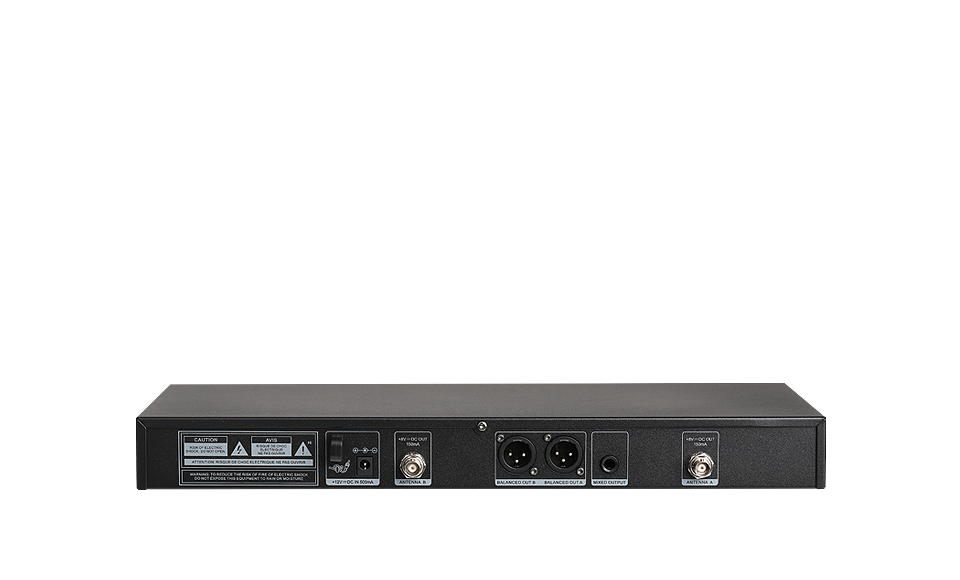

ER-6100

Dual Channel Wireless receiver

Product Description Technical Specifications

Product Description

ER-6100 is a true diversity wireless receiver independently developed by Relacart; optional handheld microphone, body bag lavalier microphone or head-mounted microphone, desktop gooseneck conference microphone; adopt true diversity FM superheterodyne receiver to ensure RF reception The stability of the signal and the anti-interference of the receiver itself; the operating frequency range is 521.25MHz-936.85MHz according to the radio wave control laws and regulations of various countries.

Technical Specifications

Receive Bandwidth: 521.25MHz-936.85MHz

Reception mode: FM superheterodyne true diversity reception

RF Sensitivity: When the offset is equal to 25KHz, S/N≥60dB when input 5dBv

Squelch adjustment: 10dB to 40dB, 5dB per step

Frequency synchronization method: IR Sync

Maximum output level: maximum output +11dBV

Output level adjustment range: -6dB to +18dB, 3dB per step

Power supply mode: DC12V/1A

Normal Operating Current: DV12V, 330mA

Dimensions: 410mm(W)x43mm(H)x206mm(D)

Net weight: 1.8Kg
