MIXX12

Digital Mixer with Dante Interface

Product Description Performance Introduction Technical Specifications FAQ

Product Description

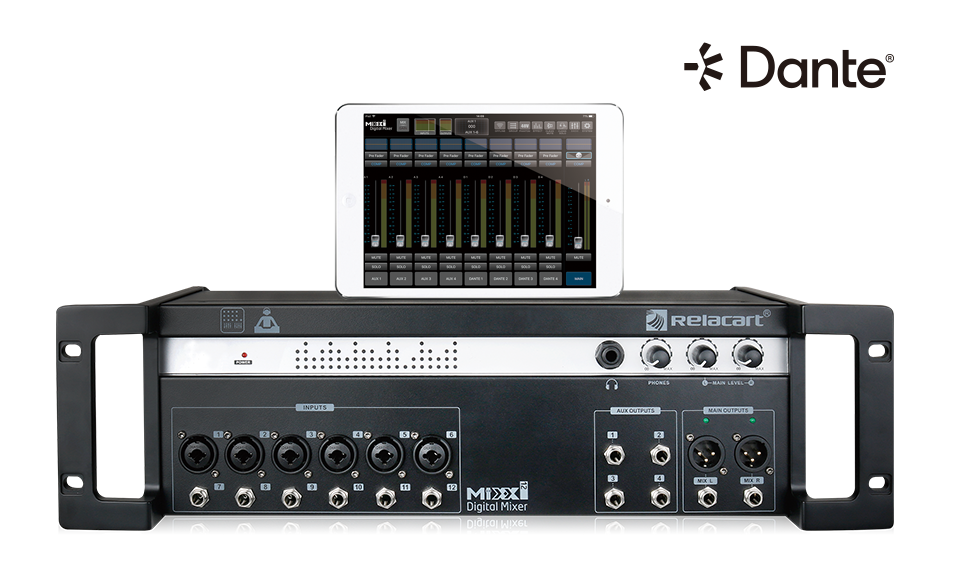

MIXX12 Digital Mixer is a 12 inputs and 6 outputs digital wireless control mixer, is a new mixer through the tablet computer application control, can support all iPad, Windows 8 tablet .Using Wi-Fi to connect, anywhere in the wireless network within the scope of control. With 12 channels of broadcast quality microphone amplifier (including 4 modular jack), main and aux outs. Adopt high performance 40 bit floating-point digital signal processor, 24 bit AD/DA converter. Built-in effects processor, compression and limiter, gate plug-ins, parametric equalizer.. Wireless control mode makes you can walk between the stage and the crowd. It is 16-channel digital mixer that with the iPad and tablet computer touch.

Performance Introduction

Multiple analog inputs and outputs

12 analog inputs, 6 analog outputs, 4 Dante inputs, 4 Dante outputs

Easy to operate

Easy to operate software control, quick to use, novel and fashionable. Say goodbye to the dense and difficult control panel of the traditional mixer

Locking function

Program or snapshot call out, security locking function

Support multi platform control

Built in digital mixer that can be controlled by WIFI, iPad, iPhone and Windows. Up to 10 control devices can be used at the same time

Technical Specifications

Sampling rate：24bit，48kHz

Frequency respond：20 Hz to 20 kHz +/–1 dB

Latency：1.5 ms

T.H.D：<0.005%

Noise-Mic input to main output：

-72dBv Single channel-Max fader(A weighted)

-90dBv Single channel-Min fader(A weighted)

Input crosstalk(adjacent channel)：<–120 dB @1 kHz

S/N：93dB One channel and main fader at unity(A-weighted)

Dynamic Range：110dB One channel and main fader at unity(A-weighted)

CMRR：>70 dB @1 kHz

Input Impedance：3.3kΩ（XLR Balance）;30 kΩ（1/4″）

Gain：0 to 60 dB

Output Impedance：600Ω（XLR Balance）

Max Output Level：+21 dBu（XLR Balance）

Power Supply：DC 12V-15V （3.5A）

Dimension(mm)：488（L） x 132（H） x 191（D）

Weight: Approximately：4kg

After-sales & maintenance Contact

Submit directly here or contact customer service by phone/mail

Support

Operation manual

MIXX12 Operation Manual

Product Brochure

MIXX12-Brochure
