MIXX8.6

8-Channel Digital Mixer

Product Description Performance Introduction Technical Specifications FAQ

Product Description

MIXX8.6 digital mixer designed with 8 inputs and 6 outputs. Built-in digital audio processing functions, such as effect, EQ , compressor, etc. And it is equipped with a USB interface, which can transmit audio by mobile phones and computers. It has 16 types of digital reverb effects, which can be easily adjusted for various occasions with the encoder. MIXX8.6 has a simple and exquisite appearance, with reasonable layout of function buttons, suitable for various small-scale performances, conferences, speeches, KTVs, live streaming, and other occasions.

Performance Introduction

Multifunctional Panel

·The mixer panel can turn on and off various functions, including EQ, mute, compressor, reverb, 48V phantom power, etc.

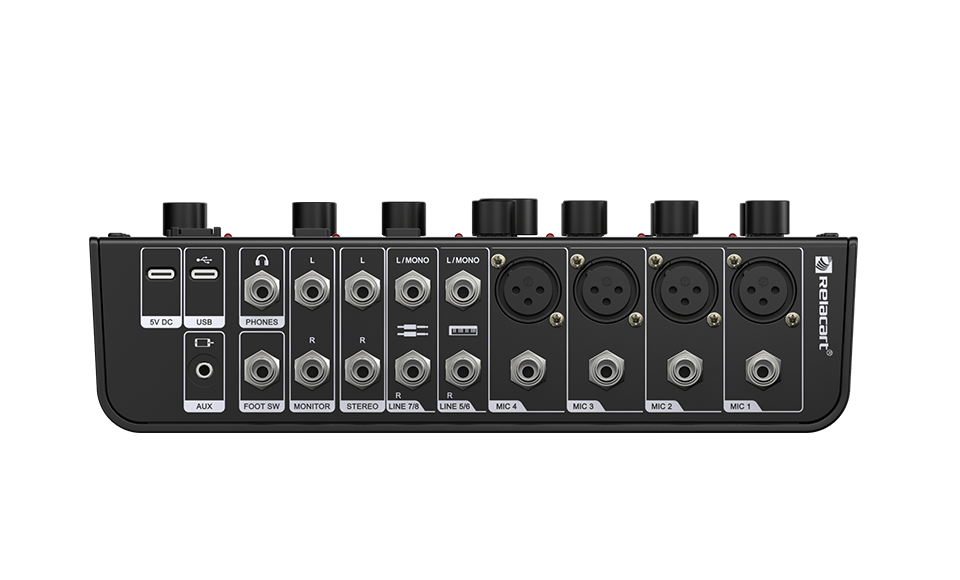

Eight Channel Input

·1-4 input channels can select MIC or LINE input source. 3 and 4 input channels can be set as instrument input sources. Channel 5-8 is stereo input,can switch H/L impedance.

48V Phantom Power Supply

·Channel 1-4 provide +48V phantom power supply , which is controlled by panel button switches.

Multiple Audio Modes

·USB output can be set in multiple audio modes to suitable for various applications.

Professional Reverb Effect

·Professional reverb function，which can simulate various sound effects.

Real-Time Monitor

·The MIX MINUS excludes the audio input of channel 1-4 from playing and monitoring locally.

Technical Specifications

Sample Rate: 24bit,48kHz

Frequency Respond: 20 Hz to 20 kHz +0/–1 dB

T.H.D. :<0.1%

Signal to Noise Ratio:90 dB Single channel max fader（A weighted）

Dynamic Range:100dB Single channel max fader（A weighted）

Common Mode Rejection Ratio：>70 dB @1 kHz

MIC Input Impedance: 3.3k Ω (XLR Balance); 1.8 kΩ（1/4″）

LINE Input Impedance: 10K Ω (1/4 ″)

Output Impedance: 150 Ω

Gain: 0 to 60 dB (XLR)

FOOT SW :REVERB ON/OFF

Phantom Power Supply:+48V

USB Audio: 2IN/2OUT compliant with USB audio class 2.0

Power Supply: DC 5V (1A)

Power Consumption: Up to 5W

Dimensions (mm):260(L)*230(H)*89(D)
