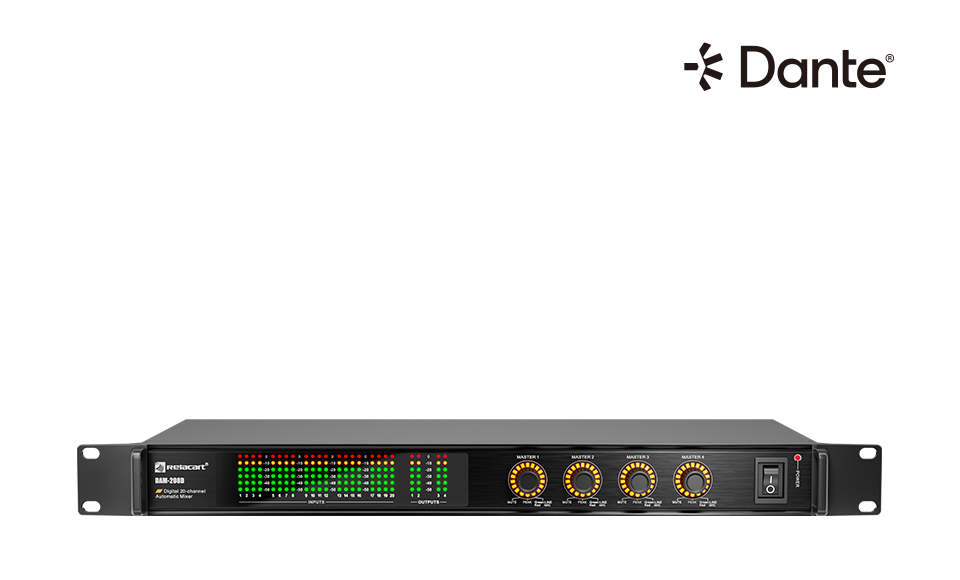

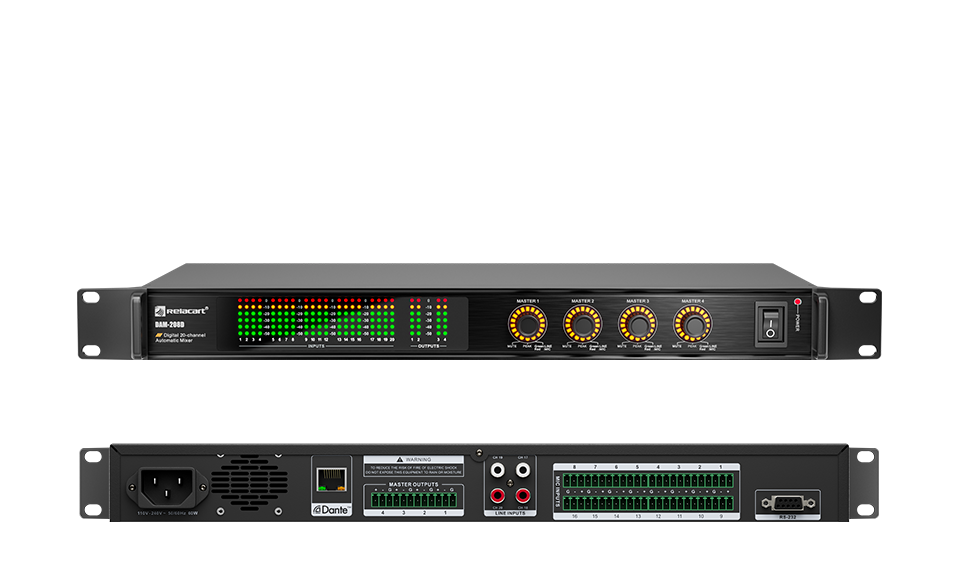

DAM-208D

Digital Automatic Mixer with Dante Interface

Product Description Performance Introduction Technical Specifications FAQ

Product Description

DAM-208D is a 20-input, 8-output, intelligent digital mixer that supports Dante protocol. Digital intelligent conference processor is the perfect combination of digital audio and digital control technology to high-performance DSP as the core, with dedicated control software, each channel can be set and adjusted in detail, comes with 20X8 matrix, support multiple levels , All intelligent conference management, can easily form a set of powerful, easy to operate digital intelligent conference system. .It is applicable to the high demand of court, business center, conference center, hotel and TV station.

Performance Introduction

Automatic sound cutting adjustment

The automatic sound valve adjustment can calculate the appropriate valve level using the powerful computing system of DSP digital algorithm according to the on-site environmental noise, and is suitable for any harsh conference environment. Finally, keep the time adjustable to ensure that your meeting is more smooth;

Digital processing

Full digital signal processing, built-in high and low pass filter, limiter, matrix, etc. Basic operation: after connecting the computer and cooperating with the special control software, each channel can be set and adjusted in detail;

Flexible expansion

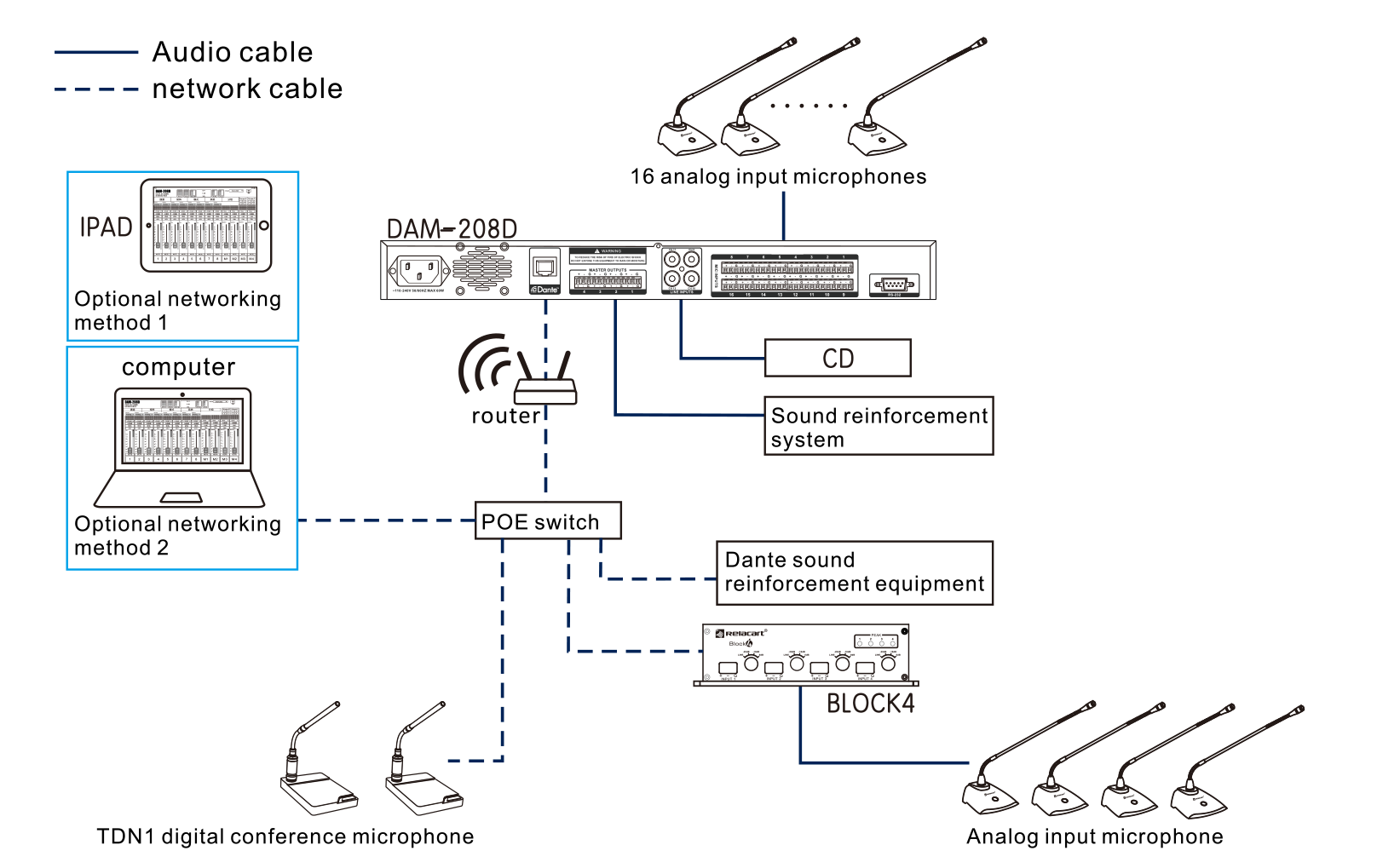

The built-in DANTE digital audio card can connect the mixer to any Dante device; Without software control, multiple DMC-500 mixer controllers can be connected to adjust the commonly used channel volume.

intelligent management

The host adopts TCP/IP connection mode, which can connect special software to realize remote control, remote diagnosis and upgrading of the conference system; The encoder with scale indication controls the output volume of four MASTER channels, and displays the output volume scale, mute indication, distortion indication, and output LINE/MIC indication respectively;

Technical Specifications

Dynamic Range (20 Hz to 20 kHZ, A-weighed, typical)：Analog-to-Analog : 100dB

Harmonic Distortion 1 kHz, +4 dBu out, mix output (MASTER) at +0 dB：<0.05%

S/N (22 Hz - 22 kHz, RMS, A-Filter)：118dB

Common Mode Rejection Ratio 150Ω balanced source, at 1kHz：>60 dB

Number of input channels：MIC * 8、 Line * 4、 Dante * 4

Maximum Input Level(Gain Max)：Mic: +6 dBV Line: +25dBV

Maximum Gain：Mic: +65db Line: +20db

Number of output channels：Analog x4、 Dante x 4

Maximum Output Level：Line(+0)：+21dbu MIC(-20)：+1dbu

Dante Interface：4x4

AD/DA Converter：24bit, 48KHz

Internal Processing：40-bit, floating point DSP

DSP functions：Input, output equalization, limiter, FBK, matrix control, threshold control, high and low pass filter

FRQ range：20hz-20khz

Phantom Power：+48V/12mA

Network Interface：10/100 Mbps Ethernet, Dante digital audio

Main Frame Size：EIA standard 1U

Dimensions：410mm x43mm x206mm

Weight：Approximately 2.7 Kg

Operating Temperature Range：0 ～ 40℃
