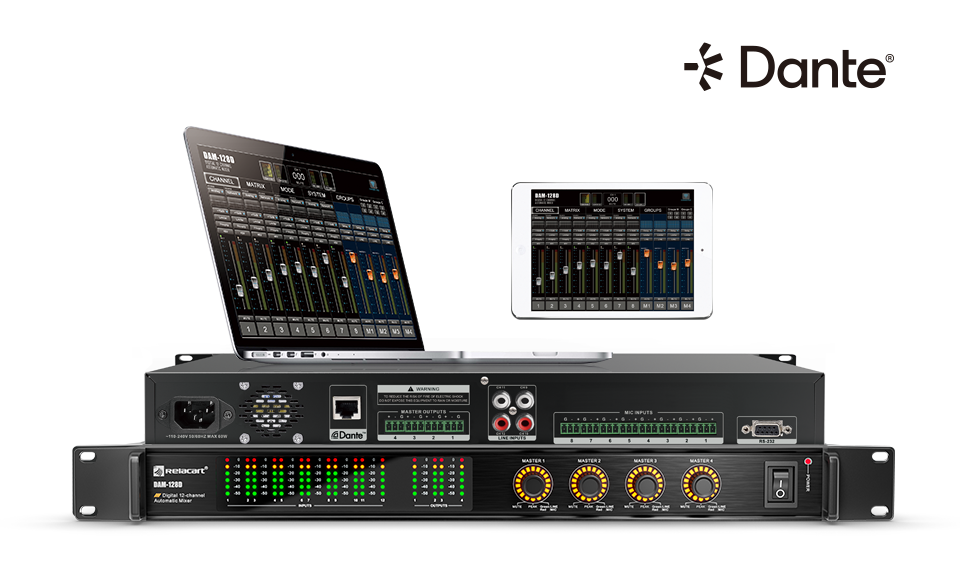

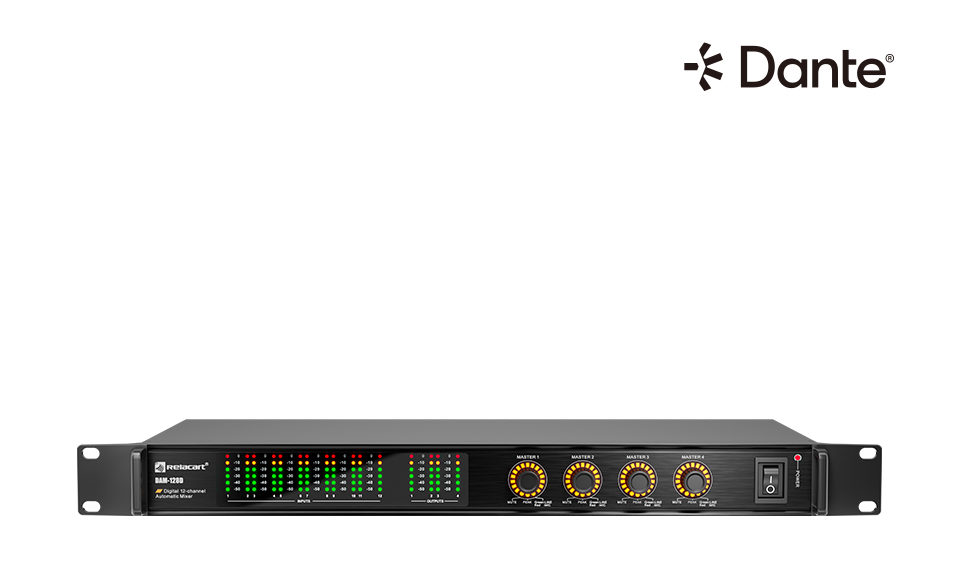

DAM-128D

Dante Digital Audio Protocol

12 channel input, 8 channel output, intelligent digital mixer supporting Dante protocol;

48V phantom power supply

48V phantom power supply is attached to the input channel; 4-channel linear input; 4-channel Dante audio or Dante microphone can switch input channels at will; Independent mute control and phantom power control;

Multichannel analog output

4-channel MASTER analog output, and support 4-channel Dante digital signal output at the same time; Each channel output is equipped with 31 segments of graphic equalization, which can be adjusted as required, and the LINE/MIC output level is switched; Limiter and howling suppression settings can effectively limit the output level and protect the next level of audio equipment or speakers;

DSP Digital Mixing Algorithm

It adopts 40 bit floating point operation, high-speed DSP chip with operating frequency>450MHz, and digital audio automatic mixing algorithm independently developed by Relacart core technology team, which always maintains the style of showing real sound; And supports Dante microphone mixing

Automatic valve level regulation

The automatic sound valve adjustment can automatically calculate the appropriate valve level by using the powerful computing system of DSP digital algorithm according to the on-site environmental noise, which is suitable for any harsh conference environment; Finally, keep the time adjustable to ensure that your meeting is more smooth;

Independent working channel

It has 12 independent input working channels, and each channel can adjust the input gain independently.
