CS-102

Wired Audio Conference Discussion System

Inquire Now Next Product

CS-102

Product Description Performance Introduction Technical Specifications Components Accessories FAQ

Product Description

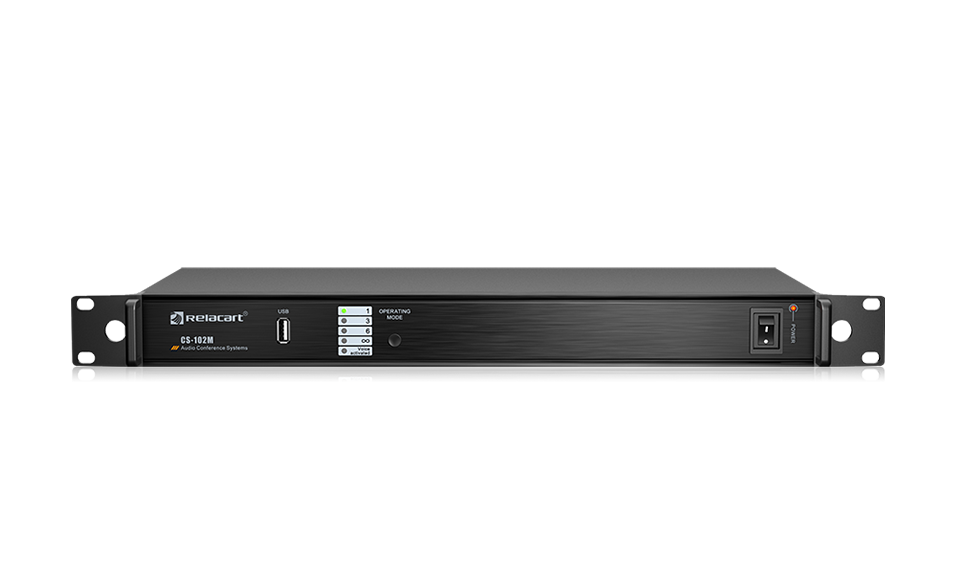

The CS-102M is a simple, affordable discussion audio conferencing system. CS-102M central controller is the control center of the whole system, including conference mode selection, external output sound reinforcement level, line input function, etc. The system can be connected to 45 microphone units, with voice input automatic gain, howling suppression, FIFO and voice control functions; it can be connected to an external power amplifier for sound reinforcement; it can be directly installed on an EIA standard 1U rack, with a 10 Meter connection cable, with auxiliary audio signal input and output function, easy to connect other devices.

Performance Introduction

Phone Coupler

Connecting the phone coupler can be used directly for remote teleconferencing.

Extensive Expansion

With a recording output to connect a recorder, all meeting recording functions are completely recorded and saved, and an external audio sound reinforcement device can be connected.

Aviation Cable Hand in Hand Connection

It adopts the hand-in-hand connection method of anti-drop aviation cable, which is simple, reliable and stable.

Automatic Audio Gain

With automatic gain audio processing circuit, it can effectively prevent the generation of feedback and improve the clarity of the whole system.

Network Interface

Can use a network cable to connect a wired microphone that supports a network interface.

Priority Choice

The CS-102C chairman unit has a priority selection button, which is used to control the function of the speech sequence, and can cancel the speech of all representative units.

Technical Specifications

Main Frame Size：EIA standard 1U
Power supply voltage：AC 100-240V 50/60Hz
AC 100-240V 50/60Hz：60 W
Frequency Response：65 Hz - 15 KHz
Signal-to-noise ratio (S/N)：>85 dB
Distortion (T.H.D)：<0.7%
Audio input: LINE IN：0 dBV (f=1 KHz, THD<0.3%)
Audio output: XLR：-10 dBV、6.3mm：-15dBV、RCA：0dBV
Connecting cable：Anti drop 9P aviation cable/Cat5 typeB network cable
RS-232 control interface：can be connected to intelligent central control and camera tracking system
Dimensions (mm)：410(W) x 43(H) x 206(D)
Weight：about 2.3kg
