CS-102 BC/BD

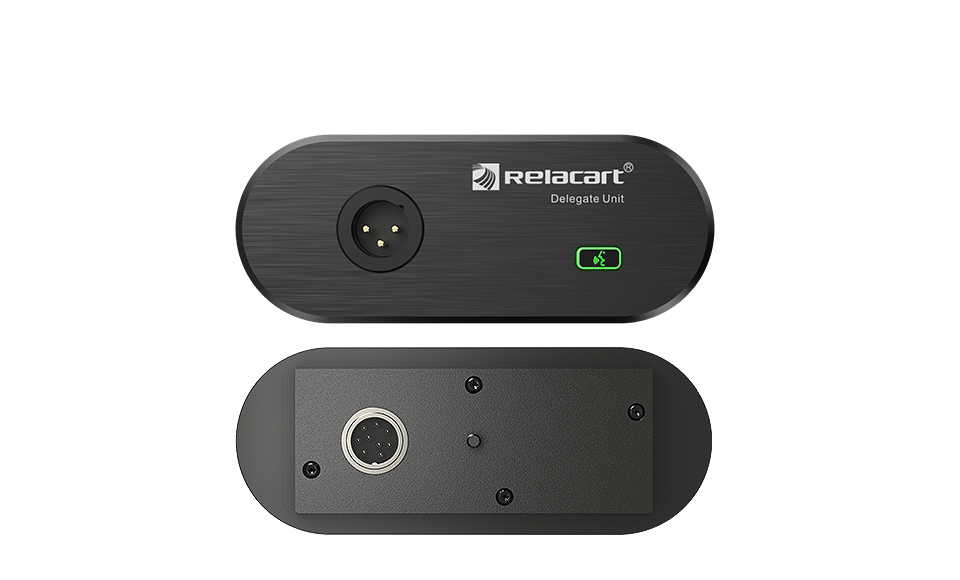

Professional Wired Conference Discussion System Embedded Conference Unit

Inquire Now

Product Description Technical Specifications Components Accessories

Product Description

CS-102 BC/BD wired professional digital conference and discussion system embedded conference unit is an economical embedded microphone with metal base suitable for various conference scenarios

Technical Specifications

Power supply voltage：DC 24 V (host power supply)
Power consumption：0.5 W
Polar Pattern：Cardioid
Frequency Response：65 Hz - 18 KHz
Unit interface：anti-drop 9-pin aviation plug
Microphone type：condenser cardioid
Distortion：<0.7%
Sensitivity：-20 dBv at 1V at 1Pa
Base Dimensions (mm)：132(W) x 52(H) x 90(D)
Microphone size (mm)：420 (length)
Weight: Embedded base：about 343g
Embedded microphone rod：about 163g

Components

Wired conference central controller

Chairman Unit

Represents units

Chairman unit

Accessories

Gooseneck Microphone CF-100

Gooseneck Microphone CF-100

Detachable Square Microphone

Detachable Square Microphone

Detachable Square Microphone

Detachable Square Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

Gooseneck Microphone

9 Pins Connecting Cable for Conference System

9 Pins Connecting Cable for Conference System
