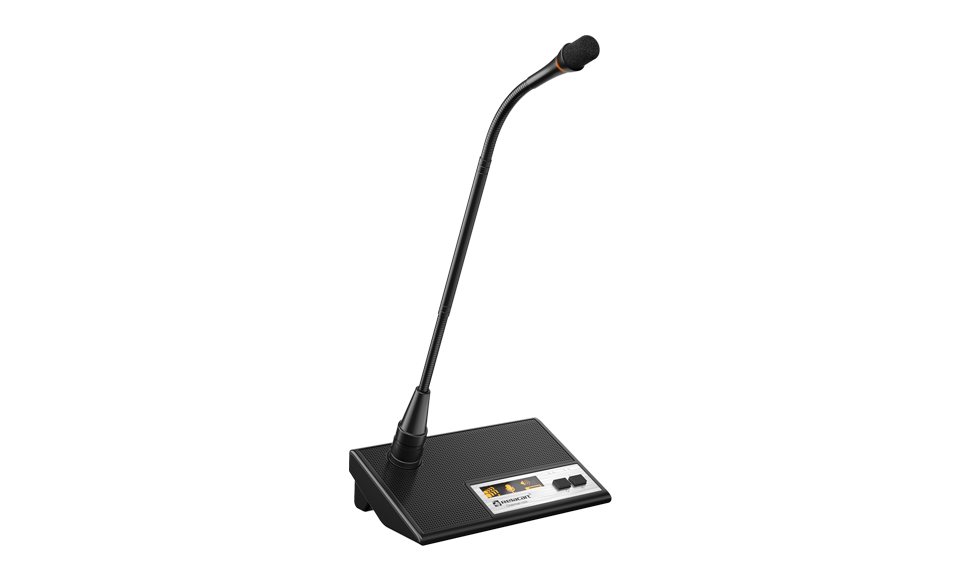

CS-302 C

Chairman Unit

Inquire Now Next Product

CS-302 C

Product Description Technical Specifications

Product Description

CS-302C adopts the newly developed voice control mode, so that participants can start the microphone unit to speak directly without manual operation. It is simple to use and fully applicable to various conference occasions.

Technical Specifications

Frequency response: 50Hz-18KHz

Sensitivity: -30dB+/-3dB(0dB=1V/Pa,f=1KHz)

Maximum input sound pressure level: 105dB(THD＜5%, f=1KHz)

Signal to noise ratio (A weighted):＞100dBA（THD＜1%，f=1 KHz）

Distortion：＜0.1%

Power supply: 24V DC(supplied by the receiver)

Maximum power of speakers: 1.5W

Power consumption: 0.8W-2.5W

Phone connector: 3.5mm jack

Screen type: OLED

Unit interface: Anti drop 9P aviation plug

Weight: 950g

The length of microphone : 340mm/420mm/480mm

The size of the microphone base: 182mmx 51mm x 110mm

Color: nickel black
