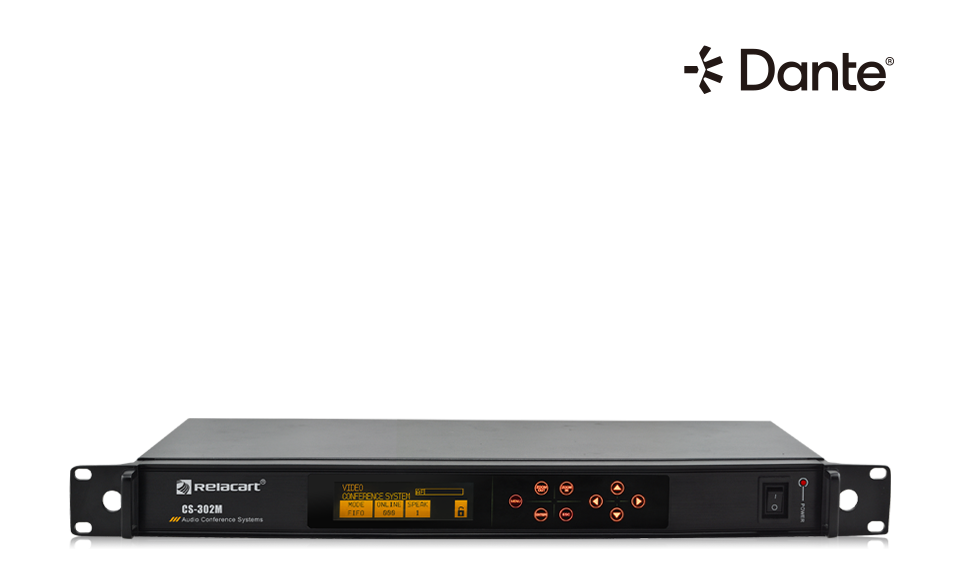

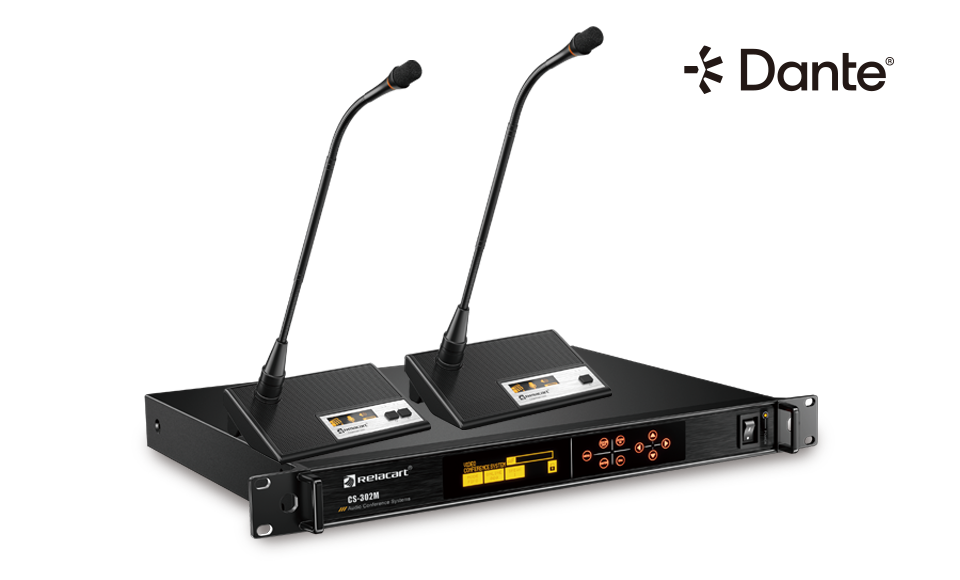

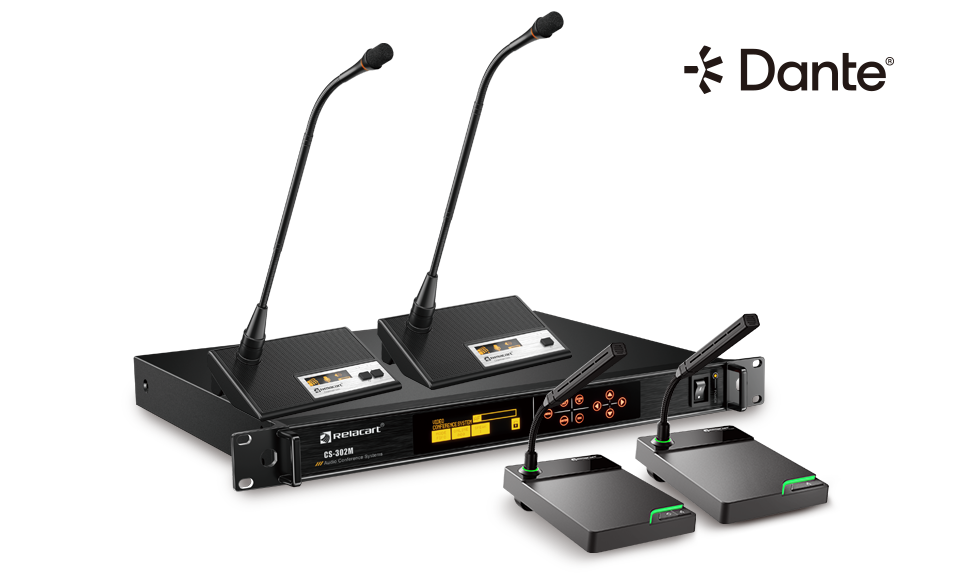

EIA standard 1U metal, with aluminum alloy panel, is professional and elegant.
Adopt the OLED display, can display the microphone status, operating mode, central controller status, the number of speaker, etc.
Chassis specifications: EIA Standard 1U
Supply voltage: 90-264V AC or 127-370V AC，47-63Hz
Static power consumption:6W
Rated power: 75W/24V
Maximum power: 100W/24V
XLR balances carnon maximum output level: 14.6dBu
Maximum output level of the 6.35mm balance socket: 14.6dBu
RCA lotus socket maximum output level: 9.8 dBu
RCA lotus socket maximum input level: 3.2 dBu

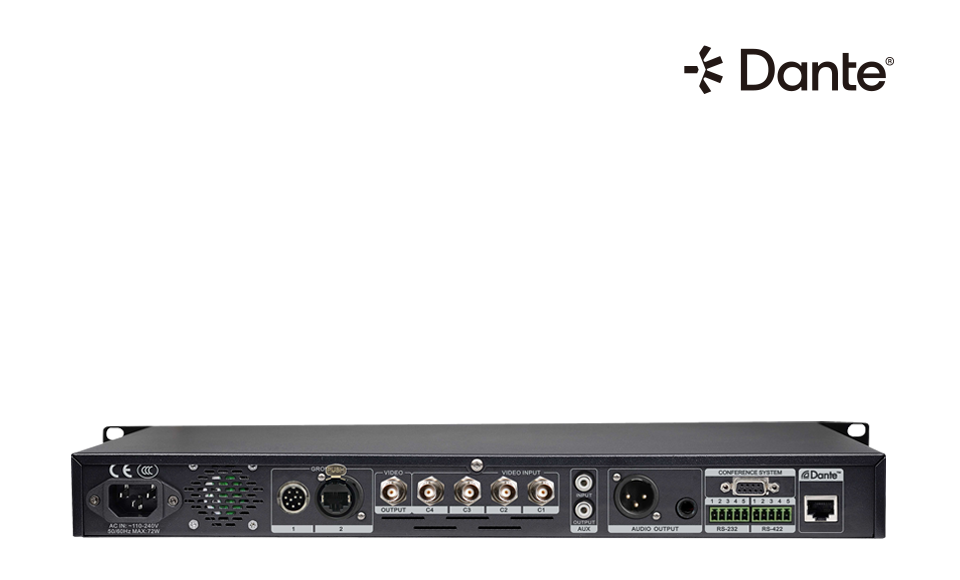

Conference unit extension: Anti drop 9P aviation plug x 1、Network port (female) x1
Video input port: BNC x 4
Video output port: BNC x 1
Video interface impedance: 75Ω
9 pin serial port control interface: DB9 Female plug x 1
Rs-232 control protocol interface：5P Phoenix terminal X 1
Rs-422 control protocol interface：5P Phoenix terminal X 1
Dante interface: Cat5 typeB network port
Audio output: XLRM x 1, 6.35mm jack x 1, RCA Lotus x 1
Audio input: RCA Lotus x 1
Screen type: OLED
Key mode: touch style
Weight: about 2.3kg
Dimension (mm): 410 (W) x43 (H) x206 (D)
