R-20U

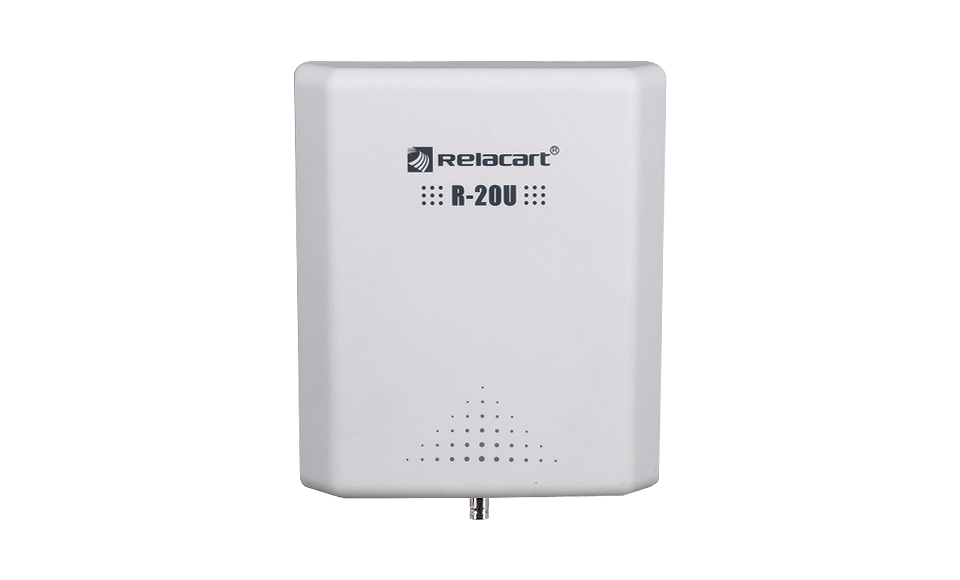

Wide-band Directional Antenna R-20U

Product Description Technical Specifications

Product Description

The R-20U directional antenna provides enhanced signal pickup for UHF wireless microphone systems operating in the 600-900MHz frequency range, and is compatible with new foreign telecommunications regulations.Lightweight, structurally durable, UV- degradable ABS cover sheets that provide long life and consistent performance under harsh operating conditions.

Technical Specifications

Frequency Range: 600MHz-900 MHZ

Gain: 7dBi

Impedance: 50 Ω

Horizontal flap width: 80 °

Vertical flap width: 60 °

Polarization: Vertical

VSWR: ≤ 2.0: 1

Connector: BNC

Dimensions (mm): 210(H) X 180(W) X 44(D)

Weight: 300g
