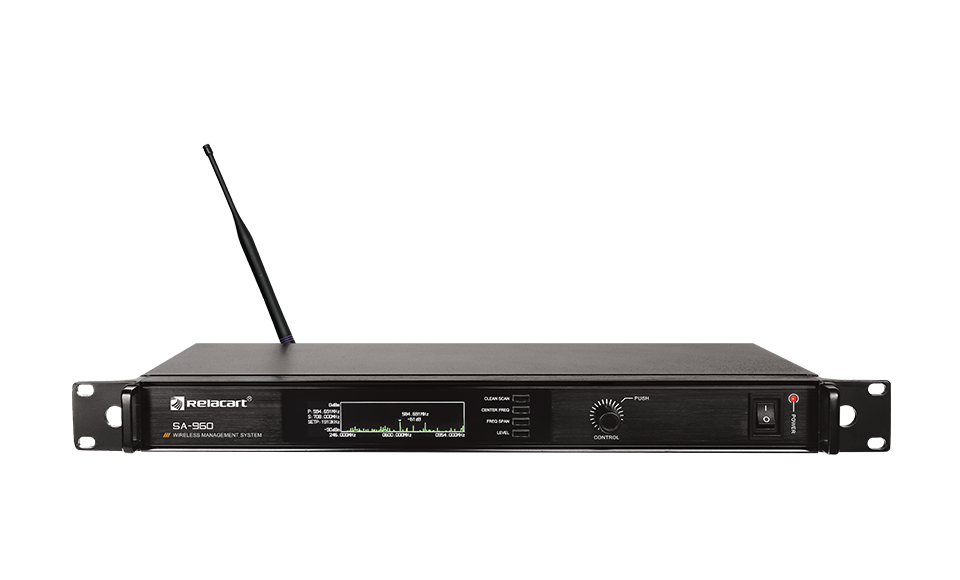

SA-960

Spectrum Analyzer

Product Description Performance Introduction Technical Specifications FAQ

Product Description

SA-960 is a spectrum analyzer specially developed for wireless frequency management. The frequency is visualized and controllable,

creating a stable wireless working environment for the scene.The ultra-wideband scheme is adopted, and the frequency scan is up to 960MHz, the on-site interference frequency is clear.

Performance Introduction

instant signal reception

Receive the signal from the field radio.

Display sweep function

Real-time monitoring of wireless frequency status.

Technical Specifications

Frequency detection range: 240-960MHz

Step frequency: 25KHz-5MHz

Amplitude range: +10~-110dBm

Interface: BNC

Power supply: DC 12V /1000mA

Chassis Rules: EIA Standard 1U

Dimensions (mm): 410(W) x 206(D) x 43(H)

Weight: about 2.2Kg
