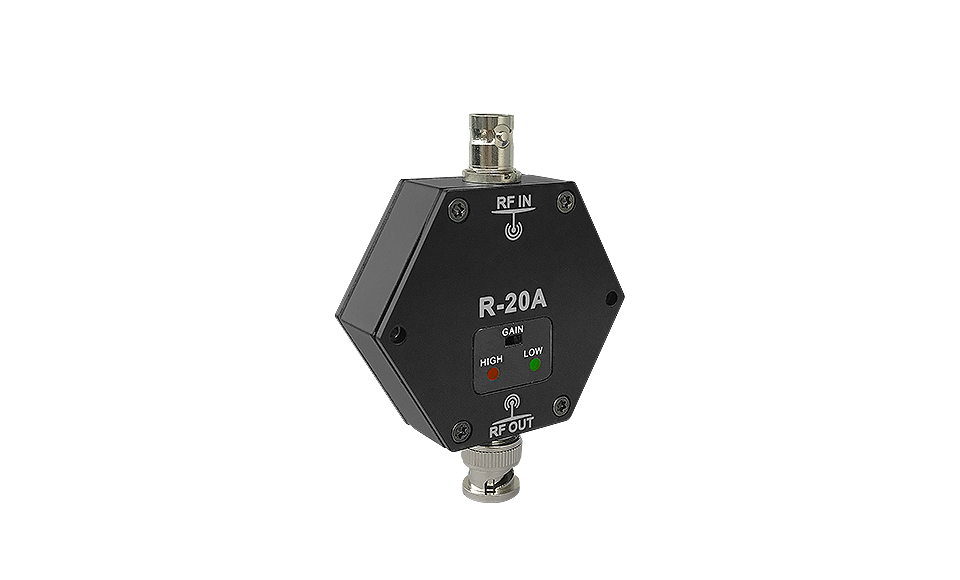

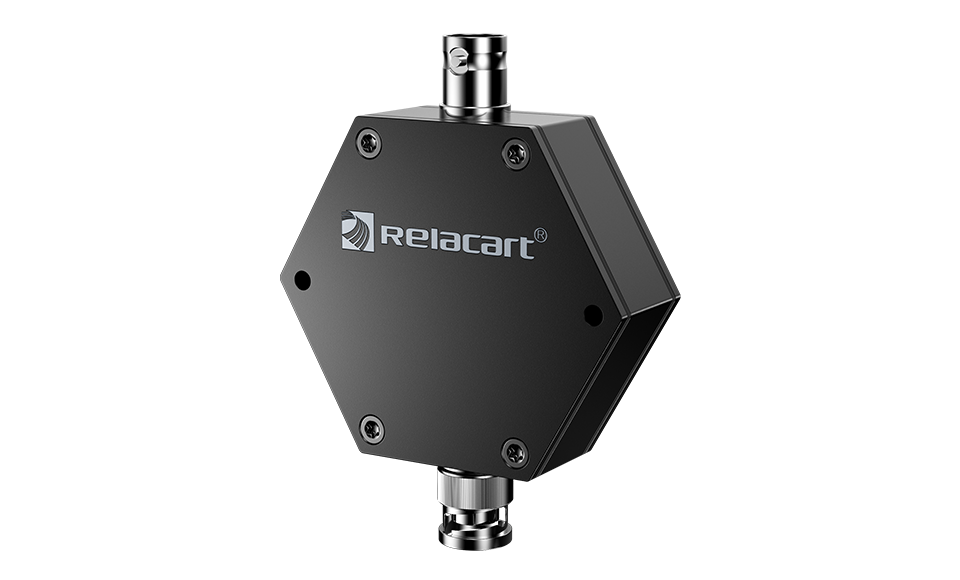

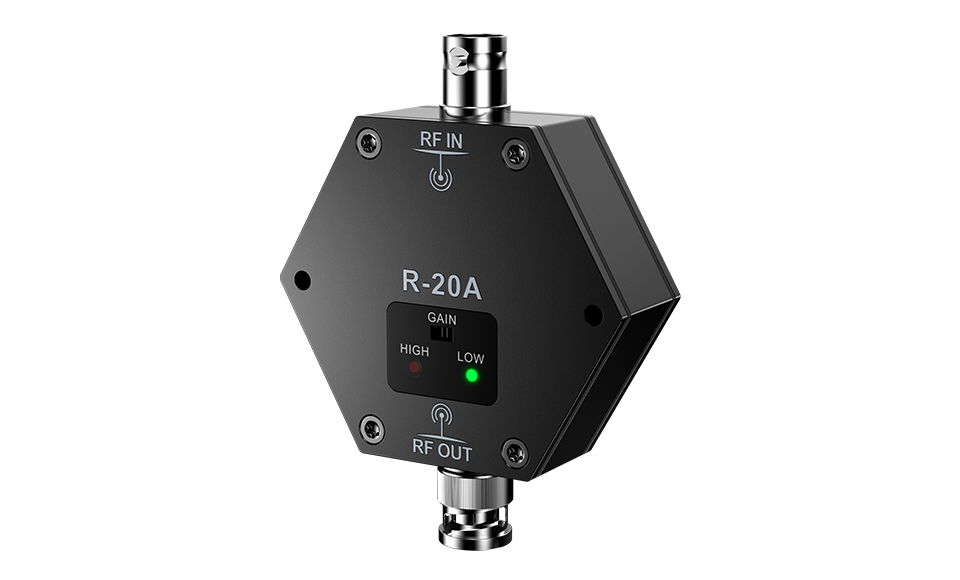

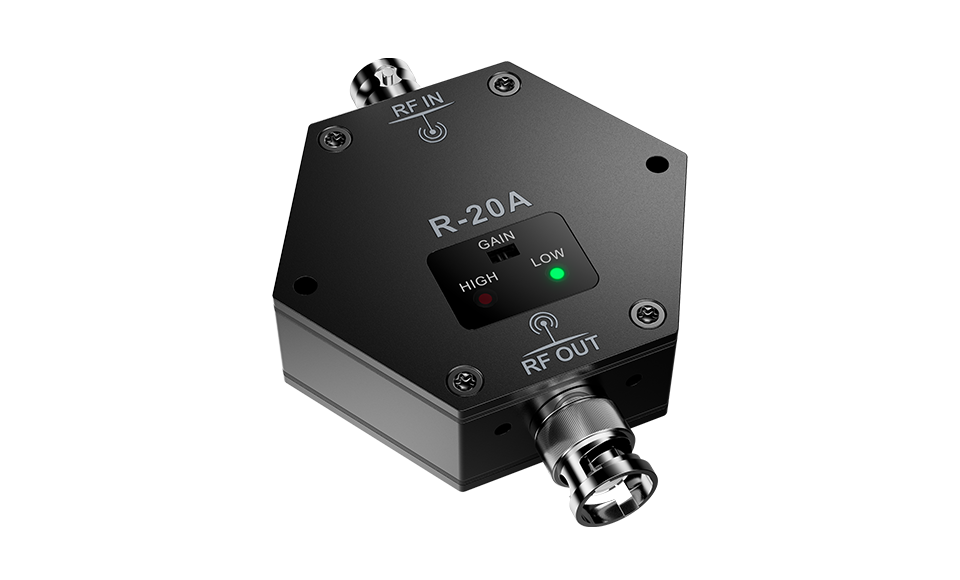

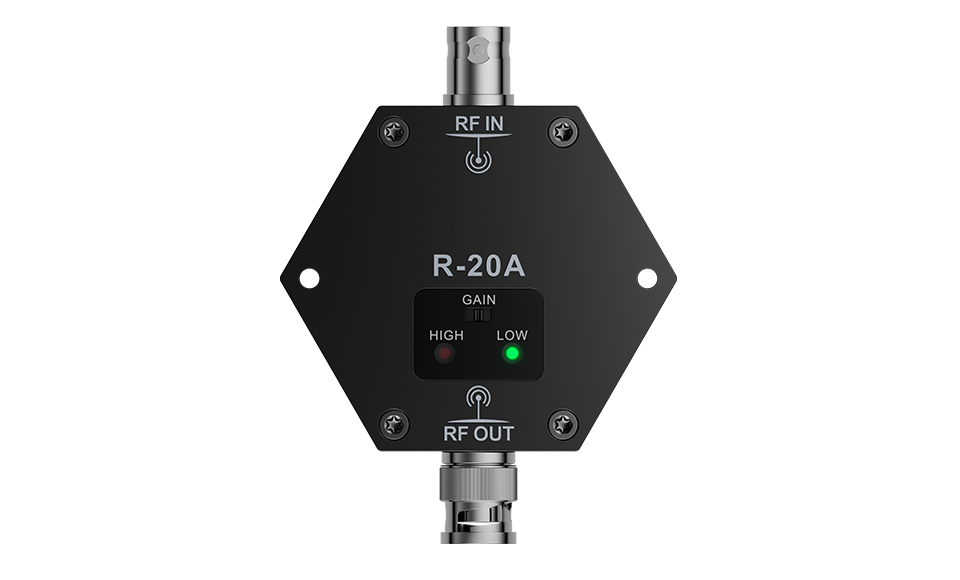

R-20A

Antenna Booster

Product Description Technical Specifications

Product Description

R-20A provides increased gain for receiving antennas, maintains an effective and reliable signals and reduces chance for signal dropouts under difficult RF conditions. Compact and lightweight, R-20A is integrated into a small package and can be concatenated in the middle of the connecting cable.

Technical Specifications

Frequency range: 450MHz-950MHz

Gain adjustable: 5dB and 15dB

VSWR: input/output≦3: 1

Connection terminal: The input interface is BNC female, the output interface is BNC male

Noise: 3dB (typ.)

Power supply: DC8V, 80mA

Working temperature: -20°～50°C

Dimensions: 87mm(L)x65mm(W)x20mm(H)

Net weight: about 85g

Package: Black Anodized Aluminum
